Meadows Hammer Mills #5

$3,981.50$8,395.50

  • Time-proven design
  • Heavy steel construction

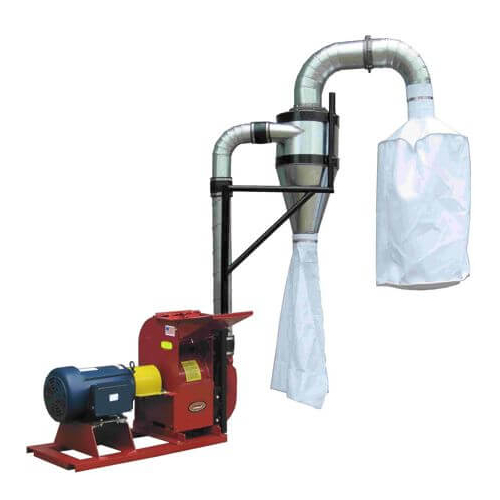

  • Optional pneumatic material handling
  • Made in U.S.A.

**Shipping not included in cost!!! For freight quote please call 800-522-0517

Plant Based Pros is an Authorized Retailer of Meadows Mills products.

Items purchased from Plant Based Pros:

  • Are brand new and in original packaging.
  • Are covered by the full manufacturer warranty.
  • Qualify for manufacturer service and support.
  • Questions? Call  800-522-0517
Clear

Description

Meadows hammer mills combine practical design and proven reliability with simplicity and economical cost. The Meadows hammermill has been in continuous production for over forty years. They’re in use across the U.S. and around the world, in applications ranging from processing grain for livestock feed to grinding glass bottles for recycling.

The Meadows hammermill for sale here operates by impact action and will pulverize most dry, free-flowing materials. Material fed into the hammer mill from the top falls into the grinding chamber. The material is contacted by a series of hardened steel hammers rotating at high speed. The material is ground by repeated contact with these hammers, contact with the walls of the grinding chamber, and particle to particle contact. The material remains in the hammer mill grinding chamber until particles become small enough to escape by passing through the perforated screen that covers the bottom half of the grinding chamber. Interchangeable hammer mill screens are available with hole diameters from 1/64″ to 2″, to allow for fine or coarse grinding of most products.

Bottom-discharge (gravity discharge) hammer mills may be used when the product to be processed will be processed to a consistency 1/16” or larger. Mills must be equipped with a material handling fan (air conveyor) when the product will be processed to a consistency 3/64” or smaller. The bottom-discharge hammer mills are limited to the following interchangeable screen sizes; 2”, 1-1/2”, 1”, 3/4”, 5/8”, 17/32”, 1/2”, 3/8”, 11/32”, 5/16”, 1/4”, 3/16”, 5/32”, 1/8”, 3/32”, 5/64”, and 1/16”. Screens cost $99 each for sizes 3/16″ to 2″. Screens cost $200 each for sizes 1/64″ to 5/32″, because they require a backing plate.

Mills equipped with a material handling fan may utilize the screen sizes listed above, plus 3/64”, 1/32”, and 1/64”. The screen sizes listed are the diameter of the perforation measured in inches. The output volume of the hammer mill is determined by screen size, shaft speed (normally 3,600 rpm), and configuration of the hammers, which can be set up to suit your application.

The Meadows hammer mill may be belt driven or direct driven to fit your needs. The #5 hammermill grinder with no motor/starter is priced for a belt drive set-up and includes: mill, belt guard, magnet on in-feed slide, grease gun and 10 tubes of food grade grease. The #5 mill with a motor/starter is priced for a direct drive set-up and includes: mill, motor, magnetic starter, direct drive couplers, coupler guard, amp meter, magnet on in-feed slide, grease gun and 10 tubes of food grade grease. Magnetic motor starters are shipped unmounted and require wiring by local qualified electrician. Crate fee for the #5 mill with no air conveyor is $100. Crate fee for the #5 mill with air conveyor is $150. Price is FOB. For a shipping quote, please call or e-mail with your city, state and zip code. Engineering staff is also available to assist in designing a hammer mill system to efficiently handle your product, whether you need a complete system or want to fit a new piece of equipment into your existing layout. We also offer mechanical or pneumatic conveying equipment, collectors and piping systems.

Free test grinding: Plant Based Pros offers many models of hammer mills for sale. We have extensive milling experience and can make recommendations for a wide range of grinding needs. We can also test mill samples of your materials; please call 800-522-0517 or email us at admin@plantbasedpros.com to make arrangements.

Model

#5 Hammer Mill

Output rate

400-1200 lbs/hr

HP required

7.5-15 HP

RPM

3600

Mill-only weight

170 lbs

Std. inlet opening

9″ x 6″

Screen size

9″ x 17″

Hammer count

24

Hammer size
(H x W x D)

3/16″ x 4″ x 1″

Rotor disks

3-1/4″ Square

Rotor swing

10″

Shaft size

1″

PRICING FOR MEADOWS #5 HAMMER MILL

Pricing does not include screens, crate fee or shipping costs. Price is based on a direct drive system.

No Air Conveyor

With Air Conveyor

No Motor/Starter

$3,891.50

$7,199.50

With Motor & Starter
5HP 220V

 $4,432.50 (1PH)
$4,082.50 (3PH)

N/A

With Motor & Starter
10HP 220V

$4,842.50 (1PH)
$4,422.50 (3HP)

 $8,150.50 (1PH)
$7,730.50 (3HP)

With Motor & Starter
15HP 3HP

N/A

$8,395.50 (208V)
$8,315.50 (230V)
$8,075.50 (480V)

Pricing subject to change. Please call to confirm.

Meadows Hammer Mill Grinding Versatility

Free test grinding of your product is available. (Call or send us an email to inquire about testing)

  • Grain
  • Herbs
  • Spices
  • Fibrous Plant Materials
  • Seed Pods
  • Wheat
  • Corn/Maize
  • Beans
  • Peppers
  • Ginger Root
  • Dried Fruits
  • Coffee Beans
  • Coconut
  • Cranberry Pellets
  • Materials for Recycling
  • Tubers including Taro and Cassava
  • Fibrous Plant Materials
  • Tea Leaves
  • Mesquite Beans
  • Bone
  • Chick Peas/Garbanzo Beans
  • Friable Minerals/Rock/Stone
  • Cannabis/Hemp/Medical Marijuana
  • Computer/Electronic Components
  • Plant Buds
  • Wood Chips/Bark
  • Particle Board
  • Plastics
  • Crickets/Insects
  • Glass/Bottles
  • Salt
  • Crab Shells
  • Clam Shells
  • Oyster Shells
  • Fish Meal
  • Gypsum
  • Rock Salt
  • Compost
  • Dried Manure
  • Cubed Roots
  • Clumped Dry Substances
  • Many more materials
BrandMeadows Mills
ColorRed
FinishPainted
Housing MaterialSteel
Duty Cycle100%
OriginUSA
Commercial WarrantyYes
Warranty Length1 year motor/90 day mill

Additional information

Air Converyor Options

No Air Conveyor, Air Conveyor Required

Motor and Starter Options

No Motor/Starter, (5HP 220V) Motor & Starter, (10HP 220V )Motor & Starter, (15HP 3HP) Motor & Starter
