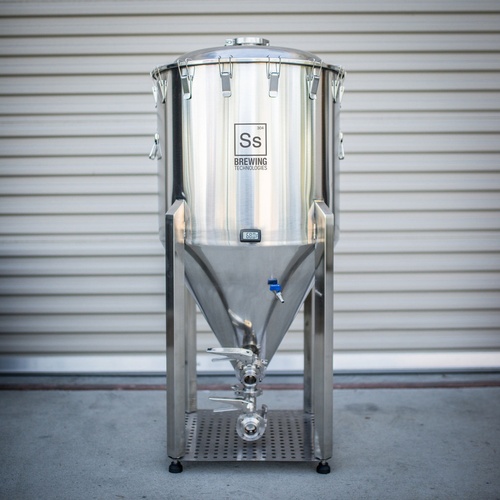

1 bbl – Chronical Brewmaster Edition Fermenter



  • 41 Gallon Capacity (+2.4 Gal in lid)
  • 304 Stainless Steel

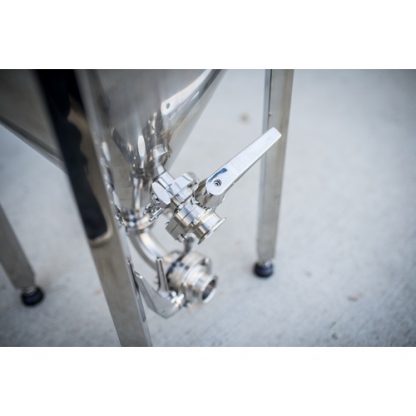

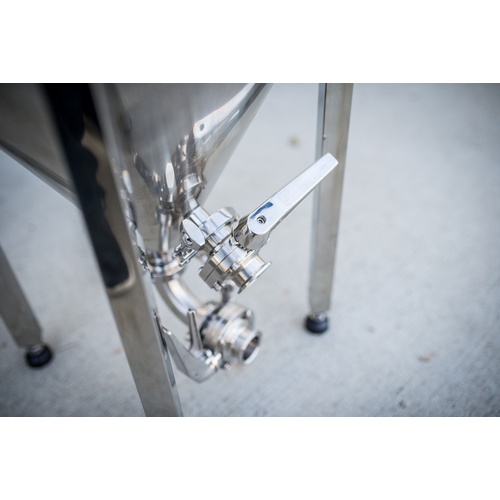

  • Custom Ss squeeze trigger butterfly valves
  • 3″ TC port on lid/ top for dry hopping/CIP
  • Includes 3″ TC clamp, gasket, 3″ TC cap
  • 3″ cap on lid has 17 mm hole for airlock / blow off
  • Optional Stainless Steel blow-off cane (shown)
  • Optional 3″ TC CIP spray ball attachment
  • Standard sampling valve included with unit

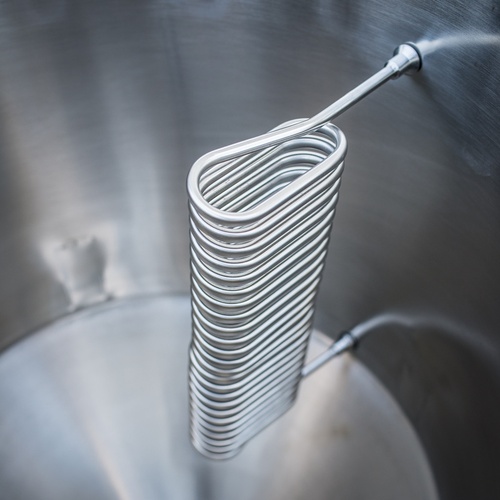

  • 304 Ss chiller coil weldlessly mounts inside unit!
  • Chiller coil is included standard in the kit !

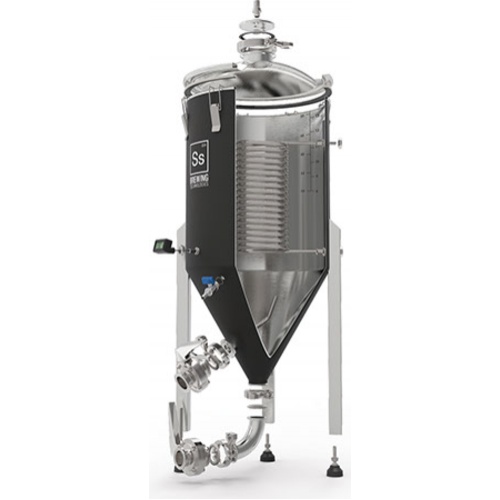

  • Neoprene insulation jacket standard in kit!
  • Allows you to retain domed lid for transfers
  • 1.5″ TC flanges on racking/ dump ports
  • Rotatable TC racking arm included
  • Comes w/ weldless thermowell
  • Includes LCD temp gage standard
  • Sanitary welds and beautiful polish finish!
  • Brewer’s grade silicone gaskets
  • Electrically etched volume markings
  • Volume markings in both gals / liters
  • Threaded inserts on leg bottoms (3/8″)
  • 48″ Height x 22″ Wide, 225 LBS
  • SKU FE831

Out of stock


This fermenter has several features you should compare to competitive offerings including a domed lid with a 3″ TC port on the top, a standard fitted FTSs chiller coil that installs inside the fermenter body (not the lid), custom tailored neoprene jacket included, an included sampling valve, internal electrically etched gallon markings, rotating racking arm (included), custom designed butterfly valves, and like all of our fermenters this 1 bbl Chronical will come with a beautiful polished finish that would look at home in a museum or art gallery let alone your brewery! These are gorgeous pieces of craftsmanship!

And with the 3″ TC lid port you will now be able add some great upgrade options such as a CIP assembly and a stainless blow-off cane.  We’ll also offer a 3″ TC to 1.5″ TC reducer so you can leverage existing 1.5″ TC fittings.  The sky is the limit with these fermentors and you aren’t going to find a more compelling set of standard features not to mention a nice host of optional upgrade features you can bolt on later!

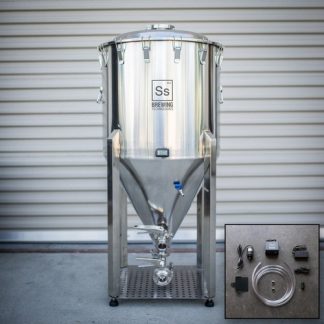

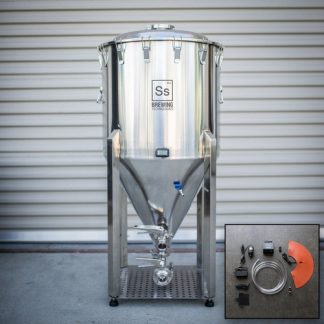

Note: This tank does not come with an FTSs package. These are not sold individually and must be purchased alongside the tank as FE831A or FE831B.


304 Stainless Steel

41 gallon capacity

22” Diameter

48” Height
