Advance Tabco 93-82-40-36L Description

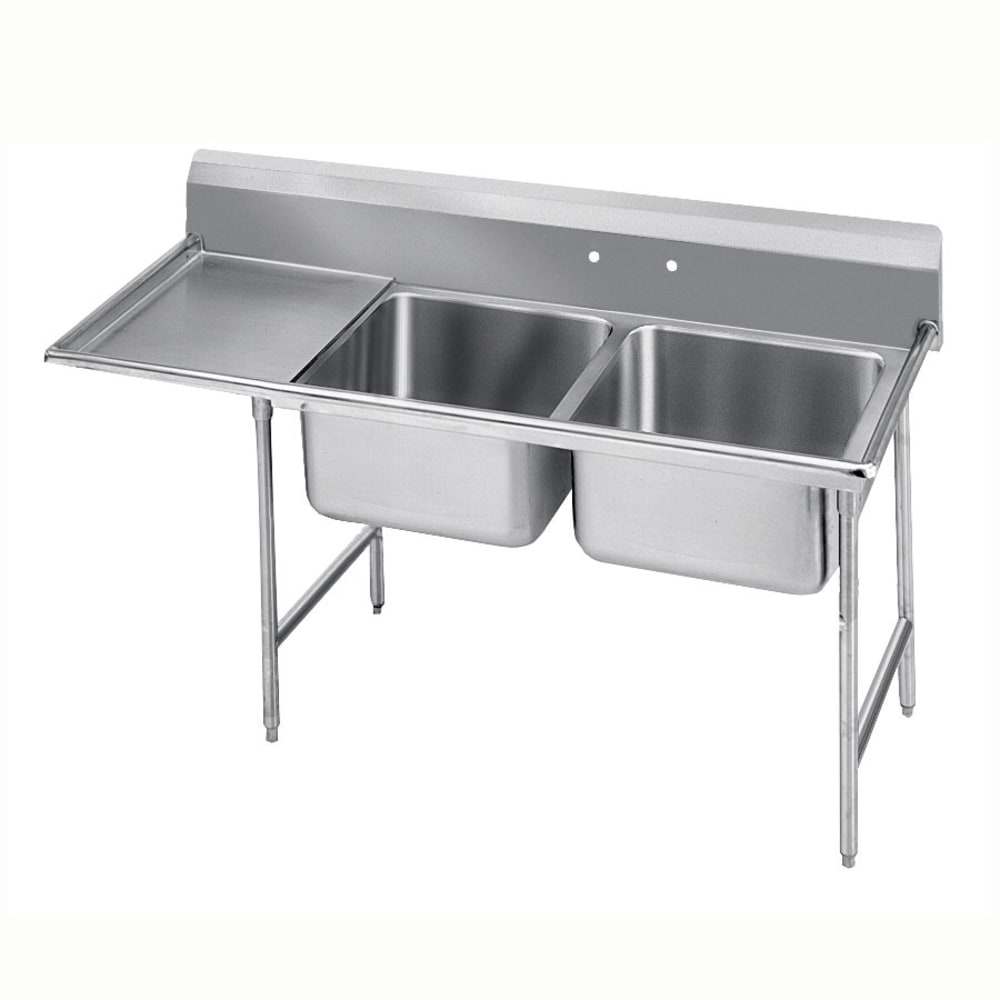

This Advance Tabco 93-82-40-36L Regaline sink has two compartments with one drainboard on the left. The one-piece, seamless, deep-drawn sink bowls have a 3-inch liberal radius. With the 20-inch by 28-inch sink compartments, 12-inch water level, and 15-inch flood level, this unit is best used as a pan sink. Since the drainboard is 36 inches wide, two sets of legs are supplied for support. The placement of these legs ensures stability and provides direct support of the load requirement for the entire sink. The entire sink is TIG welded, a versatile technique that produces the highest quality welds, and the welded areas are blended to a satin finish to match the surfaces next to them. The sink’s gussets have been welded to a die-embossed reinforcing channel to carry tension.
Product Details
- 16-gauge, 304 stainless steel construction
- 8-in.-high backsplash
- 12-in. water level
- 15-in. flood level
- Easy installation with tile edge
- 2 sets of legs supplied for support
- 15/8-in.-dia. stainless steel tubular legs
- Stainless steel gussets and channels on legs
- Legs have 1-in. adjustable stainless steel bullet feet
- 8-in. centers on faucet holes (faucets not included)
- Water supply inlet is 1/2-in. IPS cold and hot
- Waste drains are 11/2-in. IPS stainless steel basket type, located at center of sink bowl
Dimensions
- Bowls: 20 in. L x 28 in. W x 12 in. D
- Overall: 84 in. L x 36 in. W x 42 in. H
From The Manufacturer
Regaline Sink, 2-compartment, with left-hand drainboard, 28″ front-to-back x 20″W sink compartment, 12″ deep, with 8″H backsplash, stainless steel open frame base, side crossrails, 36″ drainboard, 1″ adjustable bullet feet, 16 gauge 304 stainless steel, overall 35″ F/B x 84″ L/R, NSF
