Description

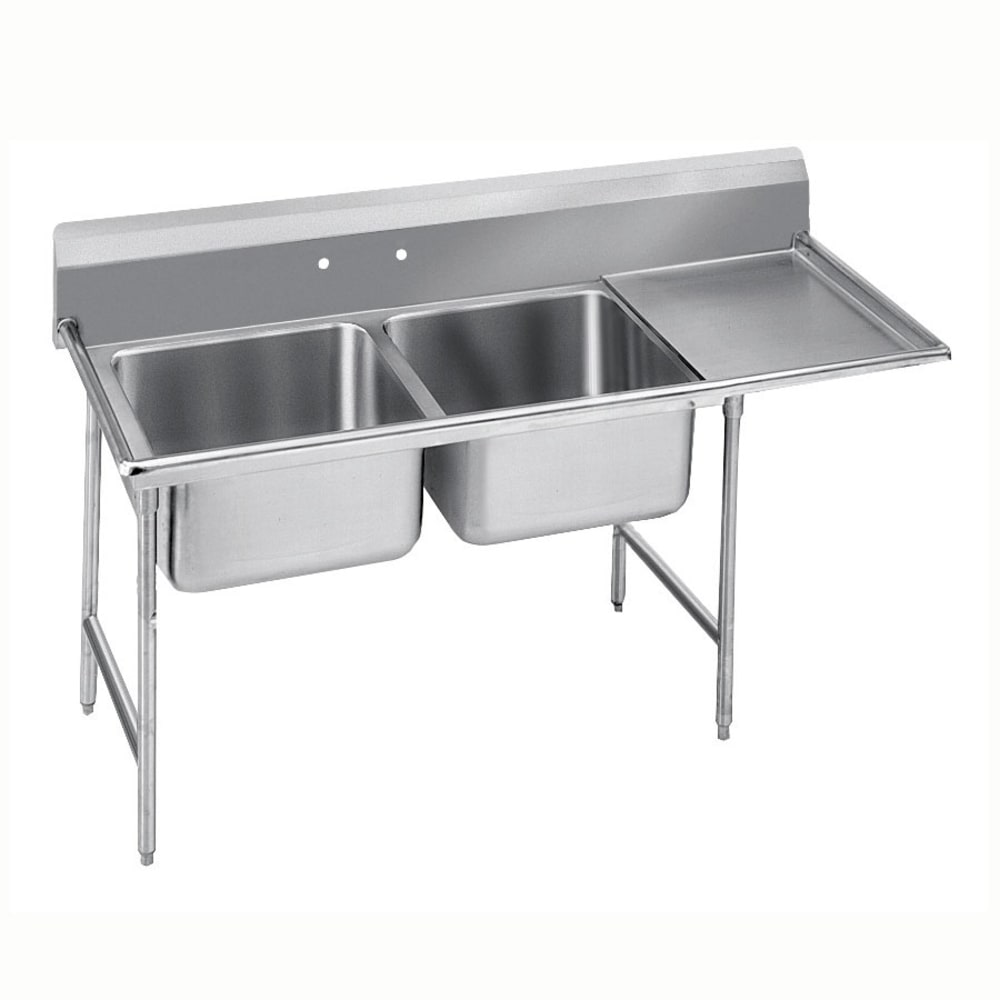

Advance Tabco 93-82-40-36R
The Advance Tabco 93-82-40-36R is a Regaline Sink that features one-piece, deep-drawn sink bowls with an 8-inch backsplash and an integral drainboard located on the right side. Both sink bowls have large 3-inch radius corners. The welded leg assembly placement provides stability and ensures support of the column load requirement for the whole unit. With the legs made of stainless and reinforced with stainless steel gussets, channels, and bullet feet, this unit is rust resistant. Faucet holes are on 8-inch centers, but the faucets are not included. However, the 11/2-inch IPS S/S basket waste drains, located in the center of the sink bowl, are included.
Product Details
- 2 sets of legs supplied for support
- 36-in. right drainboard
- Supply is 1/2-in. IPS hot and cold
- Faucet holes are on 8-in. centers (faucets not included)
- 11/2-in. waste drains, IPS S/S basket type included
- Recommended use as pan sink
- 12-in. water level
- 15-in. flood level
- Entire unit is TIG welded
- Welded areas are blended to a satin finish to match surfaces
- Gussets are welded to a reinforcing, die-embossed channel
- 16-gauge, 304 stainless steel construction
- 8-in.-high backsplash
- 15/8-in. tubular stainless steel legs
- Stainless steel gussets and channels on legs
- 1-in. stainless steel, adjustable bullet feet on legs
Dimensions
- Bowls: 20 in. L x 28 in. W x 12 in. D
- Overall: 84 in. L x 36 in. D x 42 in. H
From The Manufacturer
Regaline Sink, 2-compartment, with right-hand drainboard, 28″ front-to-back x 20″W sink compartment, 12″ deep, with 8″H backsplash, stainless steel open frame base, side crossrails, 36″ drainboard, 1″ adjustable bullet feet, 16 gauge 304 stainless steel, overall 35″ F/B x 84″ L/R, NSF
*Image may not depict product color, inclusions or accessories.
