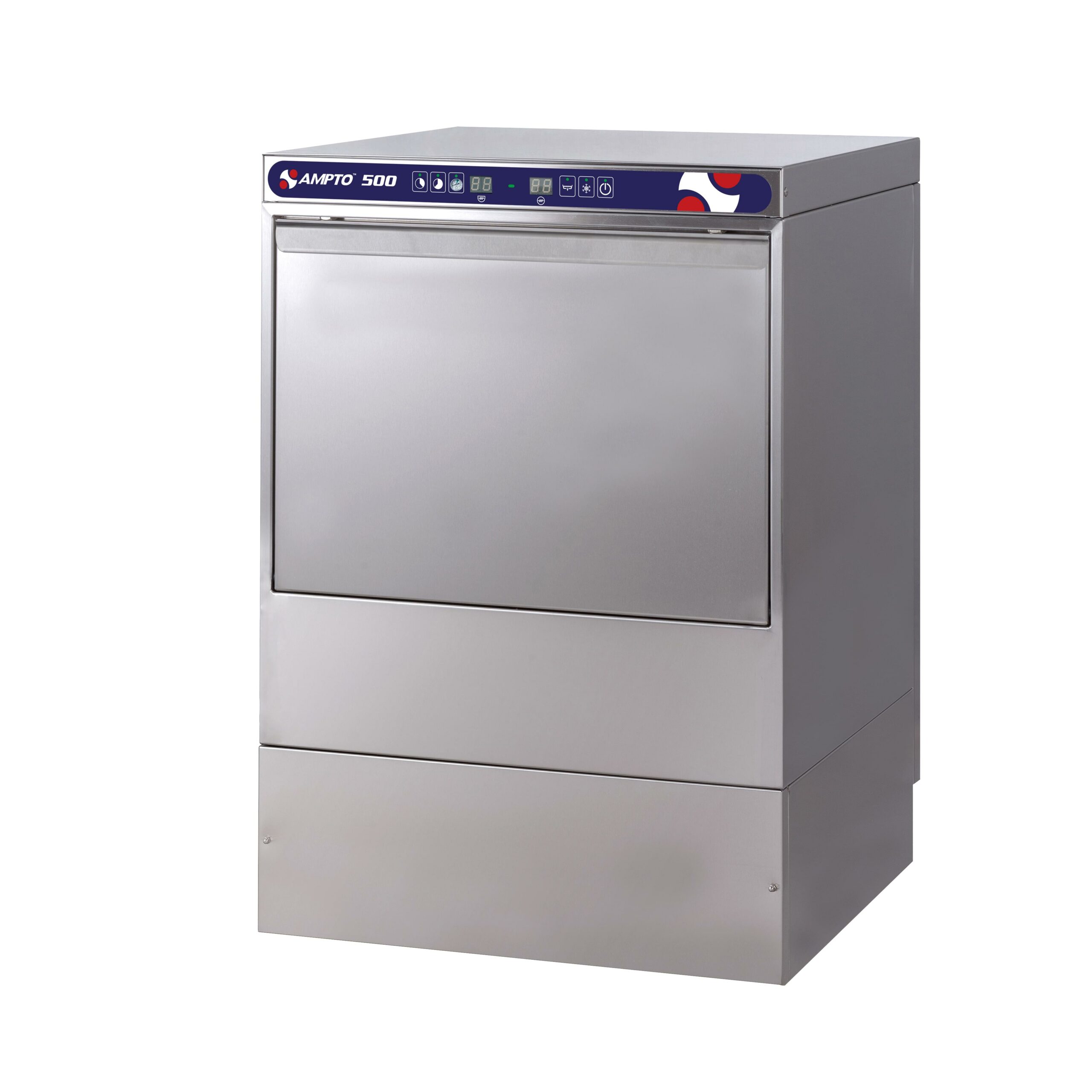

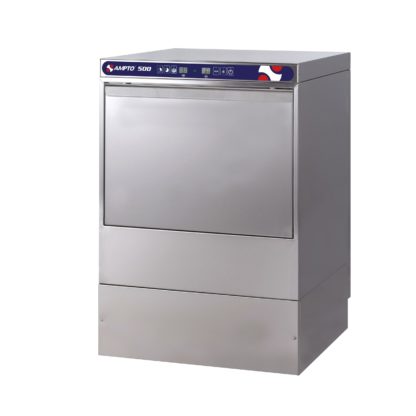

AMPTO 500 – Undercounter Dishwasher

$3,011.00

Undercounter Dishwasher, door type, front loading,  23-5/8″W, (20/30 or 60) racks/hour capacity, high temp, built-in detergent & rinse aid dispensers, digital controls, built-in 3.6 to 6.6 kW booster, pump drain, (3) operating cycles, 9.24 gal tank capacity, 1.58 gal boiler capacity, stainless steel exterior panels & interior, 3/4 HP, cETLus, ETL-Sanitation

SKU: PBPAMPTO500- Category:

Description

Undercounter Dishwasher, door type, front loading,  23-5/8″W, (20/30 or 60) racks/hour capacity, high temp, built-in detergent & rinse aid dispensers, digital controls, built-in 3.6 to 6.6 kW booster, pump drain, (3) operating cycles, 9.24 gal tank capacity, 1.58 gal boiler capacity, stainless steel exterior panels & interior, 3/4 HP, cETLus, ETL-Sanitation

• Rinse with fresh water
• Guarantee rinse temperature
• Connection to minimum 55°C water supply

 Parts:
1. NSF certified indicators for wash temperature, rinse temperature and rinse pressure
2. 304 stainless steel body and handle, heavy duty & corrosion resistant
3. Upper and lower wash/rinse arms with high temperature cycles
4. 1 peg rack, 1 flat rack & 1 cutlery tray included

PRODUCT SPECIFICATIONS
BASKET SIZE 20” x 20”/ 500 x 500 mm
POWER SUPPLY 208-240V / 60Hz / 1 Ph
POWER 3.6 kW
AMP 16 A
WASH PUMP MOTOR 0.75 HP

WATER CONNECTION
FLOW PRESSURE 20 psi ± 5
WATER CONSUMPTION / RACK 0.58 gal (2nd program)
WATER CONSUMPTION / HOUR 11.0 gph
WATER INLET CONNECTION 3/4”
DRAINING CONNECTION 1.0”

CAPACITY
CAPACITY Booster tank: 6L, Wash tank: 35L
HEATING ELEMENT Booster tank: 3 kW, Wash tank: 2.8 kW
RACK / HOUR (1ST PROGRAM) 28
RACK / HOUR (2ND PROGRAM) 19
RACK / HOUR (3RD PROGRAM) 14
WASH CYCLE 1 103 sec
WASH CYCLE 2 223 sec
WASH CYCLE 3 343 sec
RINSE CYCLE 16 sec

WORKING TEMPERATURE
WASHING 78 °C / 172.4 °F
RINSING 78 °C / 172.4 °F

DIMENSIONS
DOOR CLEARANCE 14”/ 360 mm
USEFUL DOOR OPENING 12.8” / 325 mm
NET DIMENSIONS (WDH) 22.5” x 24” x 33” / 573 x 617 x 836 mm
( 38” / 966 mm with door open)

Plug and Wire (not included): Requires a certified electrician to install unit.

NOTE: Normal operation generates steam that may escape from the door. Materials like wood, laminate etc. are unsuitable for areas exposed to dishwasher steam and only stainless steel surfaces is recommended.
