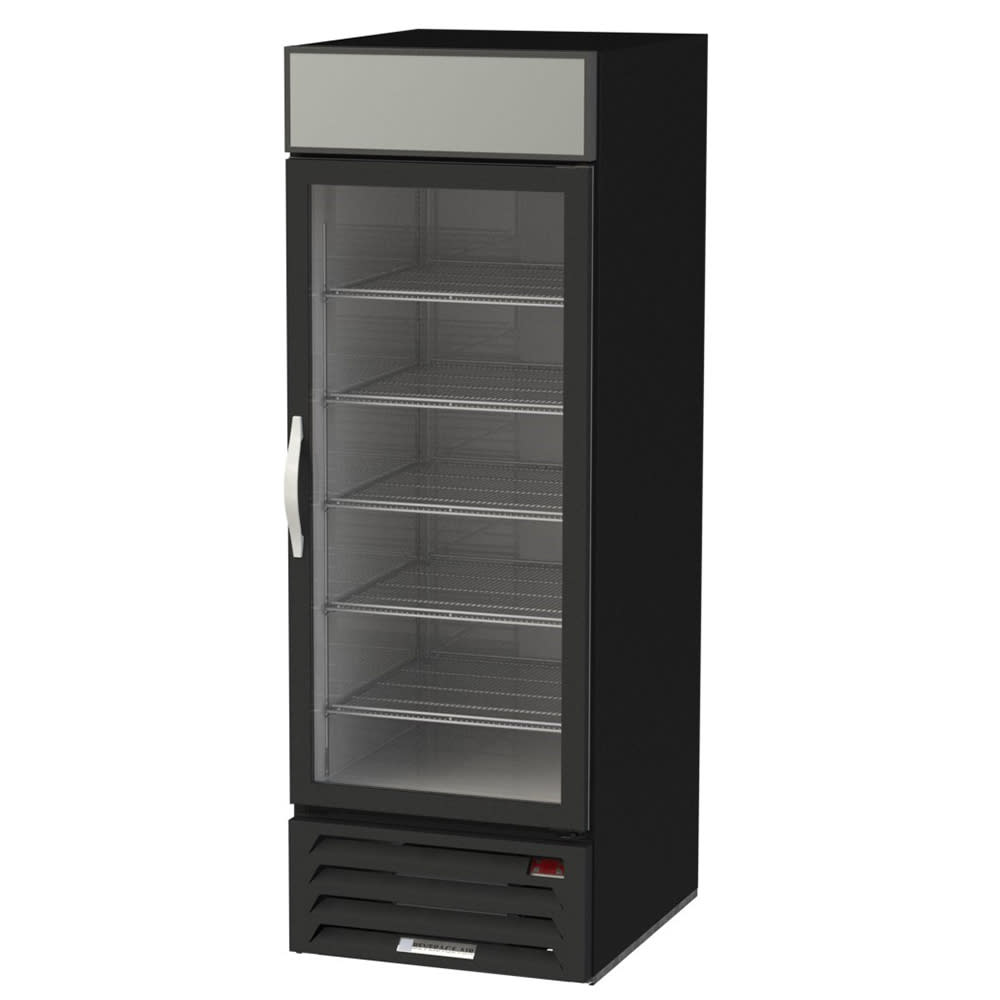

Beverage Air MMF23HC-1-B
The Beverage Air MMF23HC-1-B MarketMax one-section glass door freezer merchandiser holds and displays frozen product on five shelves. They have a wire design that promotes even airflow and a corrosion-resistant epoxy coating. With a white coating, the steel interior increases brightness for visibility, while the exterior is black. An illuminated sign panel above the door draws guests to the unit to increase impulse buys.
Mounted in the bottom of the Beverage Air MMF23HC-1-B one-section display freezer, the refrigeration system is accessible for maintenance and runs in a cool area of the kitchen. The system components can be accessed from behind the one-piece front grille. Staying at and below 0 degrees Fahrenheit, this unit uses R290 hydrocarbon refrigerant-a more eco-friendly option than traditional refrigerants. Frost develops on the refrigeration components when condensate freezes and needs to be removed to prevent system issues, so this unit has an automatic defrost system that requires little maintenance.
- 22.5-cu.-ft. interior space
- 5 epoxy-coated wire shelves
- White-coated steel interior walls are bright to increase visibility
- Durable, baked-on black coating on the steel exterior
- Illuminated sign panel attracts customers
- LED interior lighting increases visibility in the cabinet
- 120-degree, stay-open feature keeps the door open for stocking
- Snap-in door gaskets can be taken out for cleaning
- 1,927 BTU
- Part of the MarketMax series
Quiet Refrigeration System
- Full electronic control
- Operating temperature: 0 degrees F or below
- Uses R290 hydrocarbon refrigerant
- Evaporator coil’s epoxy coating is resistant to corrosion
- Automatic electric defrost eliminates frost buildup
- Mounted in the bottom to operate in the coolest area of the kitchen
- 1-piece grille
Dimensions & Utilities
- Door opening: 233/4 in. W x 525/8 in. H
- Interior: 241/4 in. W x 257/8 in. D x 53 in. H
- Overall: 27 in. W x 335/8 in. D x 78 in. H
- 7.5 A, 3/4 HP
- 115 V/60 Hz/1 ph, 8-ft. cord with a NEMA 5-15P plug
MarketMax Freezer Merchandiser, reach-in, one-section, (1) triple pane hinged glass door, 22.5 cu. ft. capacity, electronic control, digital display, (5) epoxy coated steel shelves, LED interior lighting, lighted sign panel, self closing door with automatic hold-open feature, bottom-mounted refrigeration, black exterior, R290 Hydrocarbon refrigerant, 3/4 HP, cULus, UL EPH Classified, UL-Sanitation, Made in USA
Note: Nominal cubic footage measurements sometimes provided by refrigeration manufacturers may not indicate actual usable space. If you require a specific capacity, please call one of our customer care representatives to ensure the unit you order meets your needs.
