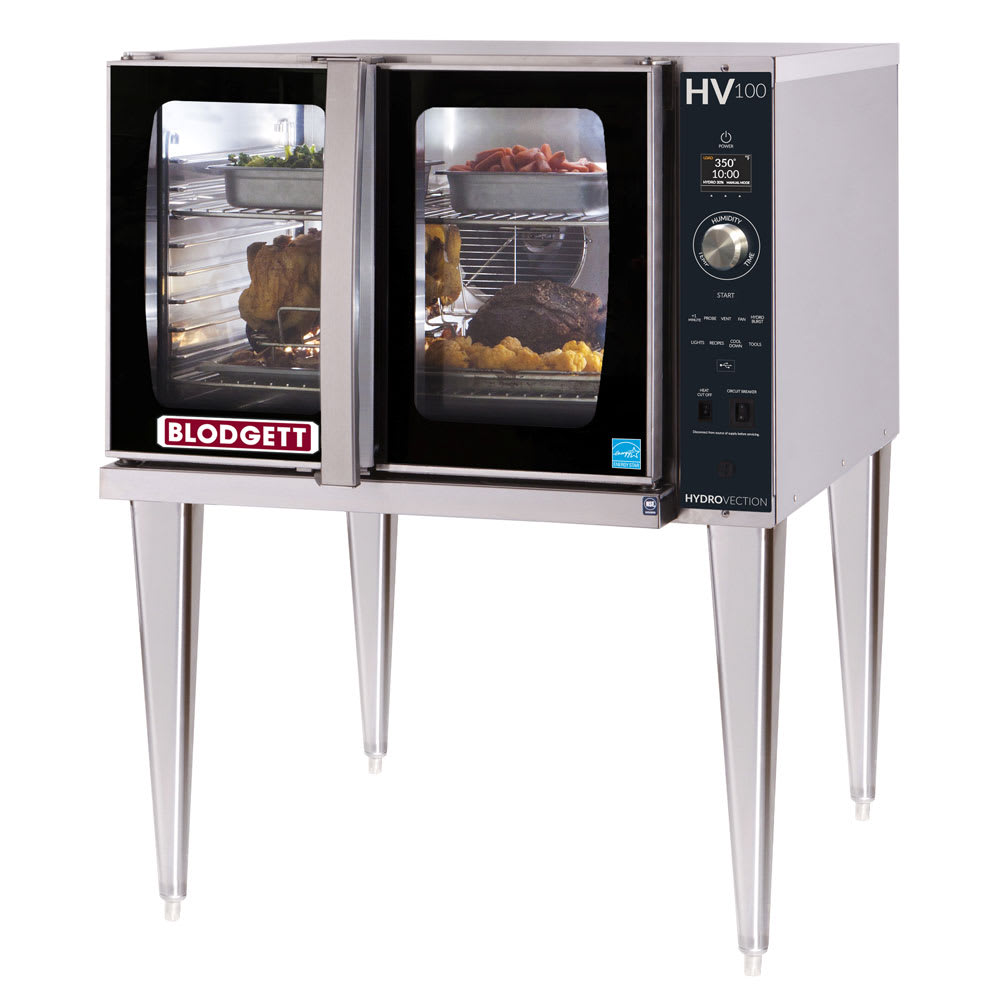

Blodgett HV-100E HydroVection Single Full Size Electric Convection Oven – 15kW, 208v/3ph

The Blodgett HV-100ESGL HydroVection convection oven comes with five stainless steel racks that can be positioned 10 ways. Five 18-inch-by-26-inch baking pans fit in the oven left to right since it has a standard depth, and the liner inside the cavity is made of stainless steel with coved corners to simplify cleaning. There is a drain inside the unit to collect excess condensation and waste water, which is cooled by a thermostatically-controlled quench system before it is released in the drain. Halogen lights enhance visibility to monitor the cooking process.

The control system provides a variety of cooking functions, from hot air to humidity with an additional cool down feature. Its hot air mode is ideal for baking and pastries, and the humidity control is adjustable in 5 percent increments. During any cooking cycle, the Hydroburst feature adds 100-percent humidity, and the four-speed fan control can be set on gentle, low, high, or turbo to suit a variety of applications. With cavity vent control, the operator can release steam as necessary by flipping a switch, and the most common recipes can be uploaded through a USB connection and stored in the control system

Access to the oven cavity is eased since the doors use a turnbuckle assembly that pulls one door open when the other opens. These doors have double-pane, Low-E glass panels to provide product visibility. The interior glass panel is hinged to simplify cleaning, and the handle on the Blodgett HV-100ESGL HydroVection convection oven is curved for comfort.

Product Details

• 6 tubular heating element design
• 5 stainless steel racks can be placed in 10 positions
• Standard depth accepts (5) 18-in. x 26-in. baking pans
• Interior has a stainless steel liner with coved corners to simplify the cleaning process
• Cavity drain collects excess condensation and waste water for disposal
• Thermostatically-controlled quench system cools water before it is released in the drain
• Halogen interior lights increase cabinet visibility
• 2.5-in. super wool plus insulation retains heat
• Stainless steel front, sides, top, and back are strong and simplify cleaning
• Fully-welded, angle-iron frame provides structure for heavy use
• Hand shower is included for effective cleaning
• 25-in. stainless steel legs can be adjusted to suit the application
• 208 V/60 Hz/3 ph, 15 kW, 38 A, ³/₄ HP
• Interior dimensions: 29 in. W x 23.43 in. D x 20 in. H
• Overall dimensions: 38.1 in. W x 48.7 in. D x 50.56 in. H

Standard Control System

• Controls have a function selection for hot air, humidity, and cool down
• Hot air cook mode for baking pastries, cookies, and more
• Humidity control can be adjusted in 5-percent increments
• Hydroburst feature provides 100-percent humidity during any cook cycle
• Core probe function uses a 6-in. removable temperature probe for accurate cooking and holding
• 4-speed fan control can be set on gentle, low, high, or turbo to suit different applications
• Cavity vent control enables the operator to release steam by flipping a switch
• Can store 100 recipes that can be uploaded or downloaded through a USB port

Heavy-Duty Door Construction

• Black doors use dual-pane, Low-E glass to create visibility for monitoring the cooking process
• Interior glass panel is hinged for thorough cleanup
• One-piece curved handle is comfortable to grab for opening
• Turnbuckle assembly pulls one door open when the other is accessed to open both doors at the same time
• Split door operation uses a catch-latch system to secure the opening

From The Manufacturer

HydroVection Oven, Electric, full size capacity (5) 18″ x 26″ pans, black glass doors, (2) halogen lamps, (5) stainless steel racks and (9) rack positions, cavity vent, programmable manual controls with hot air, humidity & cool down functions, four speed auto-reversing fan motor with overload protection, (6) tubular heaters, 4″ fillet core probe cook & hold & USB connection, side mounted hand shower, 304 stainless steel insulated interior liner, stainless steel front, top, sides & back, 25″ adjustable stainless steel legs, 15.0kW, 3/4 HP, cETLus, NSF

*Image may not depict product color, inclusions or accessories.
