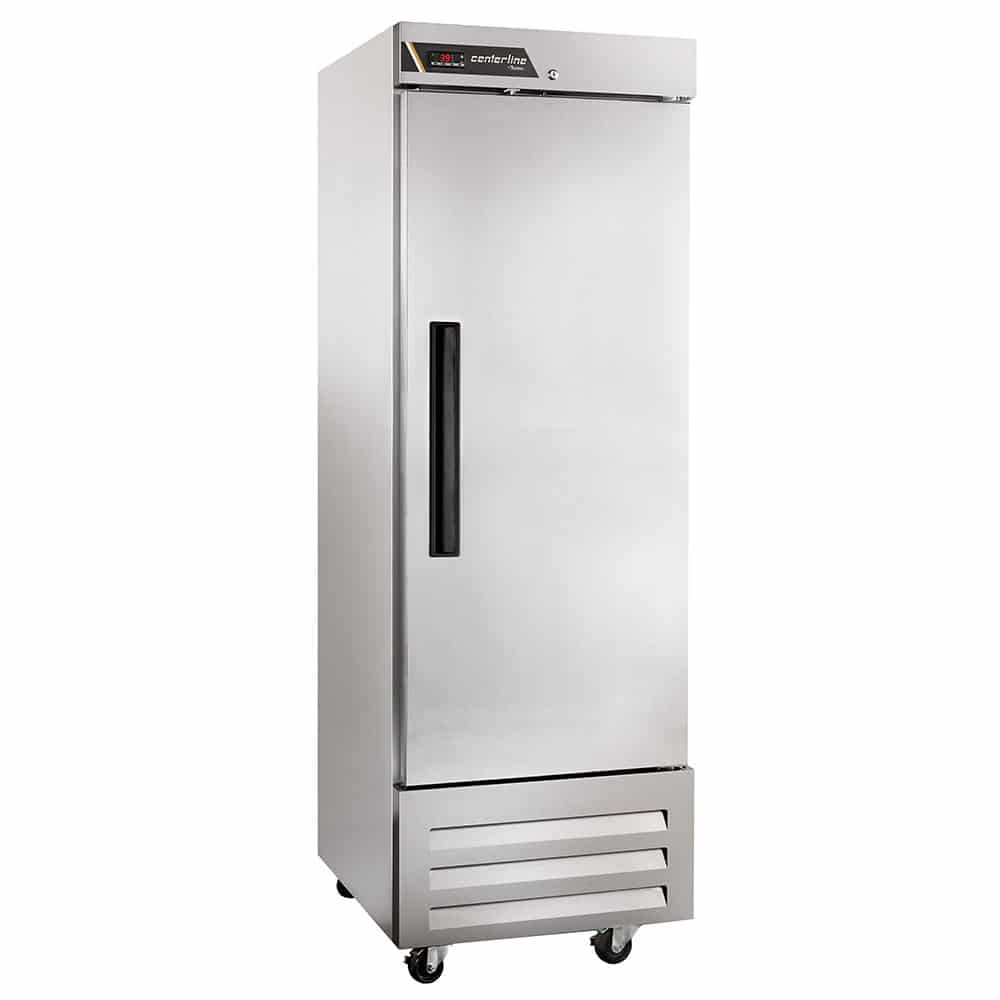

Overall, the Centerline by Traulsen CLBM-23R-FS-R reach-in refrigerator measures 27 inches wide by 33 inches deep by 78 inches high and offers 20.5 cubic feet of interior space. Inside the cabinet, it’s furnished with three epoxy-coated shelves; these can be accessed through a full-height, self-closing solid door with a 110-degree stay-open feature that streamlines loading and product retrieval. To imbue it with long-lasting durability and corrosion resistance, this unit’s sides and interior are anodized aluminum, while its front and louver are made of stainless steel.
To simplify installation, the Centerline by Traulsen CLBM-23R-FS-R one-section refrigerator’s refrigeration system is self-contained. It operates with R450A refrigerant, and its condenser coil can be accessed comfortably for cleaning and routine service. Enabling employees to wheel the unit between locations, it’s mounted on four 4-inch casters, two of which have locks to secure it in place. To preserve cold air, it’s built with foamed-in-place, high-density polyurethane insulation.
- 1 section
- 20.5-cu.-ft. interior space
- 1 full-height, right-hinged solid door (field reversible)
- Self-closing door has 110-degree stay-open feature
- Electronic controls with LED display
- Front and louver constructed of stainless steel for strength
- Built with high-density, foamed-in-place polyurethane insulation
- 3 shelves coated with protective epoxy
- Corrosion-resistant anodized aluminum sides and interior
- Condenser coil is accessible for cleaning and service
- Temperature holding range: 36-41 degrees F
- Bottom-mounted, self-contained refrigeration system
- Raised on (4) 4-in.-high casters (locks on front set)
- R450A refrigerant
Dimensions & Utilities
- 27 in. W x 33 in. D x 78 in. H
- 3.8 A, 1/4 HP
- 115 V/60 Hz/1 ph, 9-ft. cord with NEMA 5-15P plug
Centerline Refrigerator, Reach-in, one-section, 20.5 cu. ft., self-contained bottom mount refrigeration, right hinged full-height solid door (field reversible), electronic control with LED display, (3) epoxy coated shelves per section, stainless steel front, anodized aluminum sides and interior, (4) casters, R450A refrigerant, 1/4 HP, 115v/60/1-ph, 3.8 amps, NEMA 5-15P plug, cETLus, ETL-Sanitation
Note: Nominal cubic footage measurements sometimes provided by refrigeration manufacturers may not indicate actual usable space. If you require a specific capacity, please call one of our customer care representatives to ensure the unit you order meets your needs.
