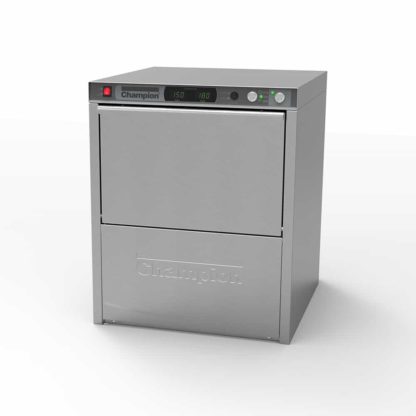

Champion UH330ADA High Temp Rack Undercounter Dishwasher – (30) Racks/hr

The Champion UH330ADA undercounter dishwasher offers three cycle time options and can wash as many as 30 racks per hour. For durability to support high-volume use, it’s constructed of stainless steel-a rugged, easy-to-clean metal that resists rust and corrosion. It’s equipped with a top-mounted digital temperature control and display to simplify use and features an automatic drain cycle. To ensure wares are sanitized at the end of the cycle, its built-in booster heats the rinse water to 180 degrees Fahrenheit.

Designed for undercounter installation, the Champion UH330ADA high-temp dishwasher measures 24 inches wide by 26³/₄ (39¹/₂ with door open) inches deep by 29⁷/₈ inches high. It includes one peg rack and one flat rack and features standard detergent and rinse aid pumps. To prevent delicate glasses from chipping or breaking, it utilizes a soft start function, and to speed up the drying process, this unit is equipped with heat recovery condensation removal and a dry assist feature.

Product Details

• For undercounter installation
• Washes 30 racks per hour
• Heavy-duty stainless steel construction
• 1 peg rack and 1 flat rack
• 3 cycle time options: 120, 200, and 277 seconds
• High-temperature sanitizing
• Insulated booster and panels
• Standard detergent and rinse aid pumps
• Built-in electric booster ensures final rinse water reaches 180 degrees F
• Soft start feature protects glasses from chipping and breaking
• Top-mounted digital temperature control and display
• Automatic drain cycle and pumped drain
• Stainless steel upper, lower, and wash and rinse arms
• Heat recovery condensation removal
• Dry assist feature speeds up drying
• ADA compliant

Dimensions & Utilities

• 24 in. W x 26³/₄ in. D (39¹/₂ with door open) x 29⁷/₈ in. H
• ¹/₂-in. cold water inlet
• 2 kW, 1 HP

Dishwasher, undercounter, 24″W x 26-3/4″D x 29-7/8″H (ADA compliant), high temperature sanitizing, with Heat Recovery Condensate Removal, Dry Assist & StemsSure soft start to protect glasses & dishes from chipping & breaking, (30) racks per hour capacity, 120 second cycle, top mounted precise digital temperature display & Vari-cycle controls, 12″H door opening, stainless steel top & side panels, insulated booster & panels, detergent & rinse aid pumps, automatic drain cycle, pumped drain, built-in electric booster for 180°F final rinse water (standard 66°F/82°C rise), rinse sentry – extends the cycle time to ensure 180°F final rinse, (1) peg rack, (1) flat rack, 1 HP wash pump motor, Multi-Power – includes: Multi-Volt & Multi-Phase (Allows for infield conversion to 208-240 volt and/or single to three phase with ease), NSF, cETLus, ENERGY STAR
