Description
Delfield 8172-EFP

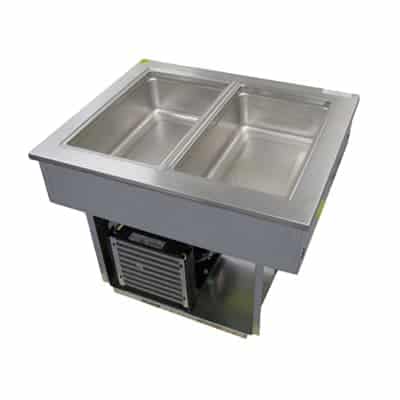

To maintain temperatures between 33 and 41 degrees Fahrenheit, the Delfield 8172-EFP LiquiTec drop-in refrigerator uses a LiquiTec self-contained eutectic fluid refrigerated system. Operators can adjust these levels using precise electronic controls, and the unit’s sides and bottom are insulated with high-density polyurethane to preserve low temperatures. To minimize its environmental impact, this food well operates with R290 refrigerant-a type of eco-friendly hydrocarbon.
For durability to withstand rigorous use, the Delfield 8172-EFP drop-in cold food unit features a galvanized steel exterior. Its top, inner liner, and louver are constructed of stainless steel to provide additional strength and corrosion resistance. This unit accommodates five full-size pans with depths of 4 or 6 inches. Overall, this unit measures 72.44 inches wide by 26 inches deep by 24.24 inches high, and it requires a 71.5-inch by 25-inch counter cutout.
Product Details
- 12-in. x 20-in. stainless steel wells accommodate 5 pans measuring 4 or 6 in. deep
- Drop-in model for installation flush with countertop
- Requires 71.5-in. x 25-in. counter cutout
- Electronic temperature control
- Temperature holding range: 33-41 degrees F
- Sides and bottom are insulated with high-density polyurethane
- Corrosion-resistant stainless steel top, inner liner, and louver
- LiquiTec self-contained eutectic fluid refrigerated system
- Exterior housing made of galvanized steel
- 1/2-in. stainless steel drains with manifold
- Eco-friendly R290 hydrocarbon refrigerant
Dimensions & Utilities
- 72.44 in. W x 26 in. D x 24.24 in. H
- 4.8 A, 1/3 HP
- 115 V/60 Hz/1 ph, 8-ft. cord with NEMA 5-15P plug
LiquiTec Drop-In Cool Food Unit, 5-pan size, 4″ or 6″ deep pans flush with counter top, insulated pan, stainless steel inner liner & top, galvanized outer liner, self-contained Eutectic fluid refrigerated system, R290 Hydrocarbon refrigerant, 1/3 hp, (71-1/2″ x 25″ cutout required), cUL, UL, NSF
