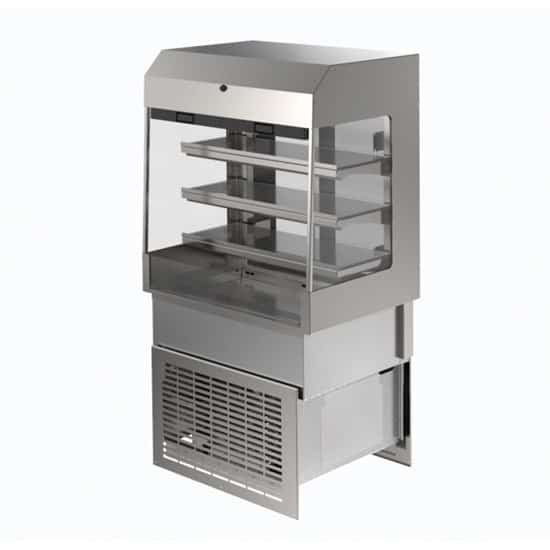

Delfield ASM-36P 36 1/4″ Full Service Drop In Refrigerated Display Case w/ Straight Glass – (4) Levels, 115v

$24,560.00

  • For drop-in installation (requires 35.13-in. x 25.50-in. cutout)
  • (3) 1/4-in. glass shelves can be adjusted in 1-in. increments
  • Insulated, recessed pan bottom shelf accommodates bottles
  • Product illuminated by 4 LED lights
  • Display section has insulated, 7/8-in. dual-pane glass panels
  • Sliding rear doors
  • Front-locking security/night cover
  • Exterior sides made of 18-ga. stainless steel
  • Bottom-mounted, self-contained refrigeration system
  • Slide-out condensing unit simplifies maintenance
  • 2 louvers included
  • Temperature holding range: 36-40 degrees F
  • Uses eco-friendly R290 hydrocarbon refrigerant
SKU: DelfieldASM-36P Category:

Description

Delfield ASM-36P Description

To maintain temperatures between 36 and 40 degrees Fahrenheit, the Delfield ASM-36P air curtain drop-in refrigerator uses a bottom-mounted refrigeration system that’s self-contained to simplify installation. It operates with R290 refrigerant-a type of hydrocarbon that’s more environmentally friendly than traditional alternatives. It’s equipped with three tempered glass shelves on which users can merchandise product; these shelves can be adjusted in 1-inch increments to accommodate different needs. The interior is equipped with LED lighting to improve visibility.

This Delfield ASM-36P refrigerated merchandiser’s exterior sides are made of 18-gauge stainless steel-a sturdy, corrosion-resistant metal that’s simple to clean. To streamline cleaning and maintenance further, it features a slide-out condensing unit. It’s designed for drop-in installation in a countertop, measuring 36.25 inches wide by 26 inches deep by 64.85 inches high. To keep merchandise secure after hours, it features a front-locking security cover.

Product Details

  • For drop-in installation (requires 35.13-in. x 25.50-in. cutout)
  • (3) 1/4-in. glass shelves can be adjusted in 1-in. increments
  • Insulated, recessed pan bottom shelf accommodates bottles
  • Product illuminated by 4 LED lights
  • Display section has insulated, 7/8-in. dual-pane glass panels
  • Sliding rear doors
  • Front-locking security/night cover
  • Exterior sides made of 18-ga. stainless steel
  • Bottom-mounted, self-contained refrigeration system
  • Slide-out condensing unit simplifies maintenance
  • 2 louvers included
  • Temperature holding range: 36-40 degrees F
  • Uses eco-friendly R290 hydrocarbon refrigerant

Dimensions & Utilities

  • 36.25 in. W x 26 in. D x 64.85 in. H
  • 3.7 A, 1/3 HP
  • 115/208-240 V/60 Hz/1 ph, 9-ft. cord with NEMA 14-20P plug

Air Screen Refrigerated Merchandiser, drop-in, 36-1/4″ L, (4) LED lights, bottom shelf, (3) 1/4″ adjustable glass shelves, includes (2) louvers, sliding rear doors, security night cover, self-contained bottom mounted refrigeration, R290a, 1/3 HP, 115/208-240v/60/1, 3.7 amps, NEMA 14-20P, (35.13″ x 25.50″ cutout required), cUL, UL, NSF
