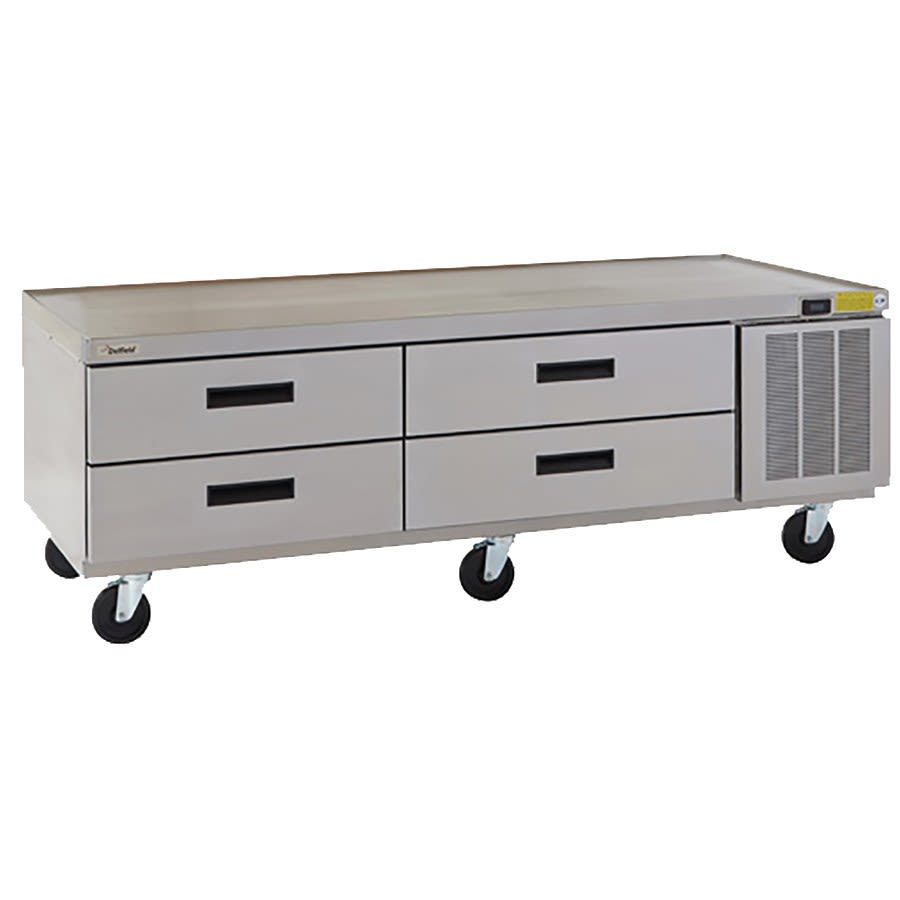

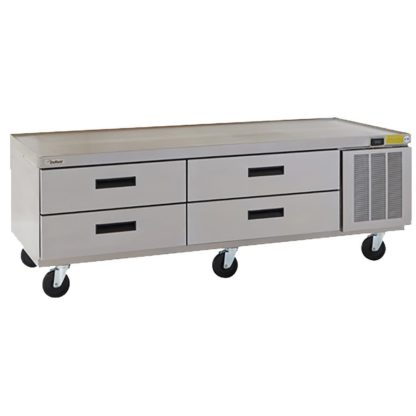

Delfield F2980CP 80 1/4″ Chef Base w/ (4) Drawers – 115v

$11,257.12

  • Durable, corrosion-resistant top is made of stainless steel
  • Marine edge around the perimeter contains messes
  • Fully welded top corners are smooth to simplify cleaning
  • Mounts to a wall using the included wall bracket
  • 6-in. casters
  • 2,071-BTU heat transfer capacity
SKU: DelfieldF2980CP Category:

Description

Delfield F2980CP Description

The Delfield F2980CP chef base accommodates eight 12-inch by 20-inch by 4-inch hotel pans in its refrigerated base. These pans are in accessible drawers that glide on Delrin tracks, which require no grease, providing reliable operation with little maintenance. Additionally, these tracks hold tightly to the gaskets, creating a strong seal that keeps the drawers shut on uneven floors.

Temperatures in the base stay between 36 and 40 degrees Fahrenheit due to the R290 hydrocarbon refrigerant, and operators can adjust the level to suit the product. Balanced air and temperature control is provided by the mullion blower coils. Made of stainless steel, the top resists rust and scratches and a marine edge runs around the perimeter, keeping spills up and off the floor. This Delfield F2980CP low-profile chef base can be moved with its six-inch casters or secured to a flat surface using the included wall bracket.

Product Details

  • Durable, corrosion-resistant top is made of stainless steel
  • Marine edge around the perimeter contains messes
  • Fully welded top corners are smooth to simplify cleaning
  • Mounts to a wall using the included wall bracket
  • 6-in. casters
  • 2,071-BTU heat transfer capacity

Refrigerated Drawer Base

  • Drawers accommodate (8) 12-in. x 20-in. x 4-in. hotel pans (sold separately)
  • Stainless steel drawer system has greaseless Delrin track rollers
  • Drawers tightly grab gaskets to hold them closed on uneven flooring
  • Snap-out gaskets can be removed for cleaning
  • Recessed handles are comfortable to grip
  • ABS interior sides resist chipping
  • Stainless steel interior back and bottom support heavy use
  • Polyurethane foam insulation keeps cold temperatures inside

Refrigeration System

  • Produces cold temperatures with R290 hydrocarbon refrigerant
  • Temperature holding range: 36-40 degrees F
  • Mullion blower coils distribute cold air evenly
  • Electronic control, condensing unit, and condensate evaporator are in the machine compartment
  • Dial thermometer is located inside a water-resistant enclosure

Dimensions & Utilities

  • Top: 78.5 in. W x 29.19 in. D
  • Overall: 80.25 in. W x 30.94 in. D x 24 in. H
  • 4.8 A, 1.22 kW, 1/4 HP
  • 115 V/60 Hz/1 ph, 8-ft. cord with a NEMA 5-15P plug

Refrigerated Low-Profile Equipment Stand, 80-1/4″W x 31-47/50″D x 24″H, two-section, (4) drawers (pans not included), stainless steel top & drawer fronts, front non-spill edge, ABS interior sides, 4″ casters, side-mounted refrigeration system with electric condensate evaporator, R290 Hydrocarbon refrigerant, 1/4 hp, cUL, UL, NSF, 115v/60/1ph

Note: Nominal cubic footage measurements sometimes provided by refrigeration manufacturers may not indicate actual usable space. If you require a specific capacity, please call one of our customer care representatives to ensure the unit you order meets your needs.
