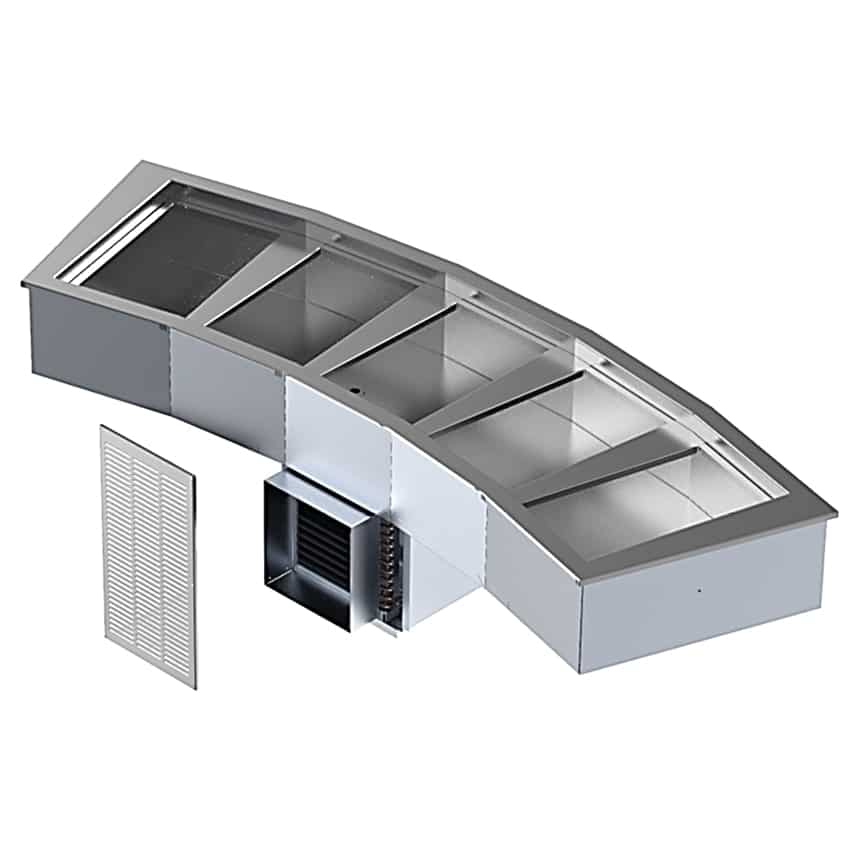

Delfield N8194-BRP 90″ Drop-In Refrigerator w/ (5) Pan Capacity – Cold Wall Cooled, 115v

The Delfield N8194-BRP drop-in refrigerator maintains temperatures of 33 to 41 degrees Fahrenheit, which can be adjusted using thermostatic controls. To ensure product remains cool until it’s served, the unit contains polyurethane foam insulation that preserves cold air to improve efficiency. It operates using R290 hydrocarbon refrigerant and includes stainless steel clips and louvers to install and secure pans.

Constructed of durable stainless steel, the Delfield N8194-BRP mechanically cooled cold pan is resistant to rusting and corroding. To eliminate moisture and excess water, it’s fitted with a 1-inch drain. This unit measures 89.86 inches wide by 31.93 inches deep by 24.45 inches high to accommodate five 12-inch by 20-inch food pans. A push-in gasket secures its full perimeter to reduce the loss of cold air.

Product Details

• Holds (5) 12-in. x 20-in. pans (not included)
• Curved structure
• Mechanically cooled
• Thermostat for temperature control
• Holding temperature range: 33-41 degrees F
• Stainless steel holding clip and louver
• Durable stainless steel construction
• Push-in perimeter gasket
• 1-in. drain
• R290 hydrocarbon refrigerant
• Polyurethane foam insulation
• 1,108-BTU heat transfer capacity

Dimensions & Utilities

• 89.86 in. W x 31.93 in. D x 24.45 in. H (10.76-in. H above counter)
• 3.70 A, ¹/₄ HP
• 115 V/60 Hz/1 ph, 8-ft. cord with a NEMA 5-15P plug

Drop-In Curved Mechanically Cooled Cold Pan, 5-pan size, thermostat for temperature control, stainless steel holding clip & louver, push in perimeter gasket, 1″ drain, R404A refrigerant, 1/4 HP, cUL, UL, NSF
