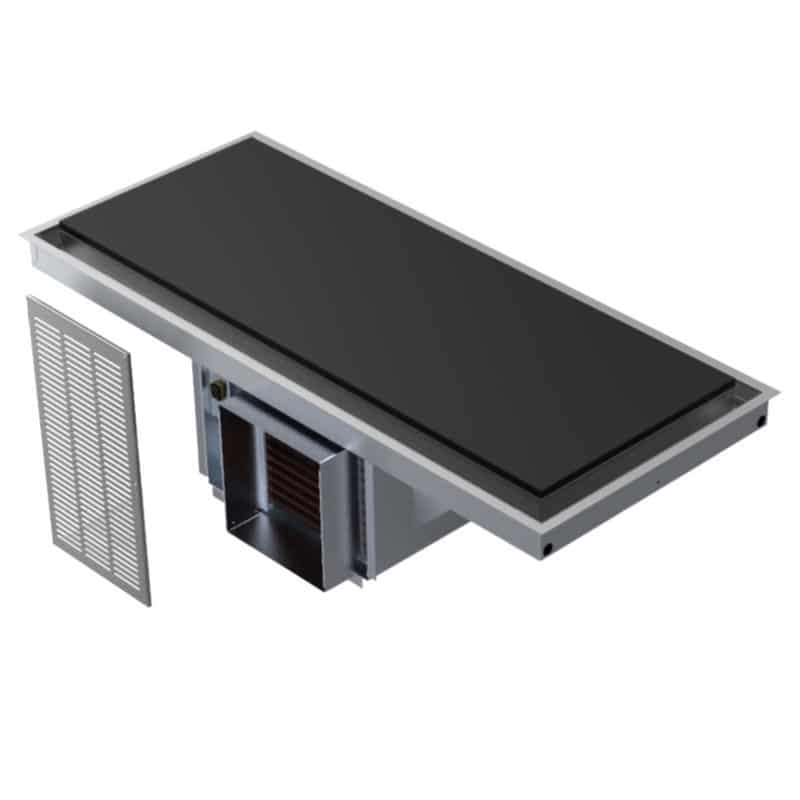

Delfield N8273GP 73″ Elevated Frost Top w/ Built In Compressor, 115v

$8,852.48

  • Stainless steel and granite surface
  • 24-ga. galvanized steel body
  • Fits a 72.38-in. x 25-in. counter cutout
  • Top is elevated 1.29 in.
  • Self-contained condenser
  • R290 refrigerant
  • Operating temperature range: 0 and 20 degrees F
  • High-density polyurethane insulation
  • Built-in on/off toggle switch on condenser
  • 1.5-in.-deep trough built into perimeter
  • 0.75-in. stainless steel drain
  • Stainless steel louver (field installable)
  • 1,876-BTU heat transfer capacity
SKU: DelfieldN8273GP Category:

Description

Delfield N8273GP Description

With its sleek granite and stainless steel surface, the Delfield N8273GP drop-in cold slab improves food presentation. It measures 73.37 inches wide by 25.87 inches deep overall, while its display area is 68 inches wide by 21 inches deep. This slab can be installed into a 72.38-inch-wide by 25-inch-deep counter cutout, and its surface is elevated 1.29 inches. A 1.5-inch-deep trough lines the surface’s perimeter, catching runoff liquid that can be removed with the 0.75-inch stainless steel drain. To lengthen the unit’s service life, the body is made of 24-gauge galvanized steel, while the condenser is secured on a 16-gauge galvanized frame.

A thermal mastic heat transfer compound built between the stainless steel and granite top ensures the Delfield N8273GP drop-in cold slab’s surface remains cool. Its self-contained condenser uses R290 refrigerant, and refrigeration lines are secured in a serpentine pattern beneath the stainless steel top. When ambient air is 75 degrees Fahrenheit, it can produce temperatures between 0 and 20 degrees in 2 hours. High-density polyurethane foam insulates the unit to prevent temperature fluctuations, and operators can flip the toggle switch located on the condenser to turn the unit on.

Product Details

  • Stainless steel and granite surface
  • 24-ga. galvanized steel body
  • Fits a 72.38-in. x 25-in. counter cutout
  • Top is elevated 1.29 in.
  • Self-contained condenser
  • R290 refrigerant
  • Operating temperature range: 0 and 20 degrees F
  • High-density polyurethane insulation
  • Built-in on/off toggle switch on condenser
  • 1.5-in.-deep trough built into perimeter
  • 0.75-in. stainless steel drain
  • Stainless steel louver (field installable)
  • 1,876-BTU heat transfer capacity

Dimensions & Utilities

  • Display area: 68 in. W x 21 in. D
  • Overall: 73.37 in. W x 25.87 in. D x 19.27 in. H
  • 4.8 A, 1/3 HP
  • 115 V/60 Hz/1 ph, 8-ft. cord with a NEMA 5-15P plug

Drop-In Frost Top, stainless steel & granite, thermal mastic heat transfer compound, 1.5″ deep trough around perimeter with 3/4″ stainless steel drain, on/off switch, self-contained refrigeration R290 refrigerant, 1/3 hp, (72-3/8″ x 25″ cutout required), cUL, NSF, UL
