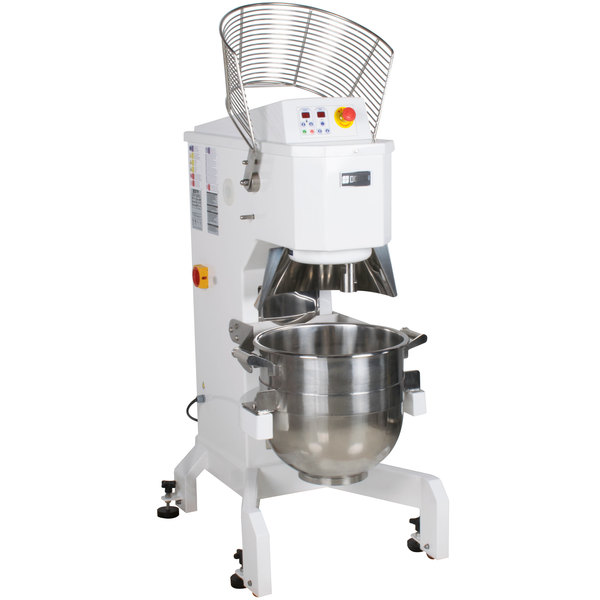

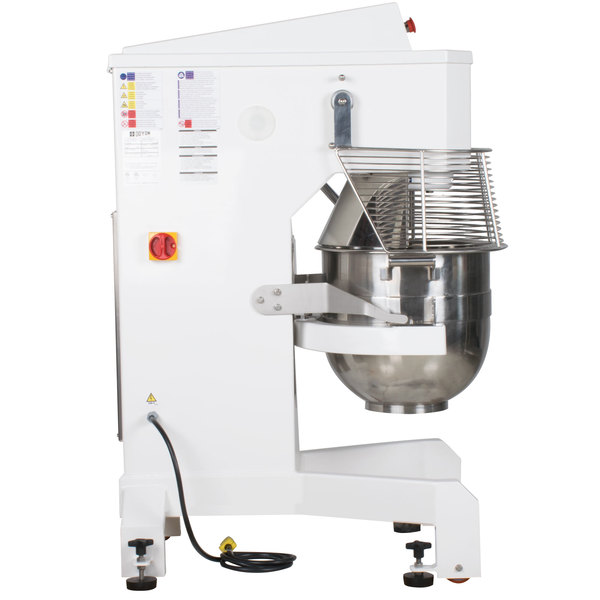

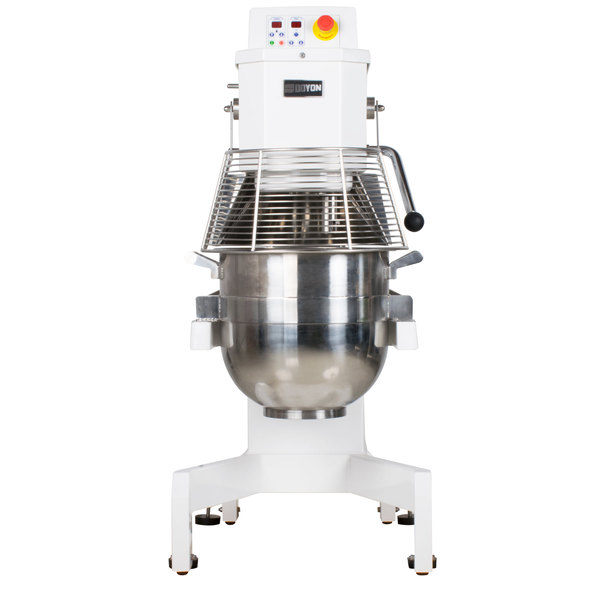

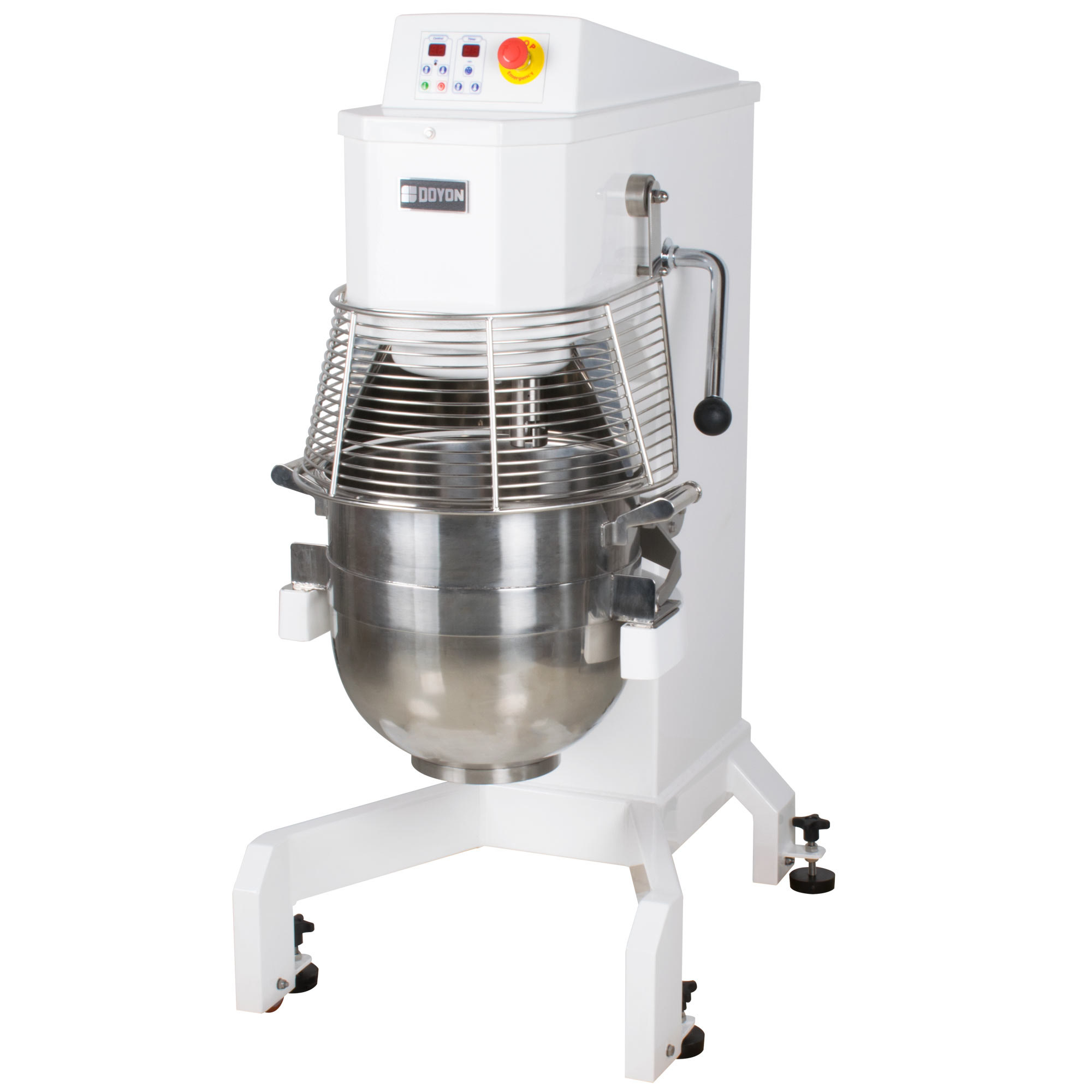

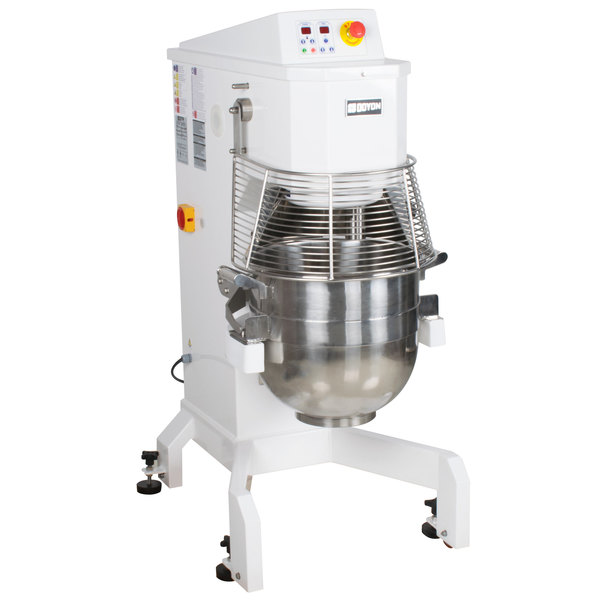

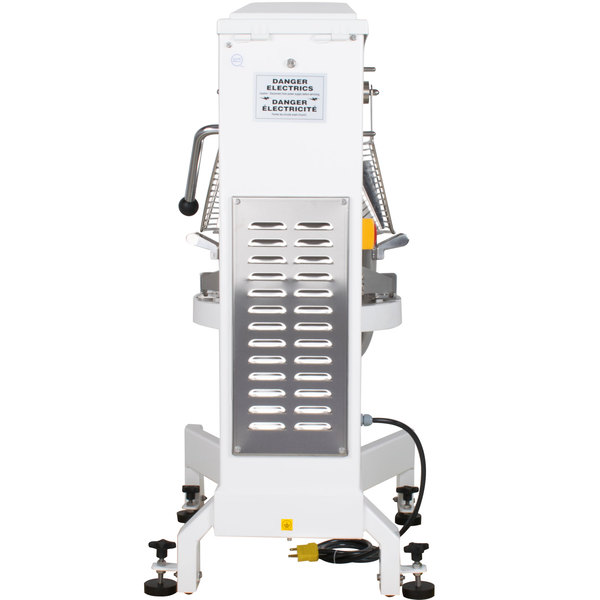

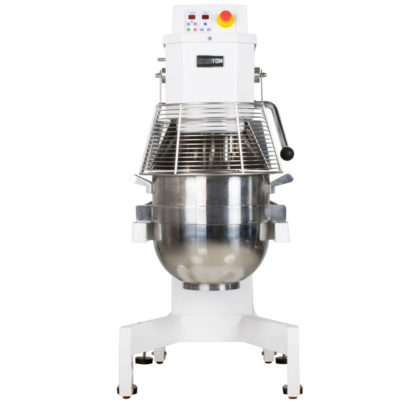

Doyon BTF040 40 Qt. Commercial Planetary Floor Mixer with Guard – 208/240V, 3 hp


– Holds up to 28 lb. of flour or 40 lb. of dough
– 20 high-efficiency continuous speeds; no need to stop mixer to change speeds
– Bowl, safety guard and mixing tools are made of stainless steel
– Comes equipped with lifting bowl guard with safety interlock; prevents operation while bowl is lowered or guard is open
– Gear-type belt allows mixer to change speeds while operational; belt is made of metal-rubber composite
– Belt is non-slipping and durable for tough mixes
– Quick-locking anti-vibration device helps secure mixer in place while mixing
– Bowl locks on each side for secure fit
– Requires a 208/240V electrical connection

SKU: DoyonBTF040 Category:


The Doyon BTF040 planetary mixer offers 20 speed control settings, enabling the operator to mix, beat, whip, aerate, and whisk product. This mixer doesn’t need to be stopped when adjusting the speed, so users can save time when preparing multi-step recipes. Its see-through, stainless steel bowl guard, automatic bowl lock, and emergency stop function prevent accidental injury when using the mixer.

To prevent over-mixing, the Doyon BTF040 commercial mixer comes with a 99-minute timer to support multitasking while preparing dough or batter. Its digital control screen enables precise adjustments to the speed and time settings, and seven programmable presets streamline the creation of frequently prepared recipes. Four casters enable the mixer to be repositioned without strain, and the heavy-duty steel frame is coated with lead-free enamel that resists stuck-on dough.

Product Details

  • 20 speed settings
  • Digital control interface
  • 7 programmable speed-and-time settings
  • Mixer speed can be adjusted while the mixer operates
  • Stainless steel bowl guard is see-through
  • Automatic bowl lock and emergency stop safety features
  • Bowl-lift lever reduces strain when moving heavy mixing bowls
  • Enamel-coated steel frame supports large loads
  • 4 casters
  • Motor overload protection
  • Quiet operation limits kitchen distractions
  • Stainless steel bowl, dough hook, flat beater, and wire whip are all included

Dimensions & Utilities

  • 23 3⁄4 in. W x 36 in. D x 523⁄4 in. H
  • 12 A, 3 HP
  • 208-240 V/60 Hz/1 ph, cord with NEMA 6-15 plug

Planetary Mixer, floor model, 40 quart capacity, 20 speeds, includes stainless steel bowl, safety guard, dough hook, whip and flat beater, cast iron frame with enamel coated steel finish, 3 HP, 208-240v/60/1-ph, 12 amps, NEMA 6-15P
