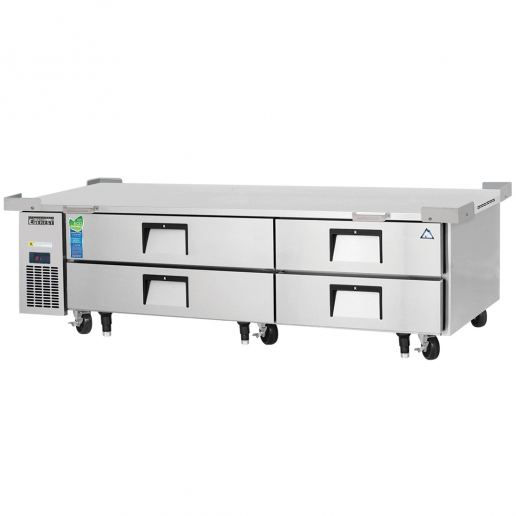

The ECB82-86D4 is a 86-1/4″ wide, stainless steel insulated two-section chef base refrigerator from Everest Refrigeration. This unit is equipped with a stainless steel interior and exterior with a galvanized steel finished bottom and back exterior wall. There are 4 insulated drawers on this chef base refrigerator with the capacity for (10) full size pans.
A forced-air cooling system in this chef base refrigerator with an oversized condenser and ECM fans provide balanced airflow throughout the cabinet for a faster temperature drop. The refrigeration system on this unit has a side mounted condensing unit and uses environmentally friendly R290 refrigerant. This chef base refrigerator has 2-1/2″ thick, high density foamed-in-place polyurethane insulation.
The ECB82-86D4 operates on 115 Volts, 60 Hz, 1-phase at 2.5 Amps for 1/3 HP and comes pre-wired and ready with a NEMA 5-15P plug. There are 6 swivel casters on this chef base refrigerator that are 5″ high with brakes on front set and 3 additional front legs for support.
Everest Refrigeration ECB82-86D4 Features
- Stainless steel interior and exterior
- Galvanized steel finished bottom and back exterior wall
- Side mounted condensing unit
- 4 insulated drawers
- Drawer pan capacity: (10) full size pans
- Forced-air cooling system
- Worktop security corner guards
- Stainless steel grips for unit mobility
- Multi-function digital controller with an easy to read LED display
- 2-1/2″ thick, high density foamed-in-place polyurethane insulation
- Refrigerant: R290
- Electrical specifications: 115 Volts, 60 Hz, 1-phase and 2.5 Amps for 1/3 HP
- Pre-wired and ready with NEMA 5-15P plug
- 6 swivel casters: 5″ high with brakes on front set
- 3 additional front legs
|Ship Weight||477 lbs|
|Manufacturer Part #||ECB82-86D4|
|Base Material||Stainless Steel|
|Dimensions (W x D x H)||86-1/4″ x 32-1/8″ x 20″|
|Compressor Location||Side Mounted|
|Number of Sections||2|
|Number of Drawers||4|
|Drawer Pan Capacity||1 x 10|
|Maximum Weight Support Capacity||1,084 lbs.|
|Temperature Range||33¬∞ – 54¬∞F|
