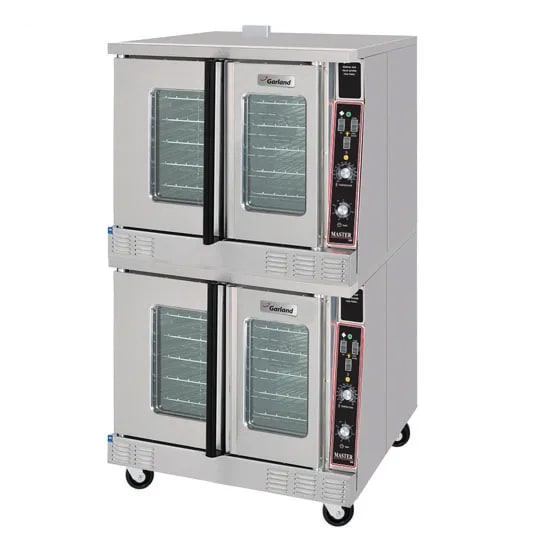

Garland MCO-ES-20-S Master Double Full Size Electric Convection Oven – 20.8 kW, 208v/1ph

The Garland MCO-ES-20-S full-size convection oven has two cavities in a single footprint, maximizing cooking capacity and flexibility without occupying additional space. Each oven interior has a standard depth that supports 18-inch by 26-inch pans side to side on chrome-plated racks. In these cavities, the racks are adjustable on 13-position guides. The porcelain-enameled finish in the cavities provides corrosion resistance and facilitates cleaning by limiting food buildup, while the coved corners eliminate crumb-trapping cracks and crevices.

Each cooking cavity in this Garland MCO-ES-20-S double electric convection oven has a fan, moving heat evenly to encourage quick cook times. Operators can adjust the fan speed to high and low settings, and the low option complements delicate products. The temperature is adjustable using the solid-state controller and it comes with a one-hour electromechanical timer. Doors on each oven section open dependently with one handle per section.

Product Details

• 2 standard-depth cavities hold sheet pans in side-to-side positions
• 6 chrome-plated racks with 13 positions per oven cavity
• Porcelain-enameled interiors resist corrosion and food buildup
• Coved interior corners eliminate crevices that could trap food particles
• Cavity lighting keeps product visible to promote monitoring
• 2-speed fans have low and high settings
• Master 200 solid-state temperature and time controls
• Temperature range: 150-500 degrees F
• 1-hr. electromechanical timer
• Dependent 60/40 door sections each open with a single handle
• Dual-pane glass windows in the door encourage product monitoring
• Safety system automatically stops the fan if the doors are open 3 in.
• Stainless steel top, front, and sides
• Part of the Master series

Dimensions & Utilities

• Interiors: 29 in. W x 24 in. D x 24 in. H
• Overall: 38 in. W x 41¹/₄ in. D x 71³/₄ in. H
• 50 A, 20.8 kW, (2) ³/₄ HP
• (2) 208 V/60 Hz/1 ph

Master Series Convection Oven, electric, double-deck, standard depth 39″, (2) speed 3/4 HP fan, Master 200 solid state controls with 1 hour timer, dependent 60/40 doors with windows, stainless steel front, sides & top, porcelain cavity, 24″ cooking cavity height, with (6) chrome plated oven racks on 13-position rack guides, 6-1/2″ legs, 20.8 kW (Garland), cUL, NSF, 208v/60/1ph
