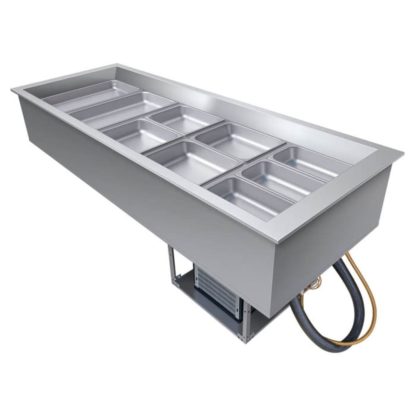

Hatco CWB-5 71″ Drop-In Refrigerator w/ (5) Pan Capacity, Cold Wall Cooled

The Hatco CWB-5 drop-in refrigerated well’s condenser uses R-513A refrigerant to produce and maintain cool temperatures, ensuring prechilled foods are served at ideal temperatures. Its angled wall enables cool air to circulate evenly across food pans, eliminating warm spots that could impact food quality. Environmentally friendly insulation built into the sides and bottom retains cool temperatures when the unit is displayed in a warm ambient environment. A defrost mechanism activates automatically, preventing frost accumulation on key components, and operators can perform maintenance on this unit easily with the included sight glass, service valve, drain, dryer and filter, receiver, and flexible refrigerant line.

As a top-mount unit, the Hatco CWB-5 refrigerated well can be installed into a cutout measuring 70 inches wide by 26 inches deep at most. This 71-inch-wide by 27-inch-deep by 25.5-inch-high unit accommodates five full-size food pans, and its angled stainless steel interior walls facilitate pan insertion and retrieval. For flexible installation and venting adjustments, its condensing unit can be rotated 90 or 180 degrees and mounted to either side of the well or 4 feet away from the unit at most. To match Hatco’s heated drop-in pan well for a cohesive look on buffet lines, it features aluminized steel housing and a stainless steel bezel. Both metals resist rust, corrosion, and wear and can be wiped clean quickly.

Product Detail

• For prechilled foods
• Drop-in configuration
• Minimum cutout dimensions: 69.13 in. W x 25.19 in. D
• Maximum cutout dimensions: 70 in. W x 26 in. D
• Accommodates (5) 12-in. x 20-in. full-size pans
• Condenser uses R-513A refrigerant
• Condensing unit can be mounted in various positions on well or installed remotely
• Condenser can be rotated in 90- or 180-degree positions
• Auto-defrost mechanism
• Eco-friendly insulation built into sides and bottom
• Angled interior wall
• Aluminized steel housing and stainless steel bezel
• Includes sight glass, service valves, dryer/filter, receiver, long refrigerant line, and drain

Dimensions & Utilities

• 71 in. W x 27 in. D x 25.5 in. H
• 8.7 A, 800 W, ⁵/₈ HP
• 120 V/60 Hz/1 ph, NEMA 5-15P plug included

From The Manufacturer

Drop-In Refrigerated Well, (5) pan size, top mount, electronic temperature control, pan support bars for full-size pans, condenser unit (can be rotated), sight glass, service valves, dryer/filter, insulated with drain, aluminized steel housing, stainless steel bezel, 5/8 HP, cULus, Made in USA

*Image may not depict product color, inclusions or accessories.
