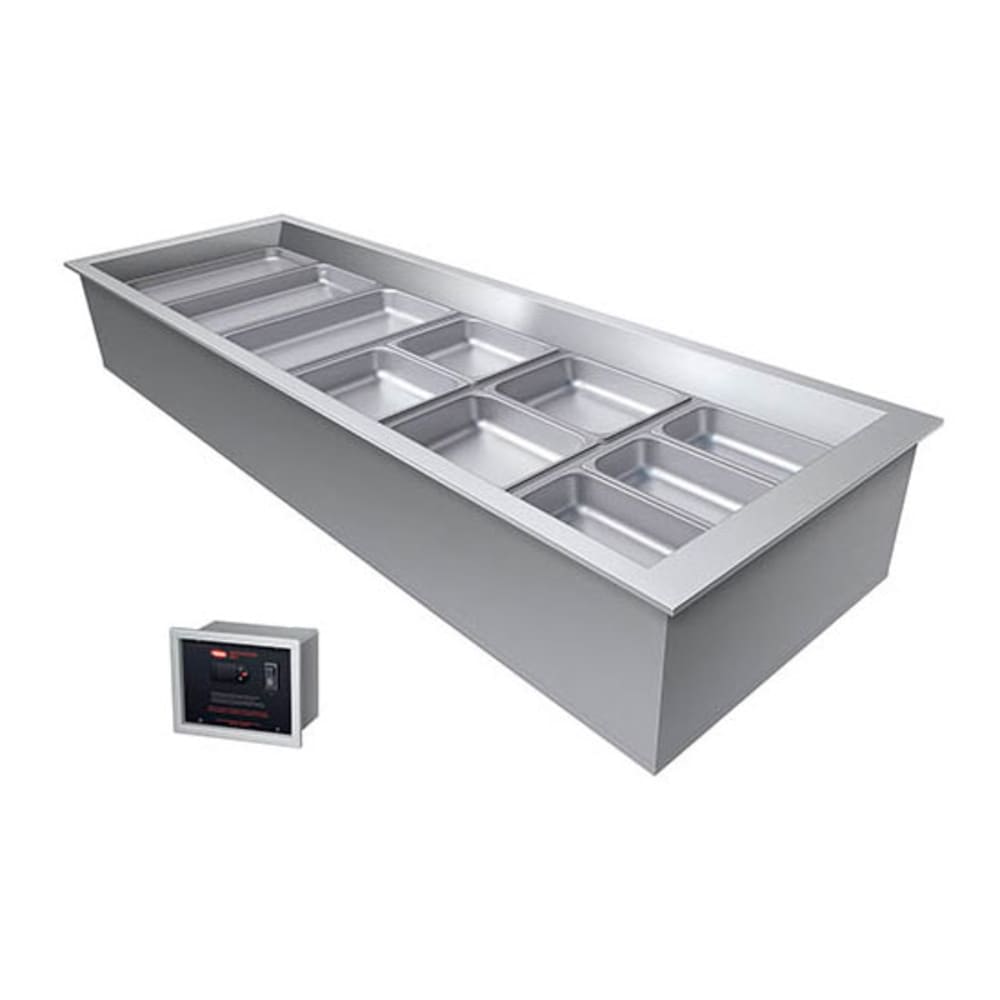

Sized to accommodate six full-size food pans, the Hatco CWBX-6 drop-in refrigerated well measures 84 inches wide by 27 inches deep by 171/20 inches tall. Its durable, corrosion-resistant aluminized steel housing establishes a sleek, professional appearance on buffet lines and food bars while matching other Hatco food wells for a uniform look. To achieve a streamlined, built-in aesthetic, this unit can be dropped in a cutout as large as 83 inches wide by 26 inches deep. Because it doesn’t include a condenser, it can be incorporated into multi-cold-well configurations to enhance installation flexibility. Between uses, residual food can be expelled from its 1-inch NPT brass drain.
For convenience, the Hatco CWBX-6 refrigerated food well’s electronic panel ships loose and includes 9-foot-long probe wires that enable the control panel to be placed in a more desirable location. This panel lets staff adjust temperatures as menus change and initiate a defrost cycle that automatically removes icy buildup. To ensure prechilled foods are held at safe temperatures in warm ambient settings, its cold-wall construction uses R-513A refrigerant, while its angled interior wall directs cool air across the pans to eliminate any warm spots. Because its sides and base are insulated, it retains generated temperatures while conserving energy in warm environments.
- Accommodates (6) 12-in. x 20-in. food pans
- Top-mount, drop-in design
- Minimum cutout dimensions: 8213/100 in. W x 2519/100 in. D
- Maximum cutout dimensions: 83 in. W x 26 in. D
- Resilient, corrosion-resistant aluminized steel housing includes stainless steel bezel
- Unique, angled interior wall enhances visibility and enables uniform air circulation
- Environmentally friendly insulation built into sides and base
- Cold-wall construction
- R-513A refrigerant
- Electronic control panel’s 9-ft.-long probe wires enable remote installation
- Automatic defrost mechanism
- Condenser not included
- 1-in. NPT brass drain
- 1,830-BTU evaporator load
Dimensions & Utilities
- 84 in. W x 27 in. D x 171/20 in. H
- 120 V/60 Hz/1 ph
From The Manufacturer
Drop-In Refrigerated Well, (6) pan size, top mount, electronic temperature control, auto defrost, pan support bars for full-size pans, remote refrigeration, control panel & TXV valve (shipped loose), insulated with 1″ drain, aluminized steel housing, stainless steel bezel, with control panel, WITHOUT condensing unit, cULus, 120v/60/1ph
*Image may not depict product color, inclusions or accessories.
