Description

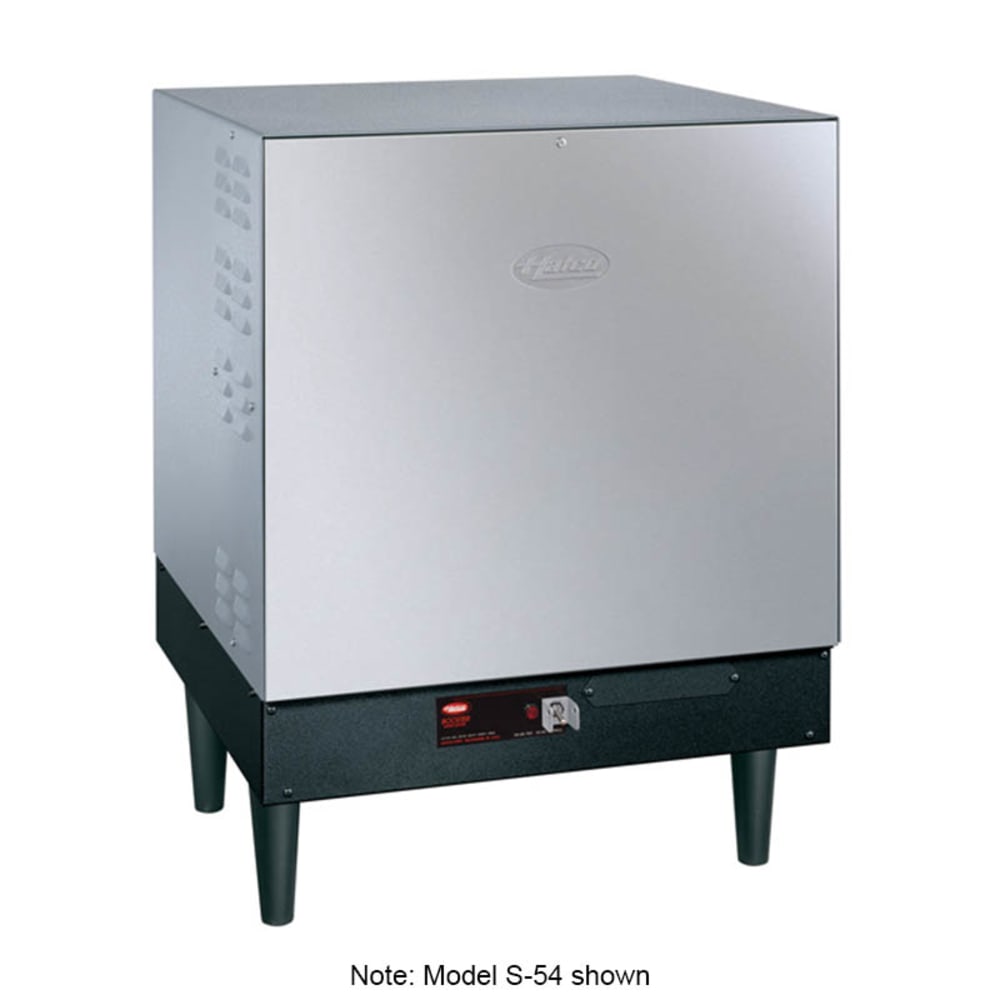

Hatco S-27
The Hatco S-27 Imperial booster heater raises the temperature of water to 180 degrees Fahrenheit for sanitary warewashing or 140 degrees Fahrenheit for low-temperature dishmachines. Its ambient compensating thermostat maintains the temperatures. The tank can accommodate 16 gallons and is lined with Castone to protect the components against corrosion. If the water levels become too low, the low-water cutoff feature shuts down the elements to prevent them from burning out.
The Hatco S-27 Imperial booster heater has a stainless steel front and hammertone body withstand daily wear and tear. The front opens to offer convenient access for servicing the unit. There is a built-in heat trap and fiberglass insulation to retain heat and increase efficiency. Its on/off switch has a pilot indicator light to clearly display when the heater is on, and the unit is elevated off the ground with its 6-inch-tall plastic legs.
Product Details
- Heats water to 180 degrees F for sanitary warewashing
- Thermostat can be lowered to 140 degrees F for use with low-temp dishwashers
- Ambient compensating thermostat controls the metal-sheathed heating elements and maintains a consistent temperature
- Water temperature recovery with a 40-degree F rise: 271 GPH
- Water temperature recovery with a 70-degree F rise: 155 GPH
- High-limit temperature switch shuts down power if the unit overheats
- 16-gal. tank capacity
- Corrosion-resistant Castone tank lining provides lasting strength
- Cuts off when water levels get too low to prevent element burnouts
- Hammertone body and stainless steel front withstand heavy use
- Integrated heat trap and fiberglass insulation retain heat for increased efficiency
- Front access provides convenience for servicing the components
- On/off switch with a pilot indicator light
- Durable 6-in. plastic legs
- Includes temperature/pressure relief and pressure reducing valves
Dimensions & Utilities
- 28.53 in. W x 22.75 in. D x 31.03 in. H
- 27 kW, 129.8 A
From The Manufacturer
Imperial Booster Heater, Electric, 16-gallon storage capacity, 27-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6″ plastic non-adjustable legs, Castone tank, NSF, cUL, UL, 208v/60/1ph
