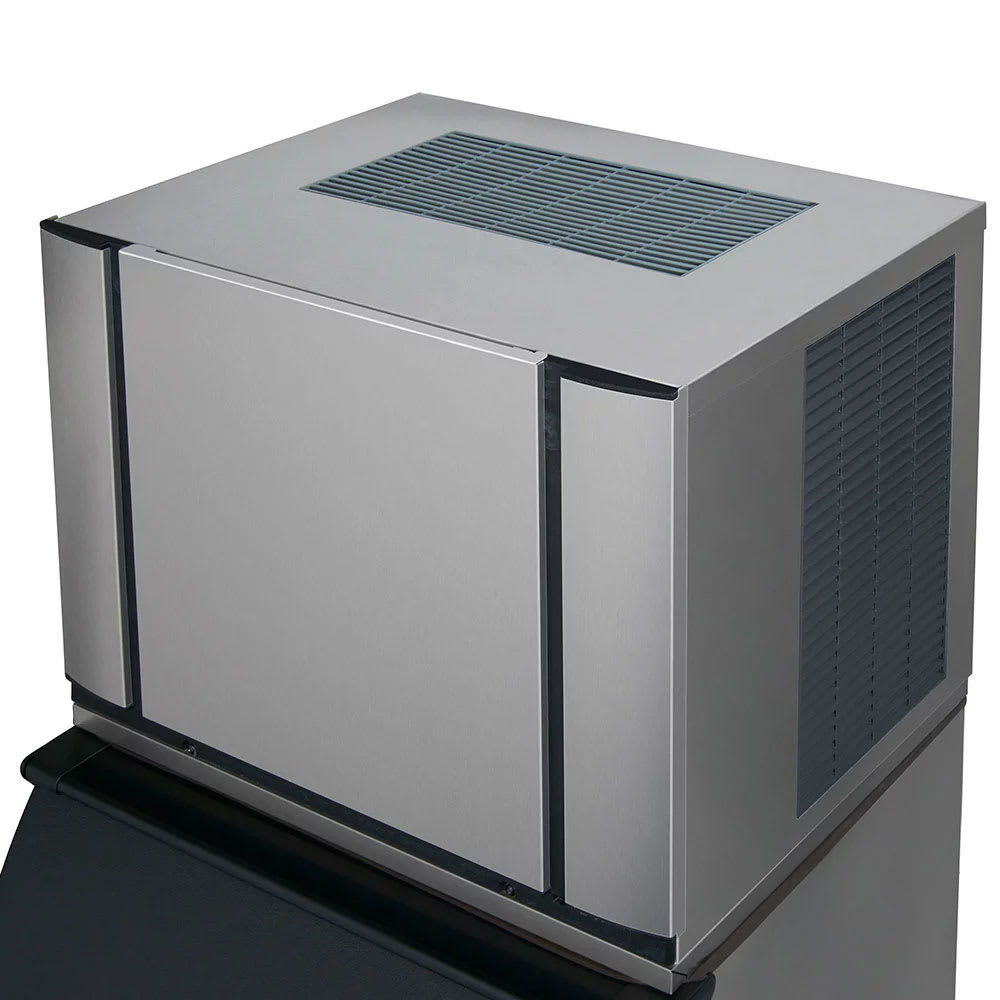

Ice-O-Matic CIM0320HA 22″ Elevation Series Half Cube Ice Machine Head – 313 lb/24 hr, Air Cooled, 115v

Producing as much as 313 pounds of half-cube ice per day, the Ice-O-Matic CIM0320HA ice machine makes half-cube ice, a type often used for drinks as well as dispensing and bagging applications. It is an air-cooled unit, so it uses air from the room to cool the refrigerant, removing heat from the evaporator plate so water will freeze and form cubes. Without additional water hookups or refrigerant lines to worry about, air-cooled units are easier to install than water-cooled or remote units.

This Ice-O-Matic CIM0320HA ice maker head protects against bacteria and can clean itself with the touch of a button. To prevent obstructions in the exhaust, the machine is air-cooled and discharges from both the sides and the top. With no hard-to-clean crevices, this unit is energy efficient, using BPA-free plastic and recyclable parts. It includes snap-in, snap-out, dishwasher-safe components and an LED light to indicate when cleaning is required.

Product Details

• 313-lb. maximum daily ice production
• Makes half-cube ice
• Half-cube ice size: ³/₈ in. x ⁷/₈ in. x ⁷/₈ in.
• Plastic food zone with no hard-to-clean crevices
• Recyclable and energy efficient
• Built in Agion for antimicrobial protection
• LED indicator informs users when cleaning is needed

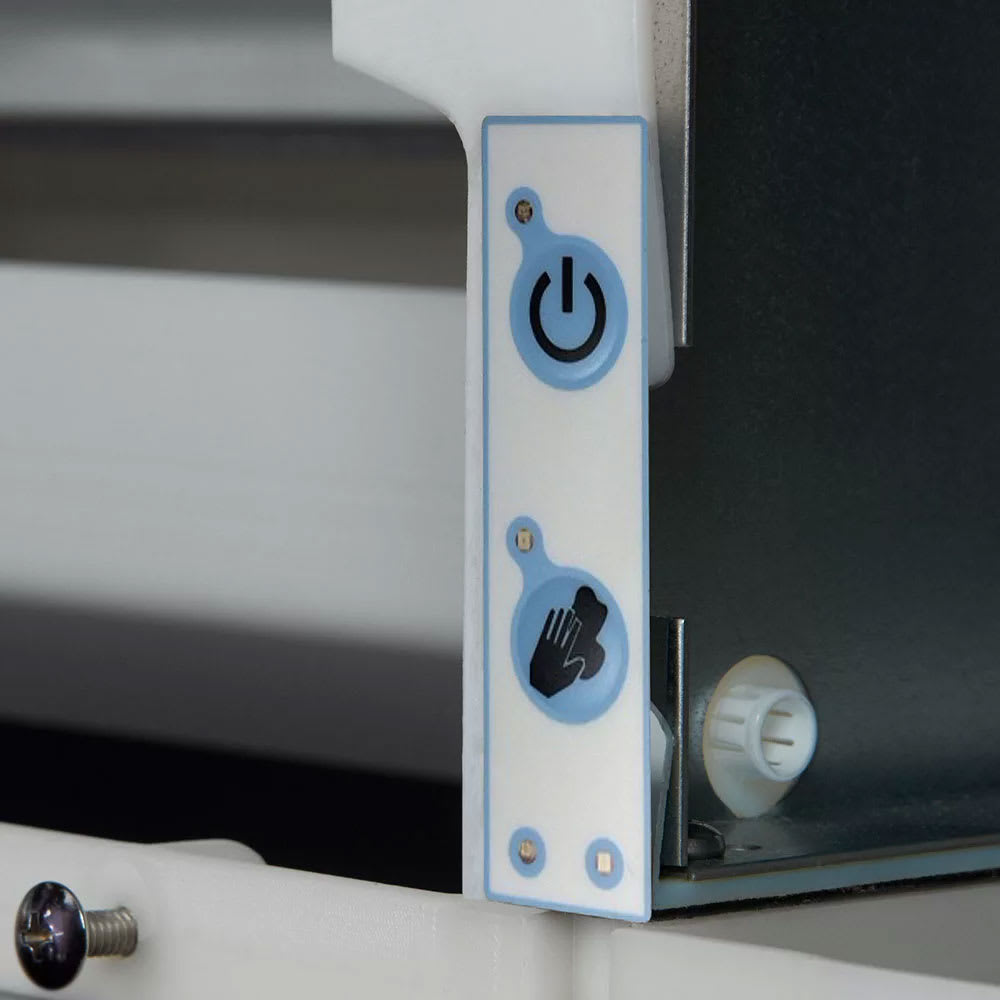

• 1-touch cleaning

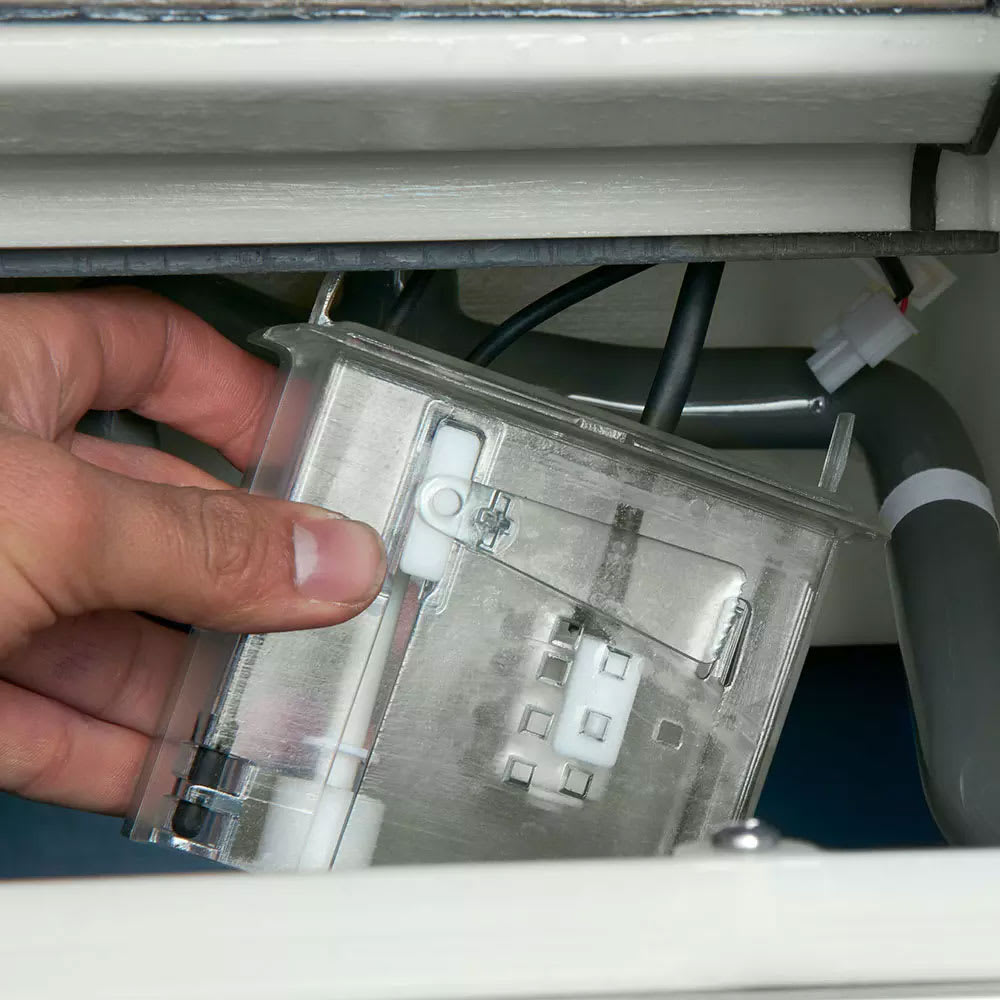

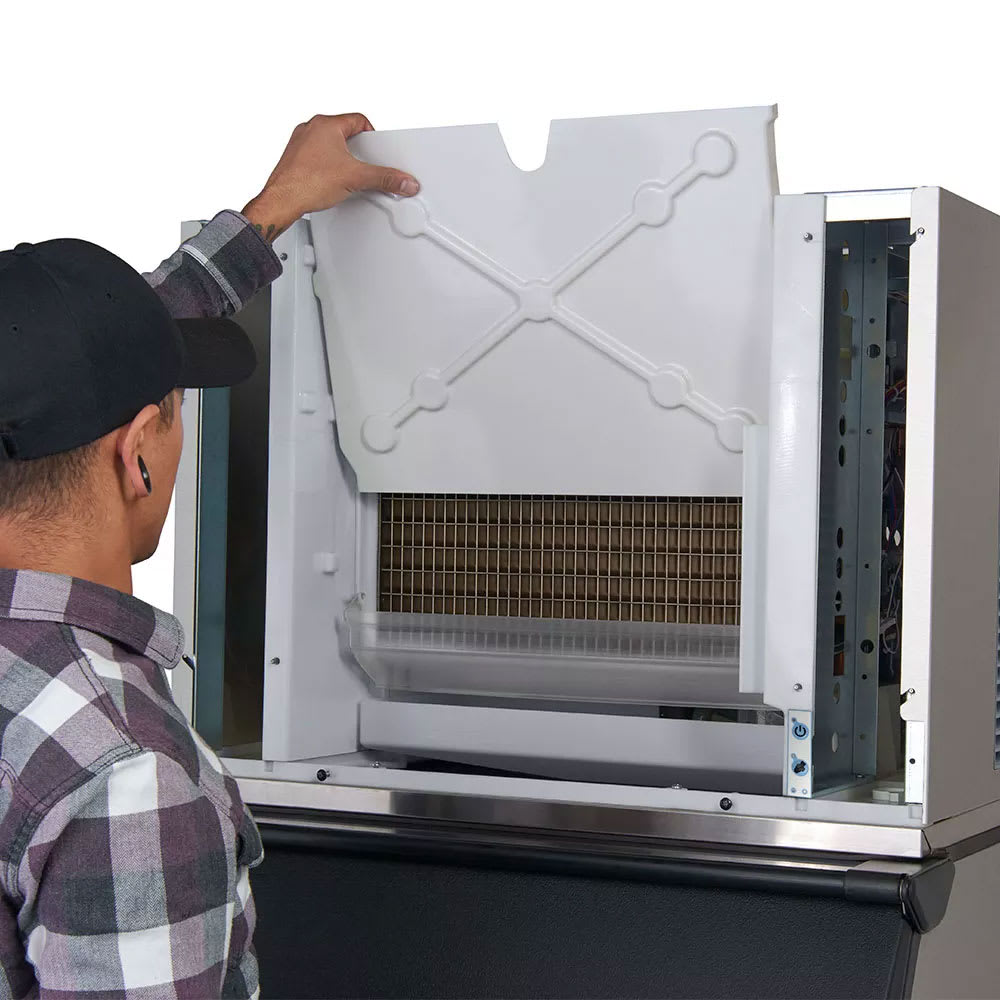

• Snap-in, snap-out and dishwasher-safe components
• Dual exhaust releases air from side and top

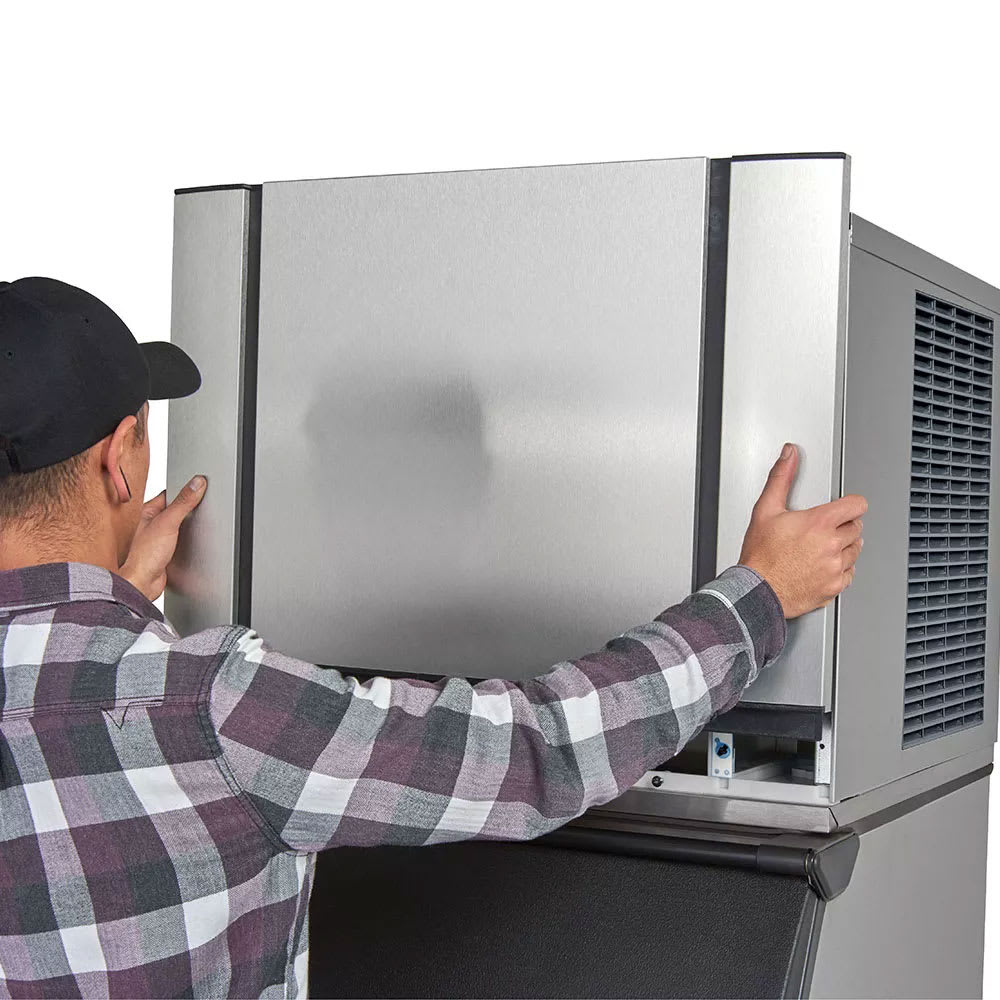

• Easy installation and servicing
• Uses R404A refrigerant
• Made with BPA-free plastic
• Self-contained condenser
• 4,400 BTU of heat transfer capacity
• Ideal ambient air temperature: 50-100 degrees F
• Ideal incoming water temperature: 40-100 degrees F
• Ideal incoming water pressure: 20-80 PSIG
• Ice storage bin or dispenser is sold separately
• CE approved; cULus listed; NSF certified

Dimensions & Utilities

• 22.25 in. W x 24.25 in. D x 21.25 in. H
• 11 A
• 115 V/60 Hz/1 ph

Elevation Series Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 22″ W, approximately 313 lb production/24 hours at 70°/50° (244 lb at 90°/70°), half-size cubes, Agion built in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 115v/60/1-ph, 11.0 amps, cULus, NSF, CE
