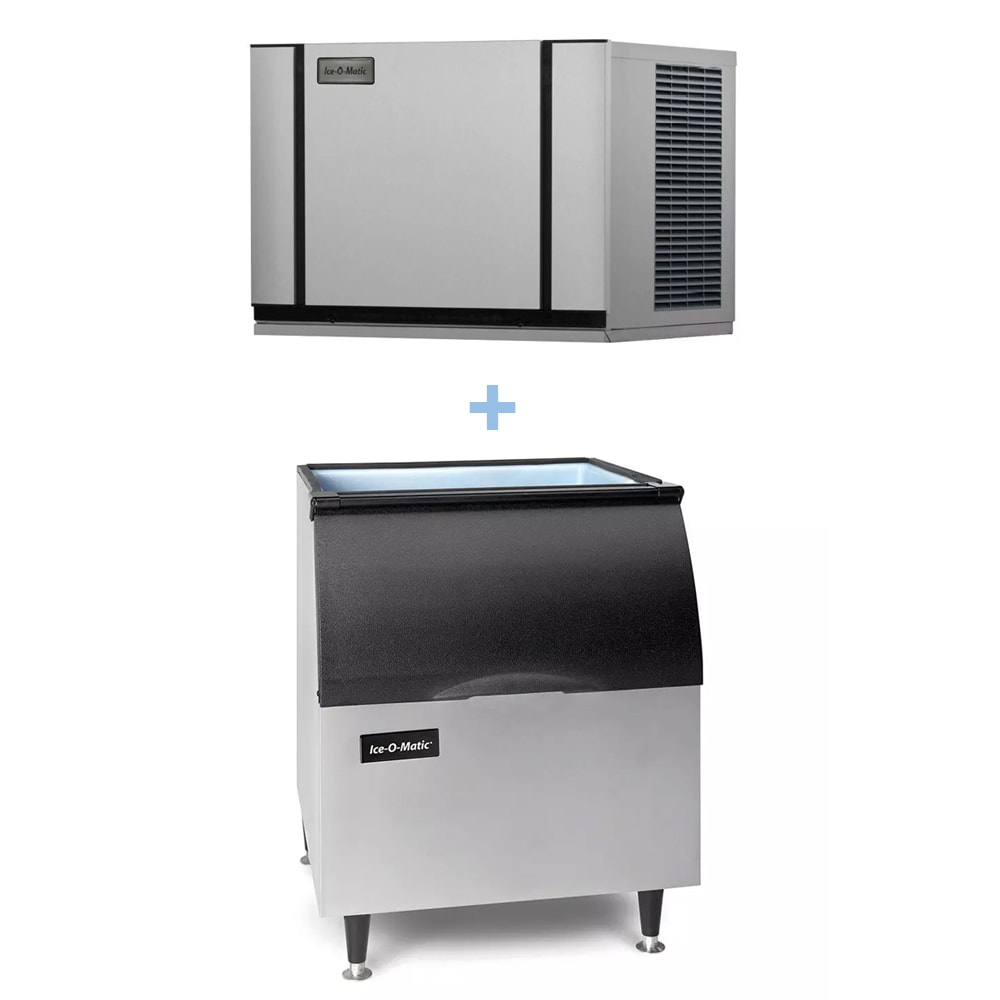

Ice-O-Matic CIM0330FA/B40PS 313 lb Full Cube Ice Maker w/ Bin – 344 lb Storage, Air Cooled, 115v

$3,404.00$3,604.00

  • Part of the Elevation Series
  • Production capacity: 313 lbs./24 hours in ideal conditions
  • AHRI production capacity: 244 lbs./24 hours
  • Produces full-size ice cubes
  • Cube dimensions: 7/8 in. x 7/8 in. x 7/8 in.
  • Air cooled
  • Condenser is self-contained
  • Dual exhaust system for hot air management
  • Plastic food zone resists buildup of residue
  • Dishwasher-safe pieces snap in and out for quick cleanup
  • Interior parts feature PURE ICE antimicrobial defense
  • LED smart display and notification lights
  • Digital diagnostics with by Universal Smart Harness control board
  • 1-touch controls for descaling and sanitizing save time when cleaning
  • Recyclable interior parts and BPA-free plastic are environmentally friendly
  • Ideal incoming water temperature: 40-100 degrees F
  • Ideal ambient temperature: 50-100 degrees F
  • Ideal water pressure: 20-80 PSIG
  • Heat displacement: 4,400 BTU/hour

Plant Based Pros is an Authorized Retailer of Ice-O-Matic products.
Items purchased from Plant Based Pros are:

  • Brand new and in original packaging.
  • Covered by the full manufacturer warranty.
  • Qualified for manufacturer service and support.
  • Questions? Call (800) 522-0517
Clear
SKU: Ice-O-MaticCIM0330FA/B40PS Category:

Description

Ice-O-Matic CIM0330FA/B40PS

Able to perform digital diagnostics, the Ice-O-Matic CIM0330FA/B40PS ice maker notifies users when cleaning is needed through its LED status lights. To streamline cleaning, the machine can self-sanitize and descale with the push of a button. It can produce as much as 313 pounds of ice each day under favorable conditions, and the matching bin can store as much as 344 pounds.

The Ice-O-Matic CIM0330FA/B40PS operates with an air-cooled system that features dual exhaust for improved heat management. Its condenser is self-contained, providing a compact footprint and simplifying installation procedures. To resist the growth of microbes, the unit is treated with an antimicrobial enhancement; its interior food zone is made of smooth plastic that doesn’t have small crevices for bacterial residue to accumulate.

Ice Maker Details

  • Part of the Elevation Series
  • Production capacity: 313 lbs./24 hours in ideal conditions
  • AHRI production capacity: 244 lbs./24 hours
  • Produces full-size ice cubes
  • Cube dimensions: 7/8 in. x 7/8 in. x 7/8 in.
  • Air cooled
  • Condenser is self-contained
  • Dual exhaust system for hot air management
  • Plastic food zone resists buildup of residue
  • Dishwasher-safe pieces snap in and out for quick cleanup
  • Interior parts feature PURE ICE antimicrobial defense
  • LED smart display and notification lights
  • Digital diagnostics with by Universal Smart Harness control board
  • 1-touch controls for descaling and sanitizing save time when cleaning
  • Recyclable interior parts and BPA-free plastic are environmentally friendly
  • Ideal incoming water temperature: 40-100 degrees F
  • Ideal ambient temperature: 50-100 degrees F
  • Ideal water pressure: 20-80 PSIG
  • Heat displacement: 4,400 BTU/hour

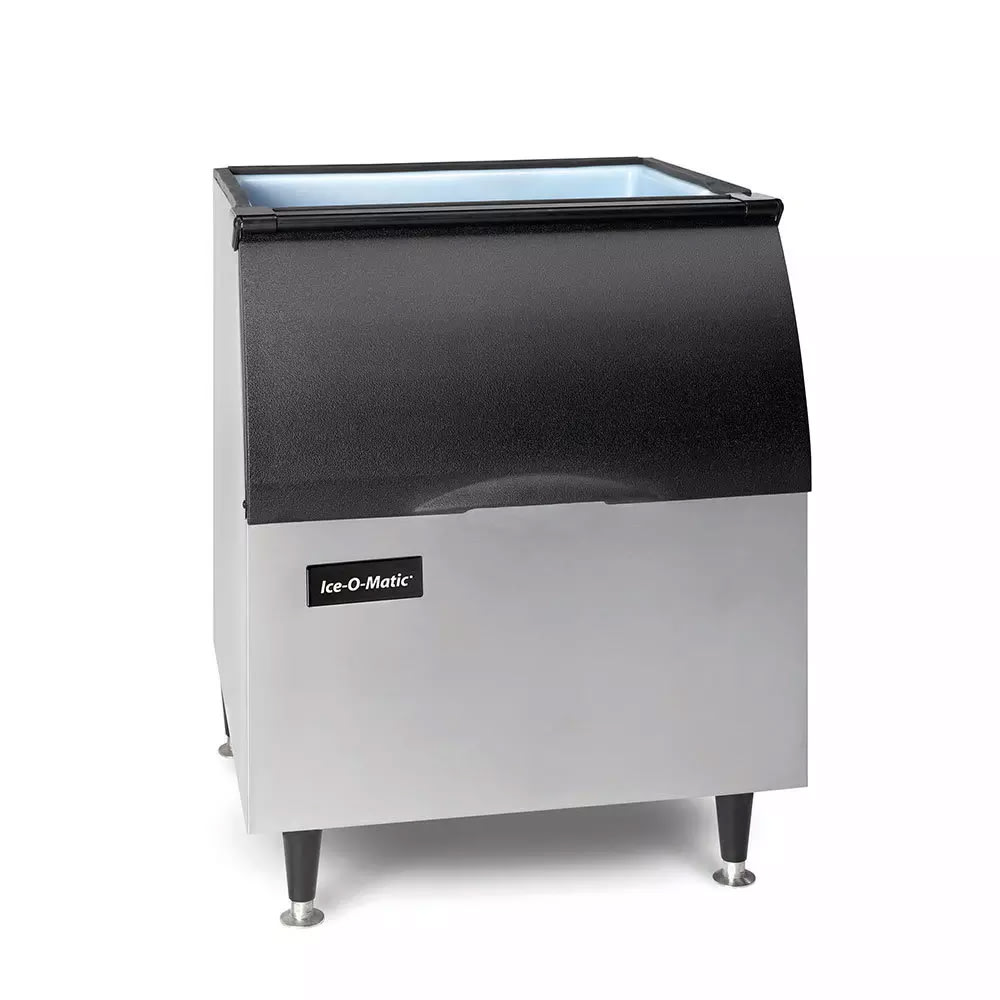

Ice Bin Details

  • 344-lb. capacity
  • Top-hinged, slope-front door
  • Insulated, corrosion-resistant polyethylene liner inside bin
  • Rotocast aluminum exterior resists scratches and dents
  • Designed with 6-in. legs that can be adjusted for improved stability

Dimensions & Utilities

  • Ice maker: 30.25 in. W x 24.25 in. D x 21.25 in. H
  • Bin: 30 in. W x 31 in. D x 371/2 in. H
  • 11 A, 6.69 kW
  • 120 V/60 Hz/1 ph
  • Potable water inlet: 3/8-in. FPT
  • Water outlet: 3/4-in. FPT
  • Electrical connection port: 7/8-in. diameter
  • Electrical connection junction box: 7/8-in. diameter

Elevation Series Modular Cube Ice Maker w/ Bin, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30″ W, approximately 313 lb production/24 hours at 70°/50° (244 lb at 90°/70°), full-size cubes, PURE ICE built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 115v/60/1-ph, 11.0 amps, cULus, NSF, CE; Ice Bin: 344 lb storage capacity, 30″W x 31″D x 37-1/2″H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, durable stainless finish exterior, 6″ legs, NSF
