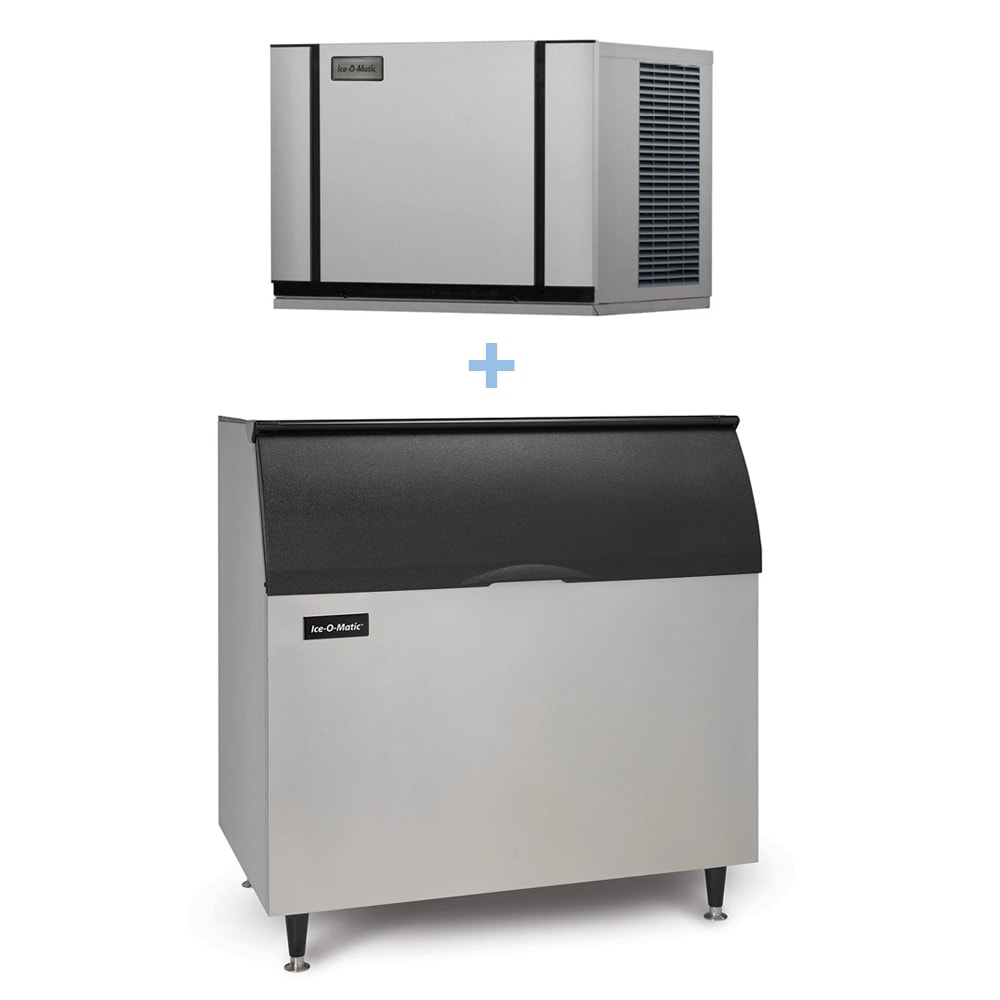

In ideal environmental conditions, the Ice-O-Matic CIM0330HA/B110PS ice machine with bin can produce as much as 305 pounds of ice in a 24-hour period. Because it discharges air from the side as well as the top, it can be safely installed in variety of locations. To optimize performance and cleanliness, it features one-touch controls from sanitizing and descaling. An air-cooled unit, its condenser is self-contained to streamline installation.

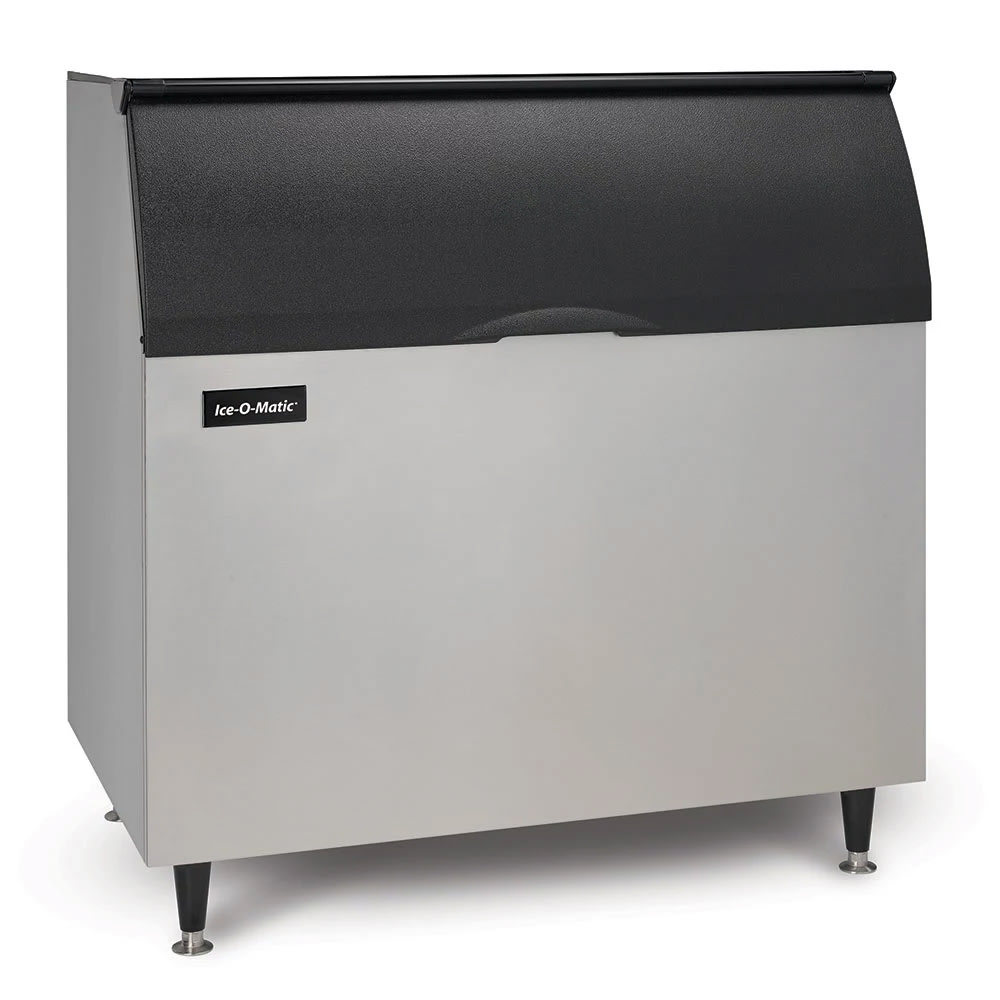

The exterior of the Ice-O-Matic CIM0330HA/B110PS ice maker’s accompanying bin is constructed of aluminum‚Äîa durable metal that provides excellent defense against corrosion. It accommodates as much as 854 pounds of ice and features a sloped front door through which operators can access the interior. Lined with sanitary polyethylene, its interior won’t harbor bacteria or debris.
Ice Maker Details
- Part of the Elevation Series
- 305-lb. maximum daily ice production
- 230-lb. AHRI daily ice production
- Makes half-size cubes
- Cube size: 3/8 in. x 7/8 in. x 7/8 in.
- Dishwasher-safe components in plastic food zone streamline cleaning
- LED display indicates operational status
- 1-touch descaling and sanitizing optimizes performance
- PURE ICE antimicrobial protection is built in to inhibit bacterial growth
- Air cooled
- Dual-exhaust discharges air from side and top
- Self-contained condenser
- Cools with R404A refrigerant
- Ideal incoming water pressure: 20-80 PSIG
- Ideal incoming water temperature: 40-100 degrees F
- Ideal ambient temperature range: 50-100 degrees F
Ice Bin Details
- 854-lb. application capacity
- Top-hinged, sloped front door
- Exterior made of corrosion-resistant aluminum
- Foam insulation preserves ice temperature
- Rests on 6-in. legs
- Interior lined with sanitary polyethylene
Dimensions & Utilities
- Ice maker: 30.25 in. W x 24.25 in. D x 21.25 in. H
- Ice bin: 48 in. W x 31 in. D x 50 in. H
- 11 A
- 115 V/60 Hz/1 ph
Elevation Series Modular Cube Ice Maker w/ Bin, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30″ W, approximately 305 lb production/24 hours at 70°/50° (230 lb at 90°/70°), half-size cubes, PURE ICE built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 115v/60/1-ph, 11.0 amps, cULus, NSF, CE; Ice Bin w/ Filler Panels: 854 lb storage capacity, 48″W x 31″D x 50″H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, durable stainless finish exterior, 6″ legs, NSF
