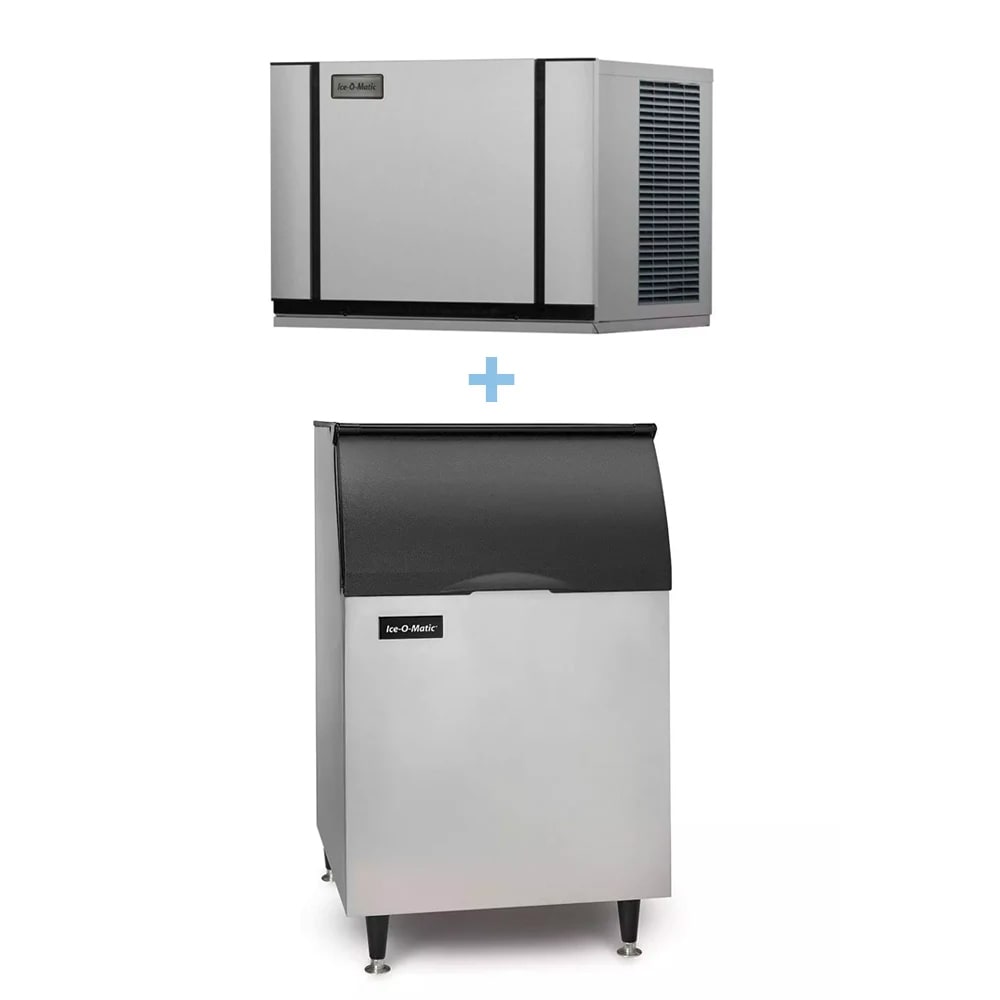

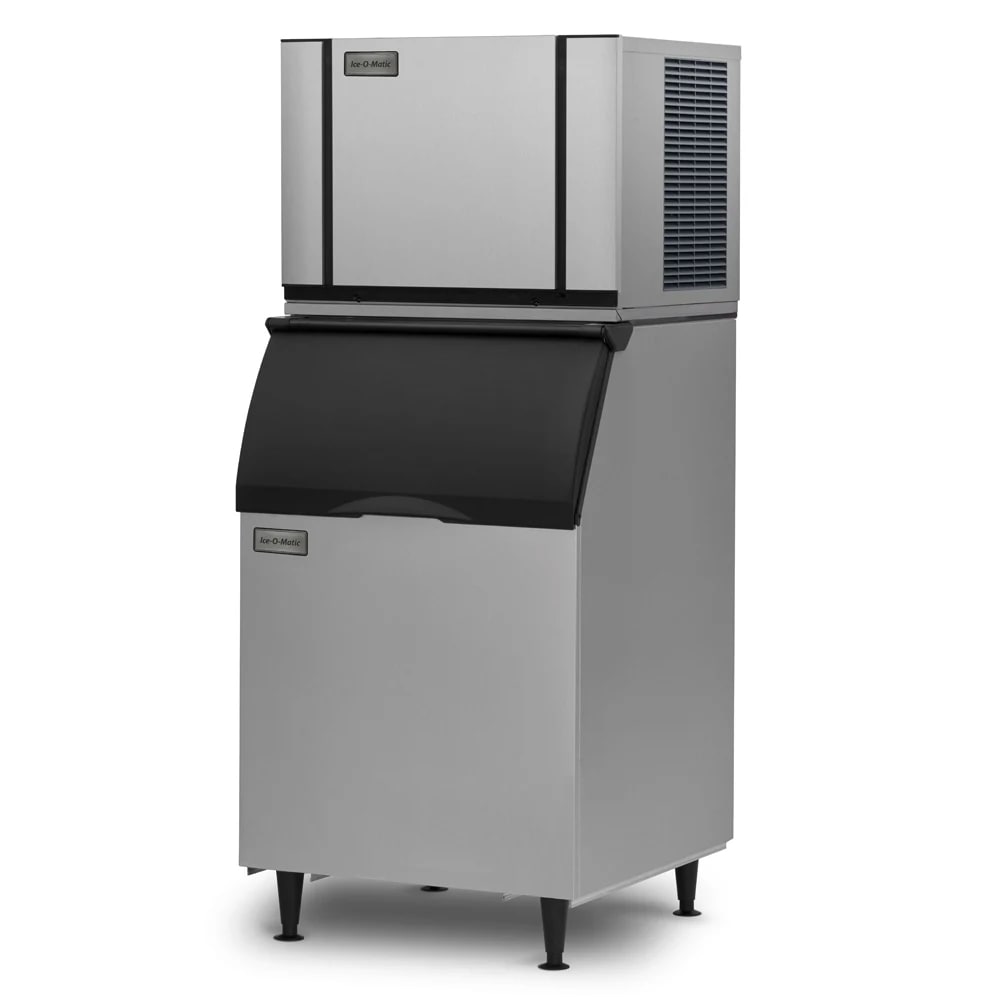

The Ice-O-Matic CIM0330HA/B55PS Elevation ice maker and bin combo makes half-size ice cubes that measure 3/8 inch by 7/8 inch by 7/8 inch and are small enough to fill most of a glass. These cubes form when water rushes over the evaporator and freezes in the grid, giving them their shape. Once fully frozen, the cubes are ejected into the bin, where insulation helps keep them solid and ready for use.
This Ice-O-Matic CIM0330HA/B55PS ice machine and bin has several features to speed up cleaning. Its one-touch cleaning cycle helps purge sediment from the interior, and when it needs thorough cleaning, an LED light illuminates to ensure operators are aware of the problem. The food zone‚Äîthe area where ice is made‚Äîcontains removable parts that snap out of place. These parts are dishmachine safe, greatly cutting down on cleaning times. Made of smooth plastic, the food zone eliminates sharp, hard-to-clean corners. After cleaning, users can snap the parts back into place and resume operation.

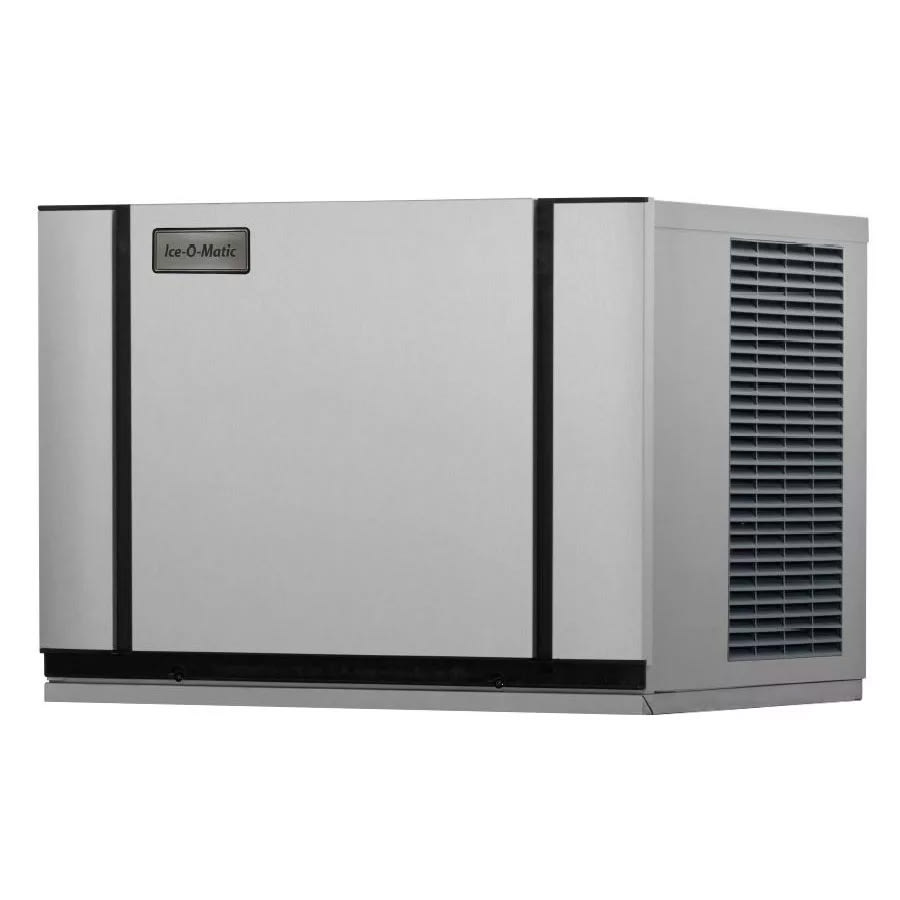

Ice Machine Details
- Part of the Elevation series
- 305-lb. maximum daily ice production
- Makes half-size cubes
- Half cube size: 3/8 in. x 7/8 in. x 7/8 in.
- Agion antimicrobial protection helps prevent unwanted bacteria
- LED light reminds users to clean the machine if necessary
- 1-touch button for descaling or sanitizing unit
- Plastic food zone without dirt-trapping creases and corners
- Dishwasher-safe food zone components reduce the time needed to complete cleaning tasks
- Smart Harness control board provides diagnostic information
- Air-cooled condenser expels air out the top and side to prevent overheating
- R404A refrigerant
- 4,400-BTU heat transfer capacity

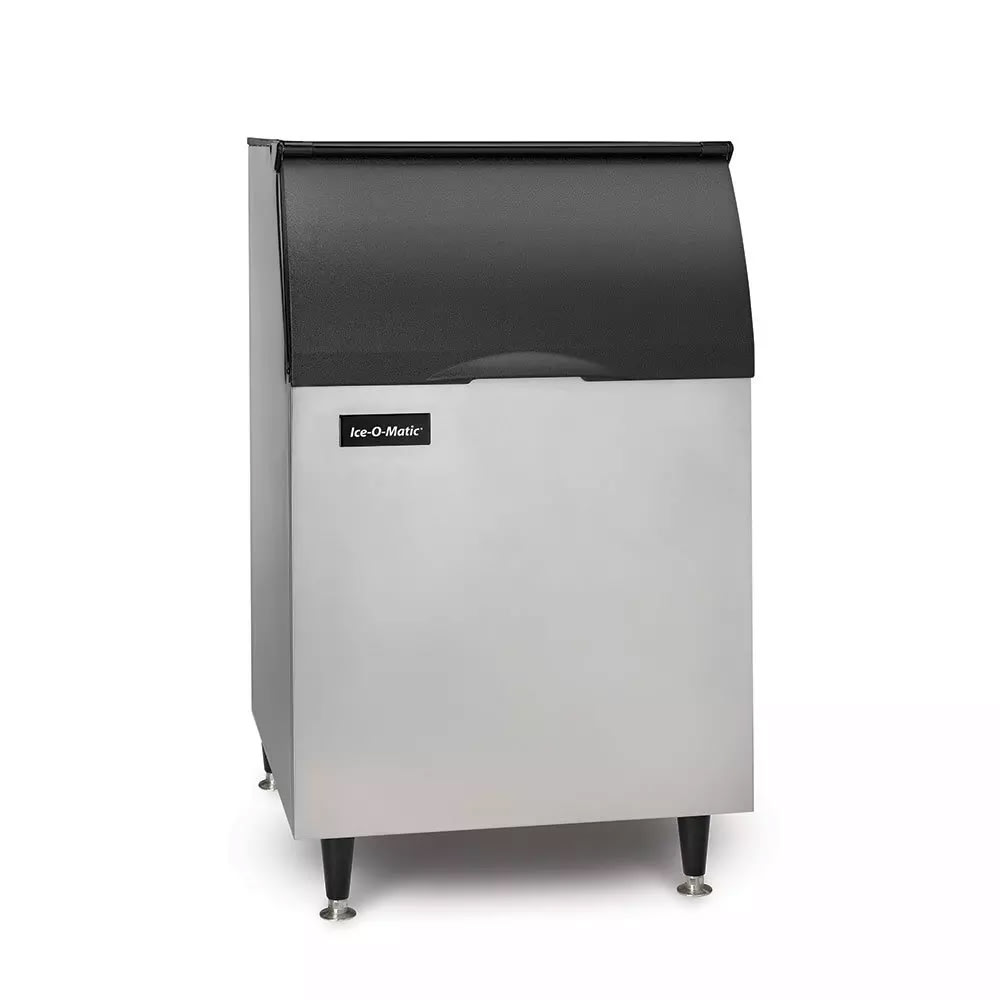

Ice Bin Details
- 510-lb. ice storage capacity
- Insulated construction helps preserve ice cubes and prevents melting
- Sloped door provides access to ice
- Polyethylene interior and aluminum exterior
- Legs are adjustable from 6-7 in.
Ideal Operating Conditions
- Ambient air temperature: 50-100 degrees F
- Water temperature: 40-100 degrees F
- Incoming water pressure: 20-80 PSIG
Dimensions & Utilities
- Bin: 30 in. W x 31 in. D x 50-51 in. H (depending on adjustable legs)
- Ice maker: 30.25 in. W x 24.25 in. D x 21.25 in. H
- 11 A, 6.69 kW
- 115 V/60 Hz/1 ph
Elevation Series Modular Cube Ice Maker w/ Bin, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30″ W, approximately 305 lb production/24 hours at 70°/50° (230 lb at 90°/70°), half-size cubes, PURE ICE built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 115v/60/1-ph, 11.0 amps, cULus, NSF, CE; Ice Bin: 510 lb storage capacity, 30″W x 31″D x 50″H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, durable stainless finish exterior, 6″ legs, NSF
