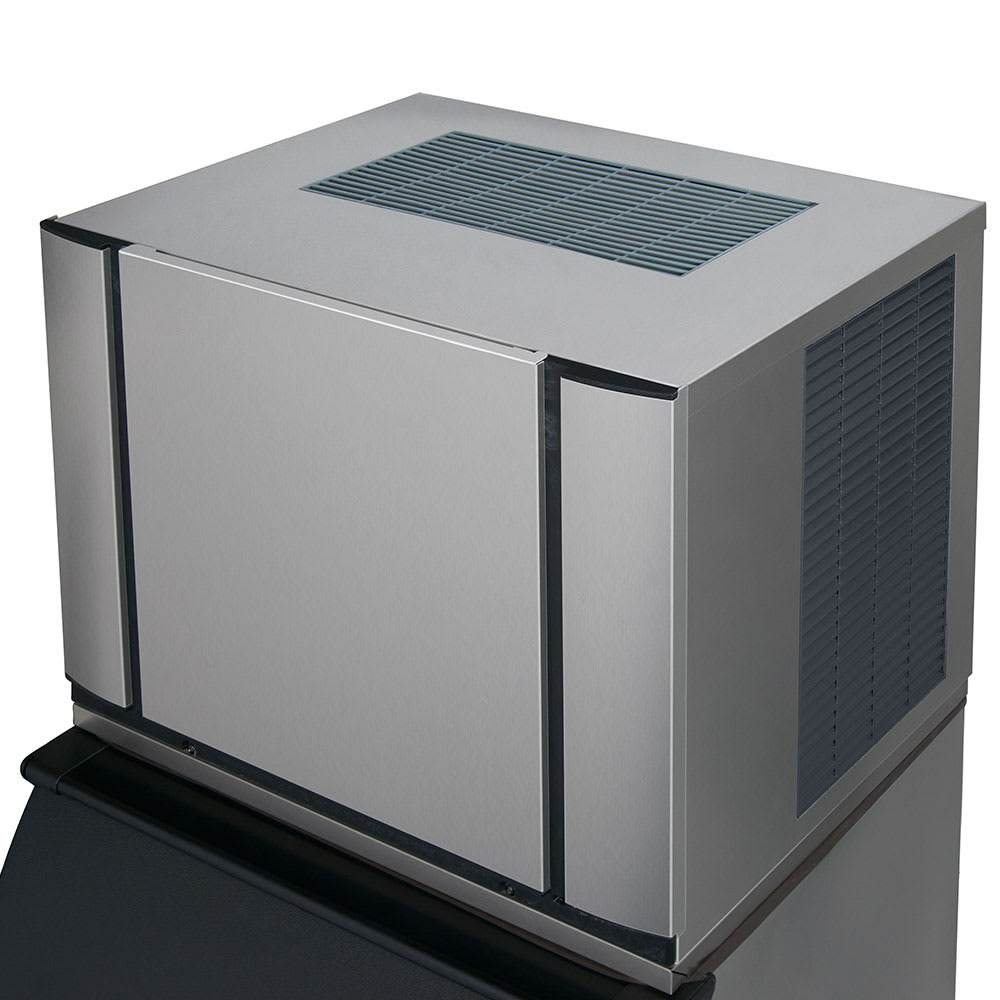

Ice-O-Matic CIM0436HW 30″ Elevation Series Half Cube Ice Machine Head – 500 lb/24 hr, Water Cooled, 208/230v/1ph

Making a maximum of 465 pounds of ice per day, the Ice-O-Matic CIM0436HW ice maker head is water cooled with a self-contained condenser, though when environmental conditions aren’t ideal, it makes closer to 270 pounds of half-size ice per day. Constructed of plastic, the food zone has removable components that can snap out and be placed in the dishwasher for cleaning.

The Ice-O-Matic CIM0436HW half-cube ice machine head has an LED status display that users can monitor to read operation status updates. Coated in PURE ICE antimicrobial, bacterial growth is slowed to reduce the spread of germs in a busy environment. Descaling and sanitizing can be performed with a single touch of a button.

Product Details

• Part of the Elevation Series
• 465-lb. daily ice production
• 270-lb. AHRI daily ice production at 70-90 degrees F
• Makes half-size cubes
• Half-size cube size: ⁷/₈ in. W x ⁷/₈ in. D x ⁷/₈ in. H
• Self-contained, water-cooled condenser
• LED status display
• Plastic food zone

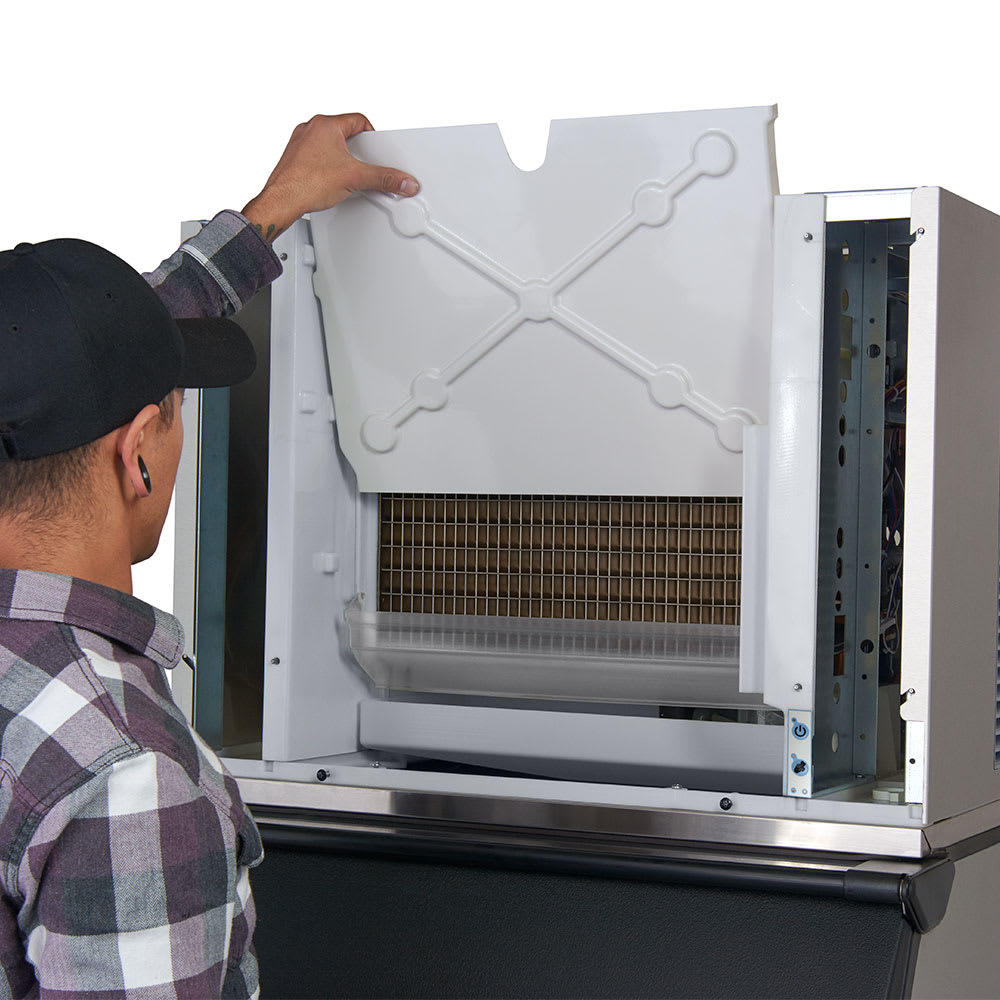

• Removable, dishwasher-safe food zone components

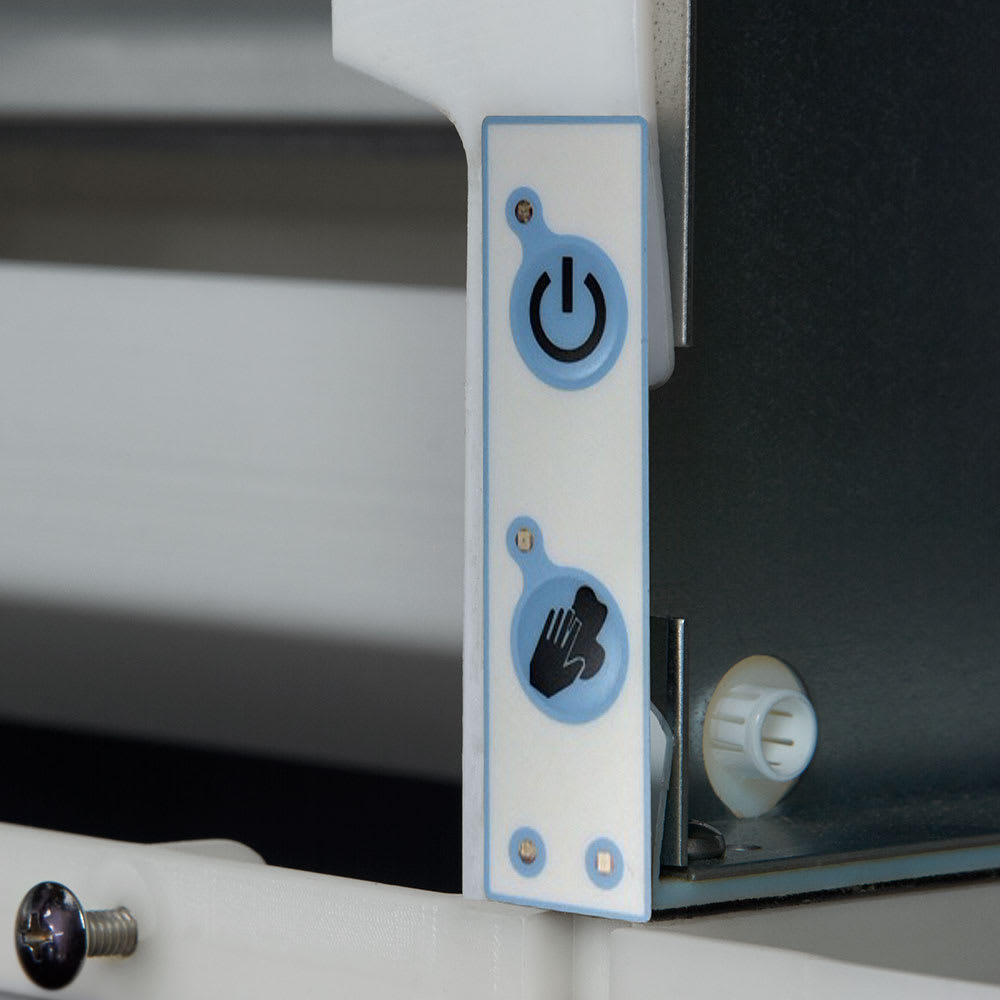

• 1-touch descaling and sanitizing controls
• PURE ICE antimicrobial agent
• Ideal incoming water pressure: 20-80 PSIG
• Ideal incoming water temperature: 40-100 degrees F
• Ideal ambient temperature range: 50-100 degrees F
• 5,100-BTU heat transfer capacity

Dimensions & Utilities

• 30.25 in. W x 24.25 in. D x 21.25 in. H
• 6.1 A, 4.37 kW
• 208-230 V/60 Hz/1 ph

Elevation Series Modular Cube Ice Maker, water-cooled, self-contained condenser, 30″ W, approximately 500 lb production/24 hours at 70°/50° (420 lb at 90°/70°), half-size cubes, Agion built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 208-230v/60/1-ph, 6.1 amps, cULus, NSF, CE
