Ice-O-Matic CIM0520FA/B40PS 561 lb Full Cube Ice Maker w/ Bin – 344 lb Storage, Air Cooled, 115v

$4,063.00

  • Part of the Elevation Series
  • 561-lb. maximum daily ice production
  • 432-lb. daily ice production at 90 degrees F air and 70 degrees F water
  • Air-cooled system
  • Produces full-cube ice
  • Space-efficient narrow design
  • Dual exhaust system discharges air from top and side to reduce airflow blockage
  • Smart LED light notifies staff of status and cleaning requirements
  • PURE ICE antimicrobial defense
  • 1-touch descaling/sanitization
  • Plastic food zone decreases areas where food matter can buildup
  • Warewasher-safe components snap out for convenient cleaning
  • Universal Smart Harness control board
  • Full-cube size: 7/8 in. x 7/8 in. x 7/8 in.
  • Ideal ambient air temperature: 50-100 degrees F
  • Ideal incoming water temperature: 40-100 degrees F
  • Ideal incoming water pressure: 20-80 PSI
  • 6,252-BTU heat transfer capacity
  • Ideal clearance: 6 in. for air intake and exhaust

Plant Based Pros is an Authorized Retailer of Ice-O-Matic products.
Items purchased from Plant Based Pros are:

  • Brand new and in original packaging.
  • Covered by the full manufacturer warranty.
  • Qualified for manufacturer service and support.
  • Questions? Call (800) 522-0517
SKU: Ice-O-MaticCIM0520FA/B40PS Category:

Description

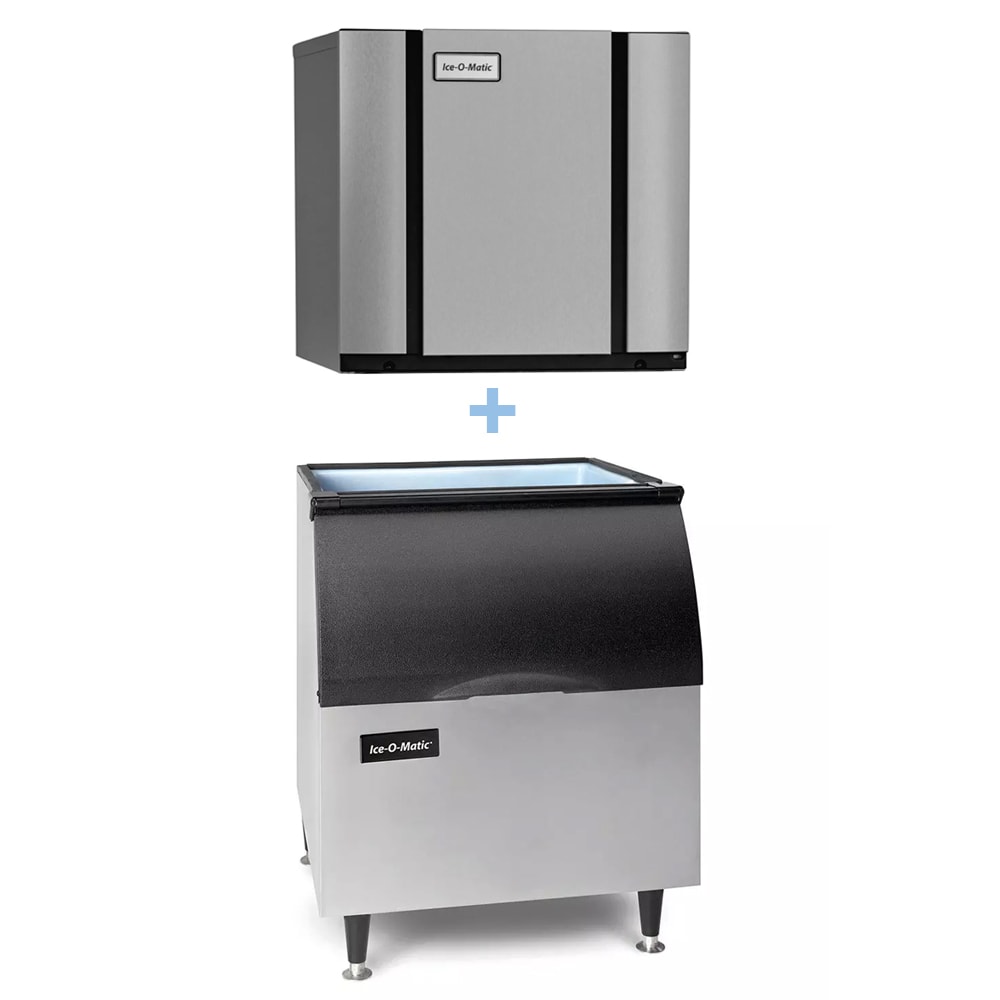

Ice-O-Matic CIM0520FA/B40PS

Reducing labor and saving time, the Ice-O-Matic CIM0520FA/B40PS ice maker and bin’s plastic food zone streamlines cleaning. Its full-cube ice is a popular variety for beverages since its large size won’t melt quickly. With top and side venting, the machine head divides its heat discharge to lower the risk of exhaust obstruction and optimize unit operations.

The Ice-O-Matic CIM0520FA/B40PS air-cooled ice machine and bin’s 242-pound holding capacity is ideal for serving ice in small-scale applications such as waiting rooms and lobbies. For strength and chill retention, the bin is insulated, and the unit has 6-inch legs that can be adjusted to uneven floors.

Ice Maker

  • Part of the Elevation Series
  • 561-lb. maximum daily ice production
  • 432-lb. daily ice production at 90 degrees F air and 70 degrees F water
  • Air-cooled system
  • Produces full-cube ice
  • Space-efficient narrow design
  • Dual exhaust system discharges air from top and side to reduce airflow blockage
  • Smart LED light notifies staff of status and cleaning requirements
  • PURE ICE antimicrobial defense
  • 1-touch descaling/sanitization
  • Plastic food zone decreases areas where food matter can buildup
  • Warewasher-safe components snap out for convenient cleaning
  • Universal Smart Harness control board
  • Full-cube size: 7/8 in. x 7/8 in. x 7/8 in.
  • Ideal ambient air temperature: 50-100 degrees F
  • Ideal incoming water temperature: 40-100 degrees F
  • Ideal incoming water pressure: 20-80 PSI
  • 6,252-BTU heat transfer capacity
  • Ideal clearance: 6 in. for air intake and exhaust

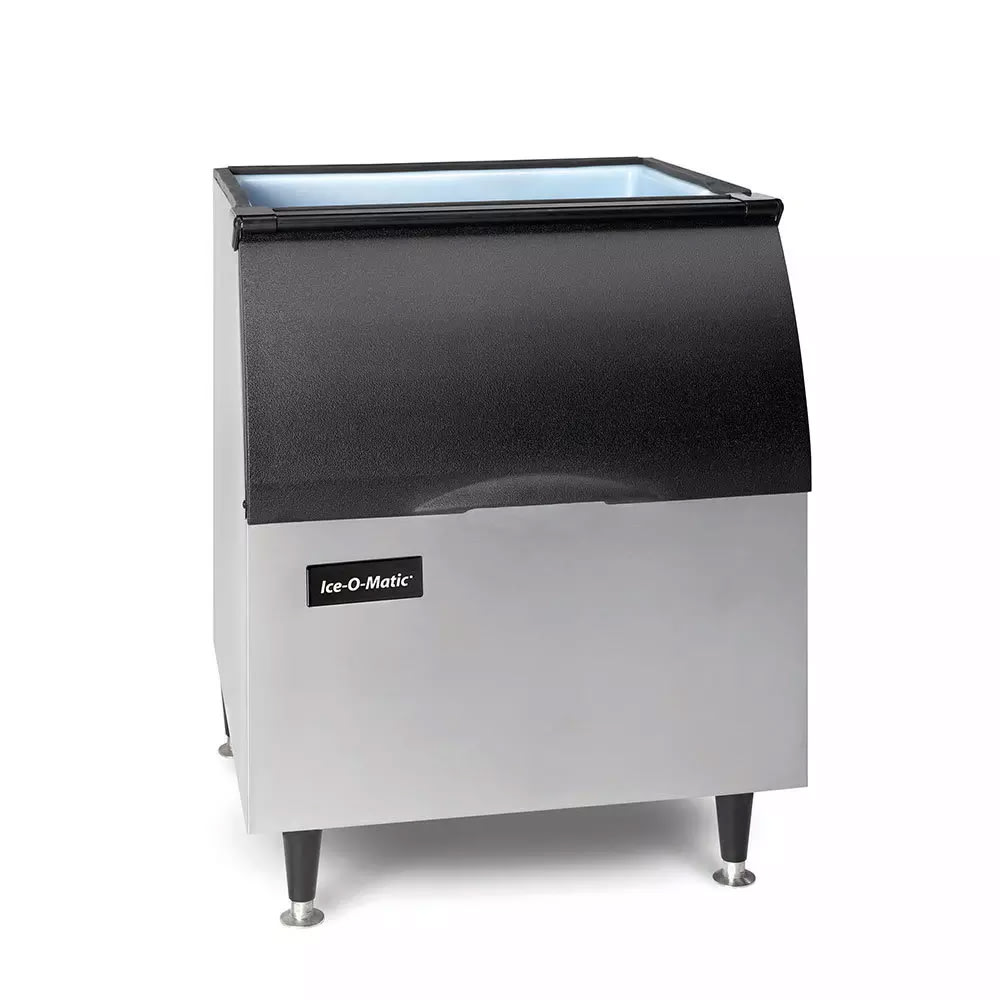

Ice Bin

  • 344-lb. bin capacity
  • Sloped front door
  • Polyethylene interior simplifies cleaning
  • Resilient aluminum finish
  • Foam insulation maximizes chill retention
  • 6-in. adjustable legs

Dimensions & Utilities

Ice Maker

  • 22.25 in. W x 24.25 in. D x 21.25 in. H
  • 17.8 A, 5.87 kW
  • 115 V/60 Hz/1 ph

Ice Bin

  • 30 in. W x 31 in. D x 371/2 in. H

Elevation Series Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 22″ W, approximately 561 lb production/24 hours at 70°/50° (432 lb at 90°/70°), full-size cubes, PURE ICE built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE; Ice Bin w/ Bin Top: 344 lb storage capacity, 30″W x 31″D x 37-1/2″H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, durable aluminum exterior, 6″ legs, NSF
