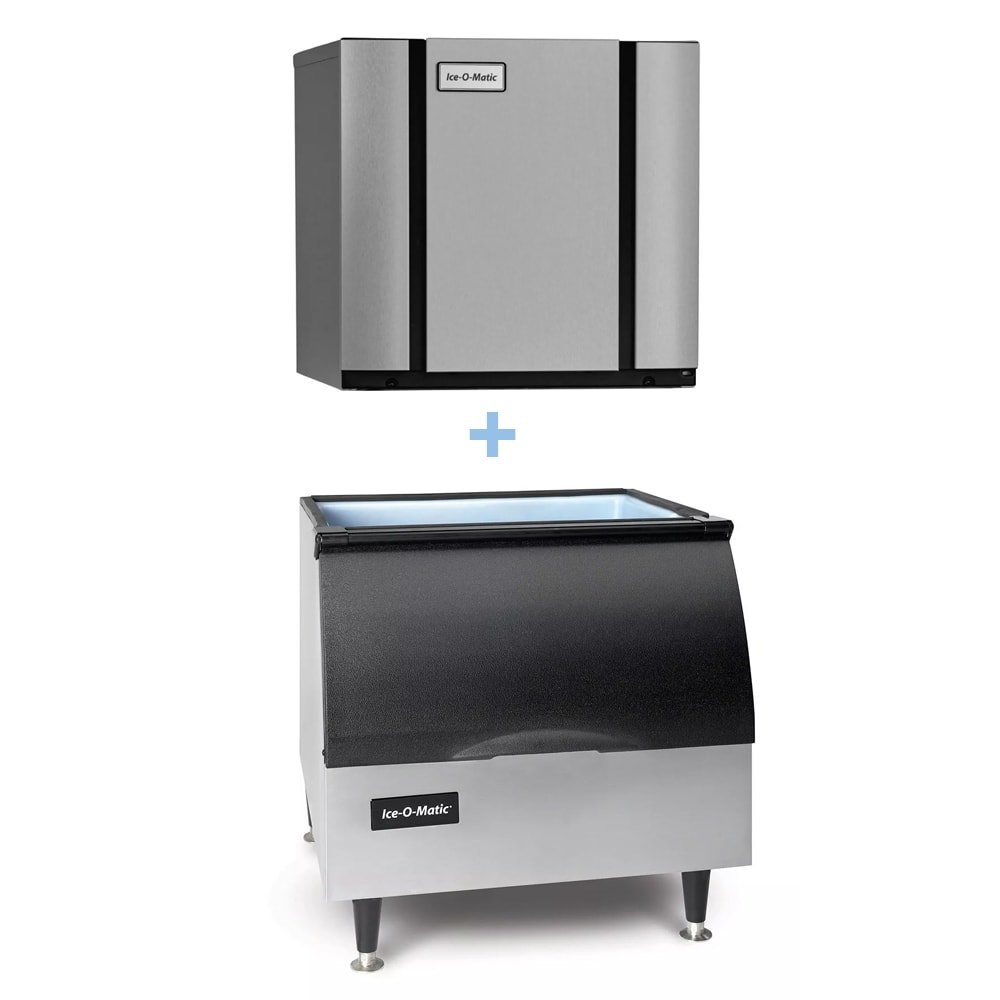

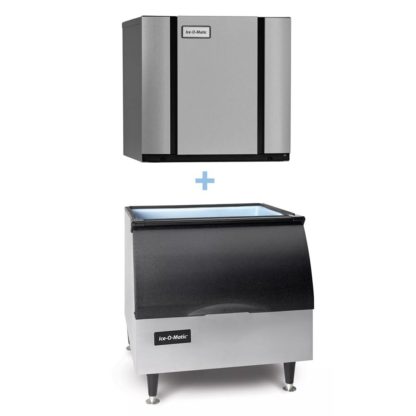

Ice-O-Matic CIM0520HA/B25PP 561 lb Half Cube Ice Maker w/ Bin – 242 lb Storage, Air Cooled, 115v

$3,926.00

  • Part of the Elevation Series
  • 561-lb. maximum daily ice production
  • 432-lb. daily ice production at 90 degrees F air and 70 degrees F water
  • Air-cooled system
  • Produces half-cube ice
  • Narrow design uses space efficiently
  • Dual exhaust system releases air from side and top to minimize exhaust obstruction
  • Smart LED light gives staff notifications for cleaning needs and machine status
  • PURE ICE antimicrobial defense
  • 1-touch descaling/sanitization
  • Plastic food zone
  • Snap-out components can be run through the dishwasher
  • Universal Smart Harness control board
  • Full-cube size: 7/8 in. x 7/8 in. x 7/8 in.
  • Ideal ambient air temperature: 50-100 degrees F
  • Ideal incoming water temperature: 40-100 degrees F
  • Ideal incoming water pressure: 20-80 PSI
  • 6,252-BTU heat transfer capacity
  • Ideal clearance: 6 in. for air intake and exhaust

Plant Based Pros is an Authorized Retailer of Ice-O-Matic products.
Items purchased from Plant Based Pros are:

  • Brand new and in original packaging.
  • Covered by the full manufacturer warranty.
  • Qualified for manufacturer service and support.
  • Questions? Call (800) 522-0517
SKU: Ice-O-MaticCIM0520HA/B25PP Category:

Description

Ice-O-Matic CIM0520HA/B25PP

The Ice-O-Matic CIM0520HA/B25PP ice maker and bin works well in casual drinking and dining establishments, as its half-cube ice is popular in soft drinks for its swift cooling power. It has one-touch descaling and antimicrobial defense, and both work to protect the machine’s interior from contaminant buildup. Splitting airflow to reduce potential exhaust obstruction, side and top vents discharge heated air from the head.

Ideal for small-scale applications, the Ice-O-Matic CIM0520HA/B25PP air-cooled ice machine and bin can hold 242 pounds of ice. Increasing ice preservation, the bin is insulated with foam to strengthen it and boost cold retention. A set of 6-inch legs are mounted to the machine and can be adjusted as necessary to account for uneven floors.

Ice Maker

  • Part of the Elevation Series
  • 561-lb. maximum daily ice production
  • 432-lb. daily ice production at 90 degrees F air and 70 degrees F water
  • Air-cooled system
  • Produces half-cube ice
  • Narrow design uses space efficiently
  • Dual exhaust system releases air from side and top to minimize exhaust obstruction
  • Smart LED light gives staff notifications for cleaning needs and machine status
  • PURE ICE antimicrobial defense
  • 1-touch descaling/sanitization
  • Plastic food zone
  • Snap-out components can be run through the dishwasher
  • Universal Smart Harness control board
  • Full-cube size: 7/8 in. x 7/8 in. x 7/8 in.
  • Ideal ambient air temperature: 50-100 degrees F
  • Ideal incoming water temperature: 40-100 degrees F
  • Ideal incoming water pressure: 20-80 PSI
  • 6,252-BTU heat transfer capacity
  • Ideal clearance: 6 in. for air intake and exhaust

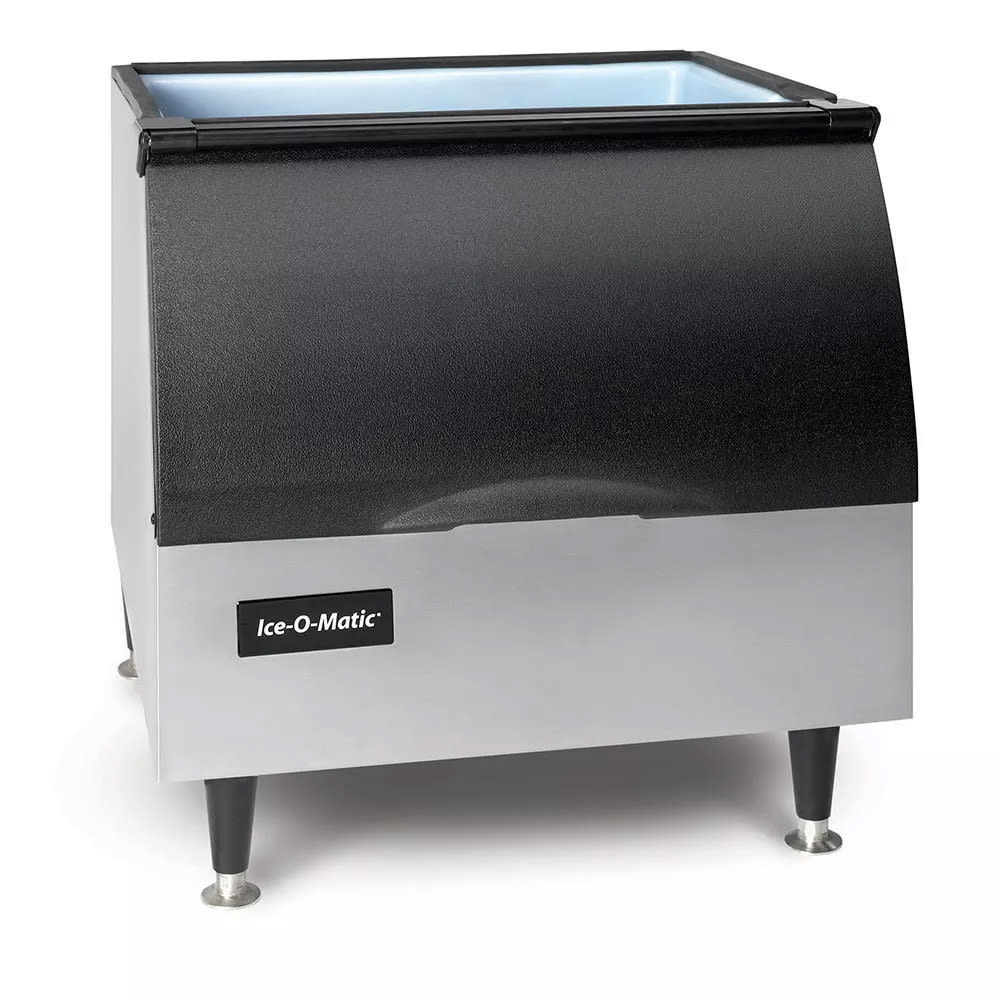

Ice Bin

  • 242-lb. bin capacity
  • Sloped front door
  • Polyethylene interior enhances cleaning
  • Rotocast exterior with aluminum finish
  • Foam insulation boosts chill retention
  • 6-in. adjustable legs

Dimensions & Utilities

Ice Maker

  • 22.25 in. W x 24.25 in. D x 21.25 in. H
  • 17.8 A, 5.87 kW
  • 115 V/60 Hz/1 ph

Ice Bin

  • 30 in. W x 31 in. D x 28 in. H

Elevation Series Modular Cube Ice Maker w/ Bin, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 22″ W, approximately 561 lb production/24 hours at 70°/50° (432 lb at 90°/70°), half-size cubes, PURE ICE built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 115v/60/1-ph, 17.8 amps, cULus, NSF, CE; Ice Bin w/ Bin Top: 242 lb storage capacity, 30″W x 31″D x 28″H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, rotocast exterior finish, 6″ legs, NSF
