Ice-O-Matic CIM0520HA/B40PS 561 lb Half Cube Ice Maker w/ Bin – 344 lb Storage, Air Cooled, 115v

$3,870.00$4,070.00

  • Part of the Elevation Series
  • 561-lb. maximum daily ice production
  • 432-lb. daily ice production at 90 degrees F air and 70 degrees F water
  • Air-cooled system
  • Produces half-cube ice
  • Narrow space-efficient design
  • Dual exhaust system discharges air from top and side to limit airflow blockage
  • Smart LED light notifies staff of machine state and cleaning requirements
  • PURE ICE antimicrobial defense
  • 1-touch descaling/sanitization
  • Plastic food zone
  • Snap-out dishmachine-safe components
  • Universal Smart Harness control board
  • Full-cube size: 7/8 in. x 7/8 in. x 7/8 in.
  • Ideal ambient air temperature: 50-100 degrees F
  • Ideal incoming water temperature: 40-100 degrees F
  • Ideal incoming water pressure: 20-80 PSI
  • 6,252-BTU heat transfer capacity
  • Ideal clearance: 6 in. for air intake and exhaust

Plant Based Pros is an Authorized Retailer of Ice-O-Matic products.
Items purchased from Plant Based Pros are:

  • Brand new and in original packaging.
  • Covered by the full manufacturer warranty.
  • Qualified for manufacturer service and support.
  • Questions? Call (800) 522-0517
Clear
SKU: Ice-O-MaticCIM0520HA/B40PS Category:

Description

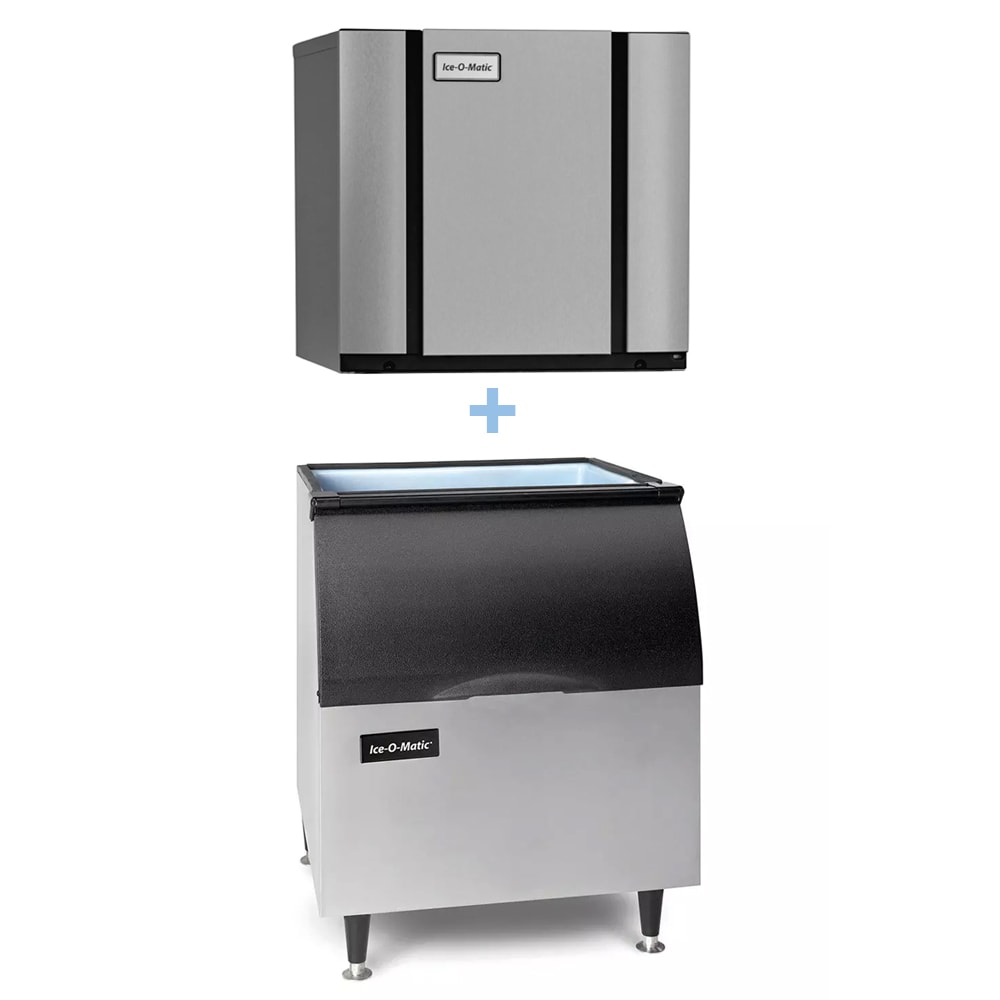

Ice-O-Matic CIM0520HA/B40PS

The Ice-O-Matic CIM0520HA/B40PS ice maker and bin makes half-cube ice, which is great because it cools drinks quickly. Decreasing potential exhaust obstruction, it’s built with a dual exhaust system that expels heated air through side and top vents. Antimicrobial defense and one-touch descaling work in tandem to keep the interior of the ice machine clean and free of contaminant buildups.

The Ice-O-Matic CIM0520HA/B40PS air-cooled ice machine’s bin is built with foam insulation, which strengthens the bin’s structure and improves thermal retention to preserve ice for a lengthened period of time. It has a polyethylene interior to simplify cleaning for establishment staff. The bin is mounted on 6-inch legs that can be adjusted to balance the unit out on uneven floors.

Ice Maker

  • Part of the Elevation Series
  • 561-lb. maximum daily ice production
  • 432-lb. daily ice production at 90 degrees F air and 70 degrees F water
  • Air-cooled system
  • Produces half-cube ice
  • Narrow space-efficient design
  • Dual exhaust system discharges air from top and side to limit airflow blockage
  • Smart LED light notifies staff of machine state and cleaning requirements
  • PURE ICE antimicrobial defense
  • 1-touch descaling/sanitization
  • Plastic food zone
  • Snap-out dishmachine-safe components
  • Universal Smart Harness control board
  • Full-cube size: 7/8 in. x 7/8 in. x 7/8 in.
  • Ideal ambient air temperature: 50-100 degrees F
  • Ideal incoming water temperature: 40-100 degrees F
  • Ideal incoming water pressure: 20-80 PSI
  • 6,252-BTU heat transfer capacity
  • Ideal clearance: 6 in. for air intake and exhaust

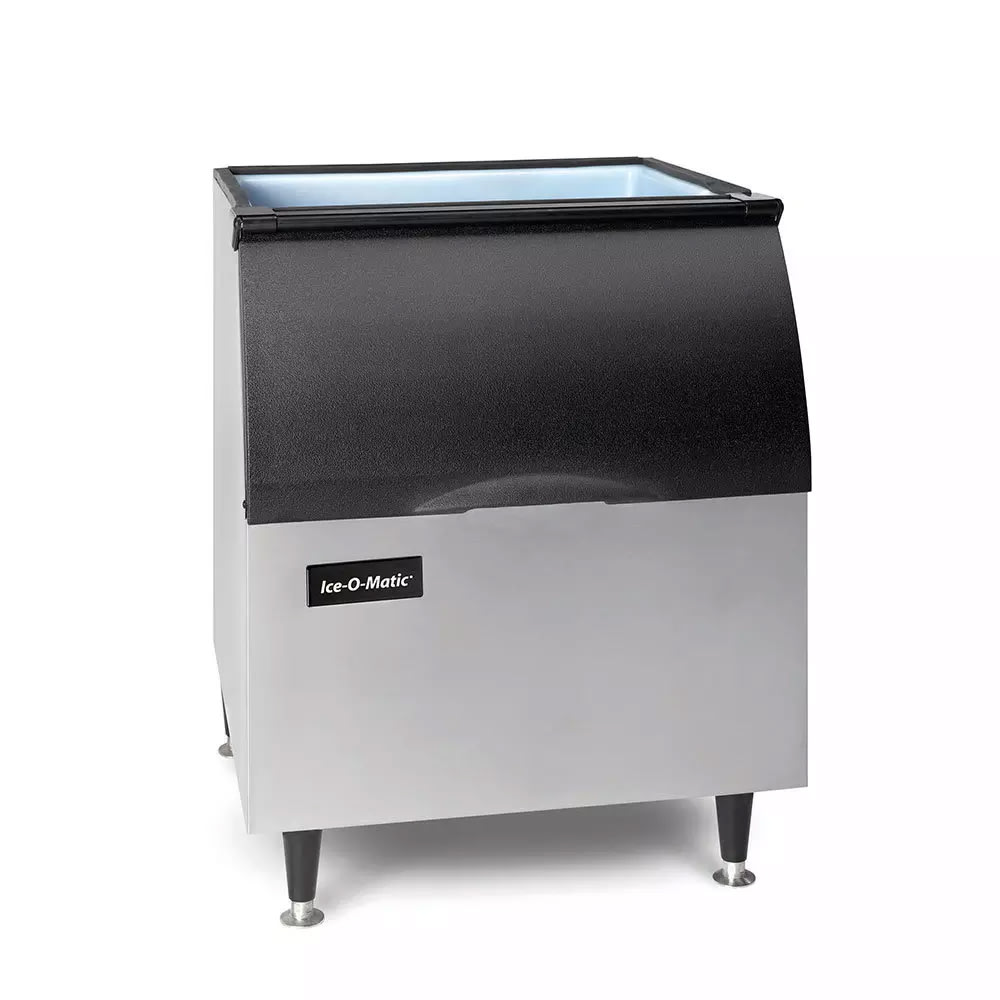

Ice Bin

  • 344-lb. bin capacity
  • Sloped front door
  • Polyethylene interior optimizes bin cleaning
  • Rotocast exterior with aluminum finish
  • Foam insulation maximizes chill retention
  • 6-in. adjustable legs

Dimensions & Utilities

Ice Maker

  • 22.25 in. W x 24.25 in. D x 21.25 in. H
  • 17.8 A, 5.87 kW
  • 115 V/60 Hz/1 ph

Ice Bin

  • 30 in. W x 31 in. D x 371/2 in. H

Elevation Series Modular Cube Ice Maker w/ Bin, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 22″ W, approximately 561 lb production/24 hours at 70°/50° (432 lb at 90°/70°), half-size cubes, PURE ICE built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 115v/60/1-ph, 17.8 amps, cULus, NSF, CE; Ice Bin w/ Bin Top: 344 lb storage capacity, 30″W x 31″D x 37-1/2″H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, durable stainless finish exterior, 6″ legs, NSF
