Ice-O-Matic CIM0520HA/B42PS 561 lb Half Cube Ice Maker w/ Bin – 351 lb Storage, Air Cooled, 115v

$3,744.00$3,944.00

  • Part of the Elevation Series
  • 561-lb. maximum daily ice production
  • 432-lb. daily ice production at 90 degrees F air and 70 degrees F water
  • Air-cooled system
  • Produces half-cube ice
  • Narrow, space-efficient design
  • Dual exhaust system releases air from side and top to counteract exhaust blockage
  • Smart LED light alerts staff to cleaning needs and machine state
  • PURE ICE antimicrobial defense
  • 1-touch descaling/sanitization
  • Plastic food zone
  • Snap-out dishwasher-safe components
  • Universal Smart Harness control board
  • Full cube size: 7/8 in. x 7/8 in. x 7/8 in.
  • Ideal ambient air temperature: 50-100 degrees F
  • Ideal incoming water temperature: 40-100 degrees F
  • Ideal incoming water pressure: 20-80 PSI
  • 6,252-BTU heat transfer capacity
  • Ideal clearance: 6 in. for air intake and exhaust

Plant Based Pros is an Authorized Retailer of Ice-O-Matic products.
Items purchased from Plant Based Pros are:

  • Brand new and in original packaging.
  • Covered by the full manufacturer warranty.
  • Qualified for manufacturer service and support.
  • Questions? Call (800) 522-0517
Clear
SKU: Ice-O-MaticCIM0520HA/B42PS Category:

Description

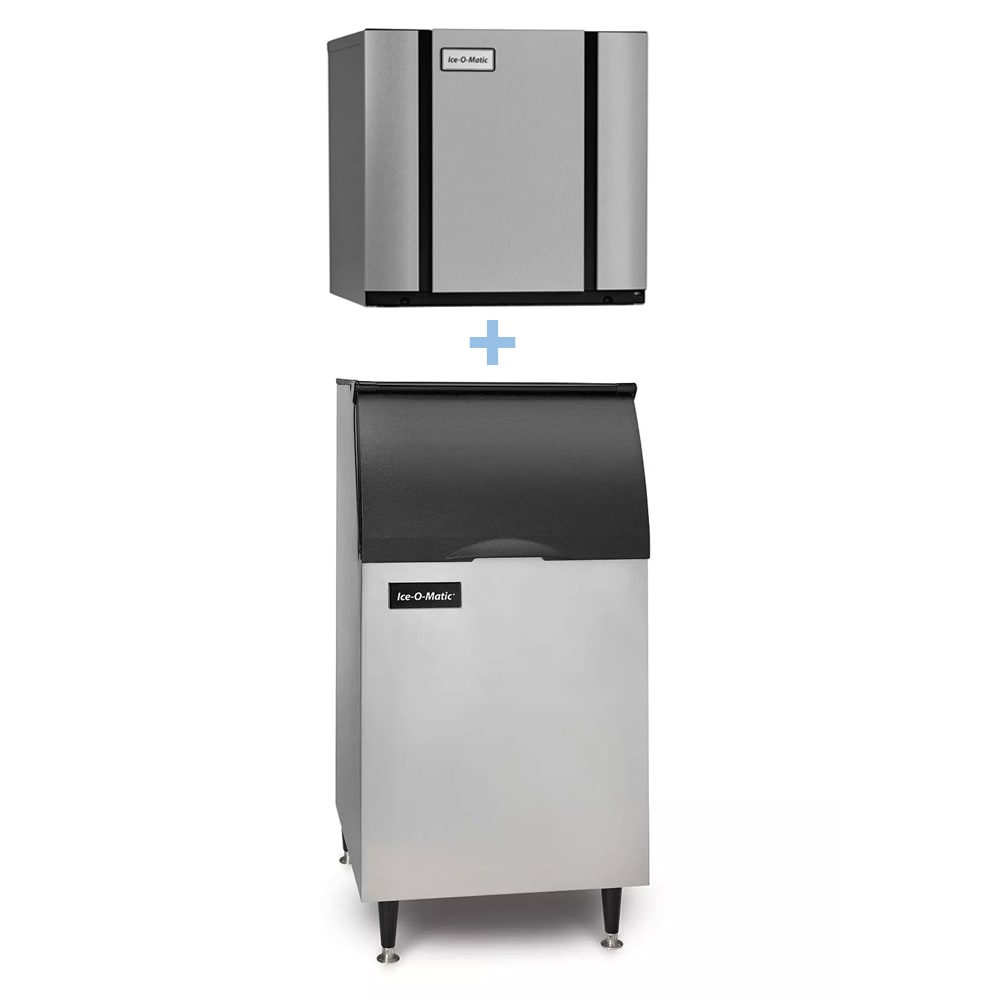

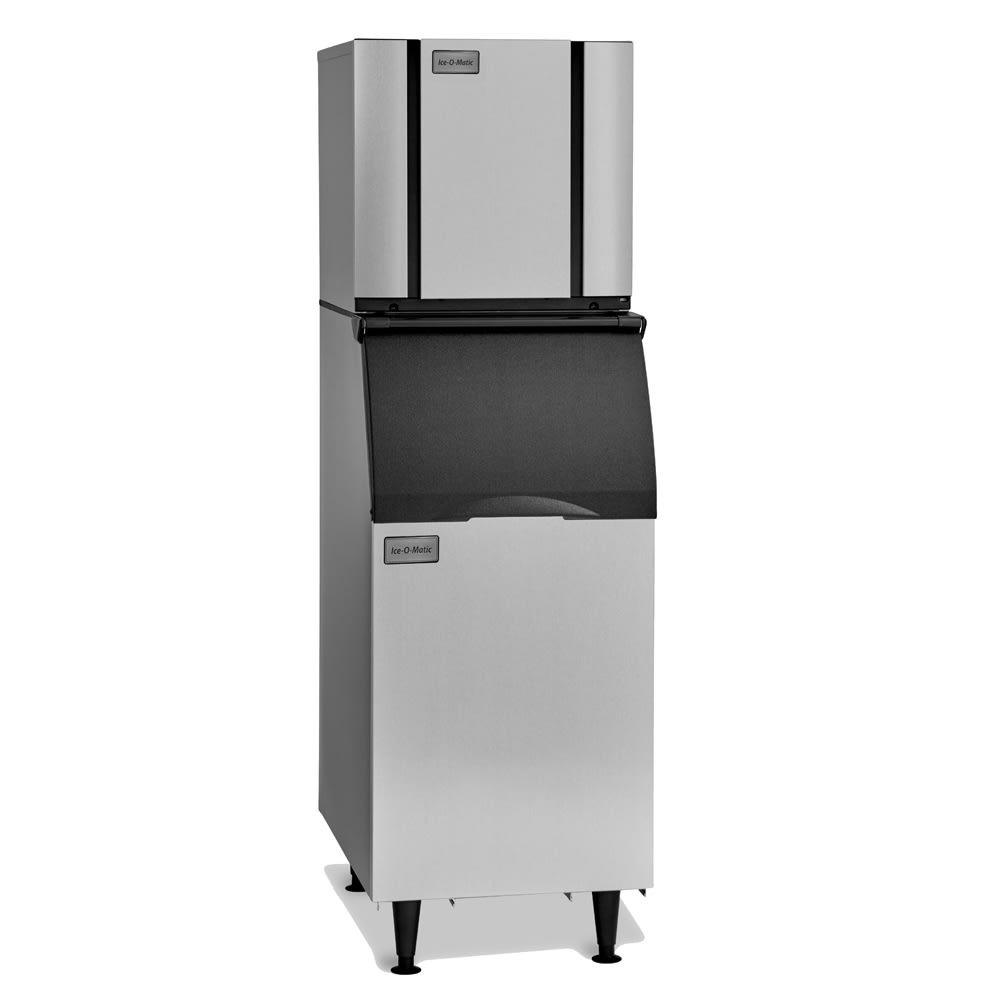

Ice-O-Matic CIM0520HA/B42PS

The Ice-O-Matic CIM0520HA/B42PS ice maker and bin is an ideal ice production option for casual dining and drinking establishments with its half-cube ice—a versatile form that works well in soft drinks. Splitting the airflow to cut down on exhaust obstruction, the machine head vents hot air through side and top vents. One-touch descaling and antimicrobial defense counter contaminants inside the head to help keep ice clean.

A great choice for small-scale ice applications, the Ice-O-Matic CIM0520HA/B42PS air-cooled ice machine and bin can hold 351 pounds of ice. Its bin is built with foam insulation, which gives it additional strength and boosts overall chill retention to lengthen the preservation life of stored ice. If the floor is unstable, a set of 6-inch adjustable legs enable operators to adjust the machine on uneven floors.

Ice Maker

  • Part of the Elevation Series
  • 561-lb. maximum daily ice production
  • 432-lb. daily ice production at 90 degrees F air and 70 degrees F water
  • Air-cooled system
  • Produces half-cube ice
  • Narrow, space-efficient design
  • Dual exhaust system releases air from side and top to counteract exhaust blockage
  • Smart LED light alerts staff to cleaning needs and machine state
  • PURE ICE antimicrobial defense
  • 1-touch descaling/sanitization
  • Plastic food zone
  • Snap-out dishwasher-safe components
  • Universal Smart Harness control board
  • Full cube size: 7/8 in. x 7/8 in. x 7/8 in.
  • Ideal ambient air temperature: 50-100 degrees F
  • Ideal incoming water temperature: 40-100 degrees F
  • Ideal incoming water pressure: 20-80 PSI
  • 6,252-BTU heat transfer capacity
  • Ideal clearance: 6 in. for air intake and exhaust

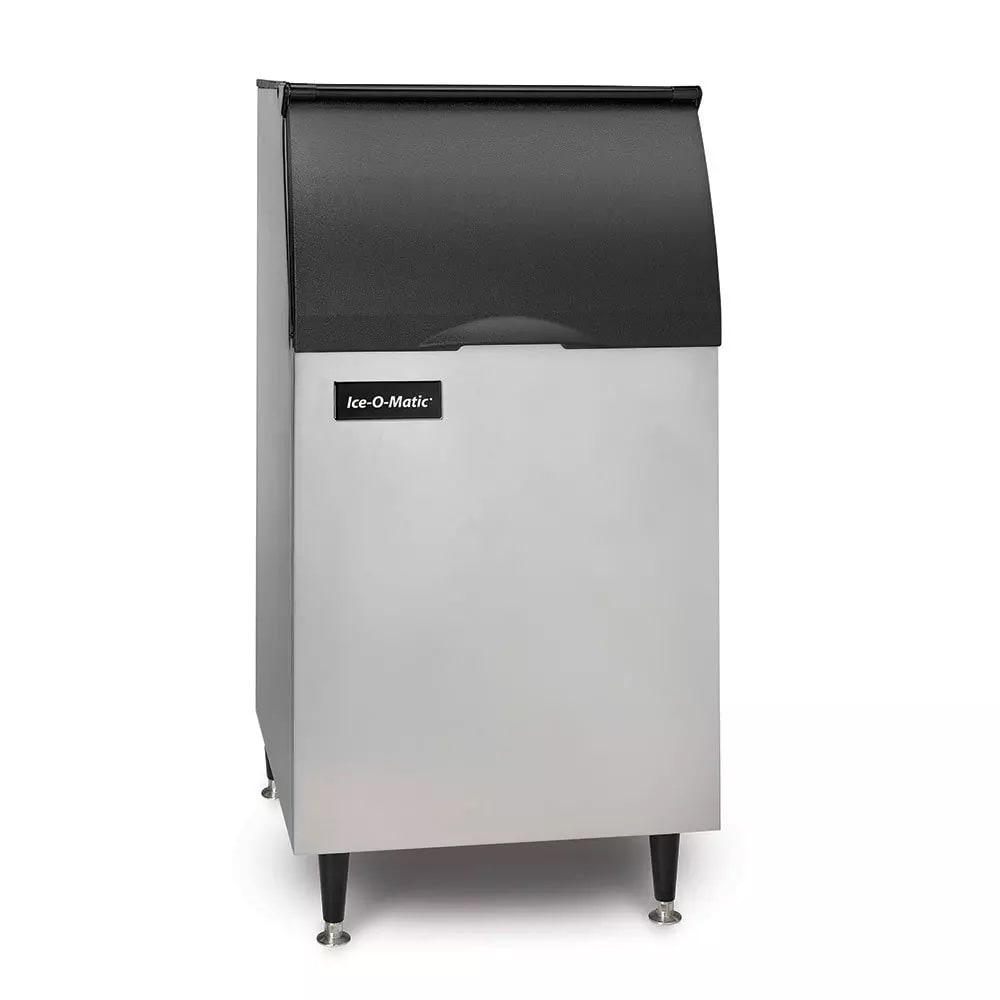

Ice Bin

  • 351-lb. bin capacity
  • Sloped front door
  • Polyethylene interior reduces cleaning needs
  • Rotocast exterior with aluminum finish
  • Foam insulation reduces thermal loss
  • 6-in. adjustable legs

Dimensions & Utilities

Ice Maker

  • 22.25 in. W x 24.25 in. D x 21.25 in. H
  • 17.8 A, 5.87 kW
  • 115 V/60 Hz/1 ph

Ice Bin

  • 22 in. W x 31 in. D x 50 in. H

Elevation Series Modular Cube Ice Maker w/ Bin, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 22″ W, approximately 561 lb production/24 hours at 70°/50° (432 lb at 90°/70°), half-size cubes, PURE ICE built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 115v/60/1-ph, 17.8 amps, cULus, NSF, CE; Ice Bin: 351 lb storage capacity, 22″W, 31″D x 50″H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, durable stainless finish exterior, 6″ legs, NSF
