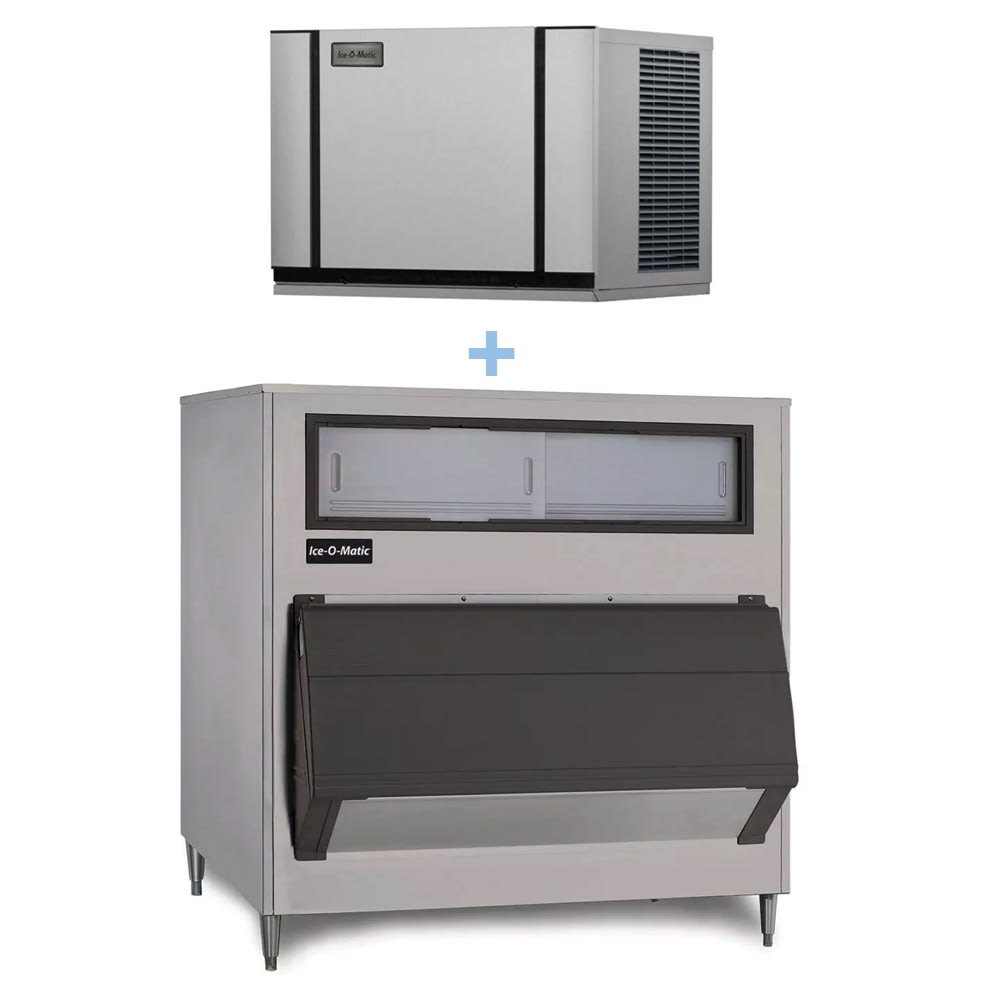

Ice-O-Matic CIM0530HA/B1300-48 520 lb Half Cube Ice Maker w/ Bin – 1320 lb Storage, Air Cooled, 115v

$6,381.00

  • Part of the Elevation Series
  • 520-lb. maximum daily ice production
  • 390-lb. AHRI-certified daily ice production
  • Half-size ice cubes
  • Cube dimensions: 3/8 in. x 7/8 in. x 7/8 in.
  • Air-cooled
  • Self-contained condenser simplifies installation
  • Dual exhaust system resists blockage and overheating
  • Plastic foodzone can be wiped down for quick cleaning
  • Dishwasher-safe pieces are BPA free and removable
  • PURE ICE antimicrobial protection restricts the spread of germs
  • Sanitizing and descaling are activated at the push of a button
  • Smart LED status light notifies users when maintenance is needed
  • LED status display for improved readability
  • Universal Smart Harness control board simplifies configuration
  • Recyclable parts reduce environmental impact
  • Ideal ambient temperature: 50-100 degrees F
  • Ideal incoming water temperature: 40-100 degrees F
  • Ideal water pressure: 20-80 PSIG
  • 6,252-BTU heat transfer capacity
SKU: Ice-O-MaticCIM0530HA/B1300-48 Category:

Description

Ice-O-Matic CIM0530HA/B1300-48 Description

The Ice-O-Matic CIM0530HA/B1300-48 ice maker with bin produces half-cube ice, a type of ice used to chill drinks and blends well to make smoothies, frappes, and margaritas. It has a maximum production capacity of 520 pounds of ice daily in ideal conditions, and the bin can store 1,320 pounds of prepared ice so users can keep up with periods of high demand. This ice maker has a narrow footprint that’s just 30 inches wide for versatile installation.

Designed with dual exhaust and a built-in, self-contained condenser the Ice-O-Matic CIM0530HA/B1300-48 ice maker with bin fits most floor plans. It’s air cooled, meaning that it uses less water than other types of cooling systems and doesn’t require additional drainage lines; it also chills less efficiently. Inside the machine, the plastic foodzone is smooth and provides no small cracks and crevices to harbor bacterial buildup.

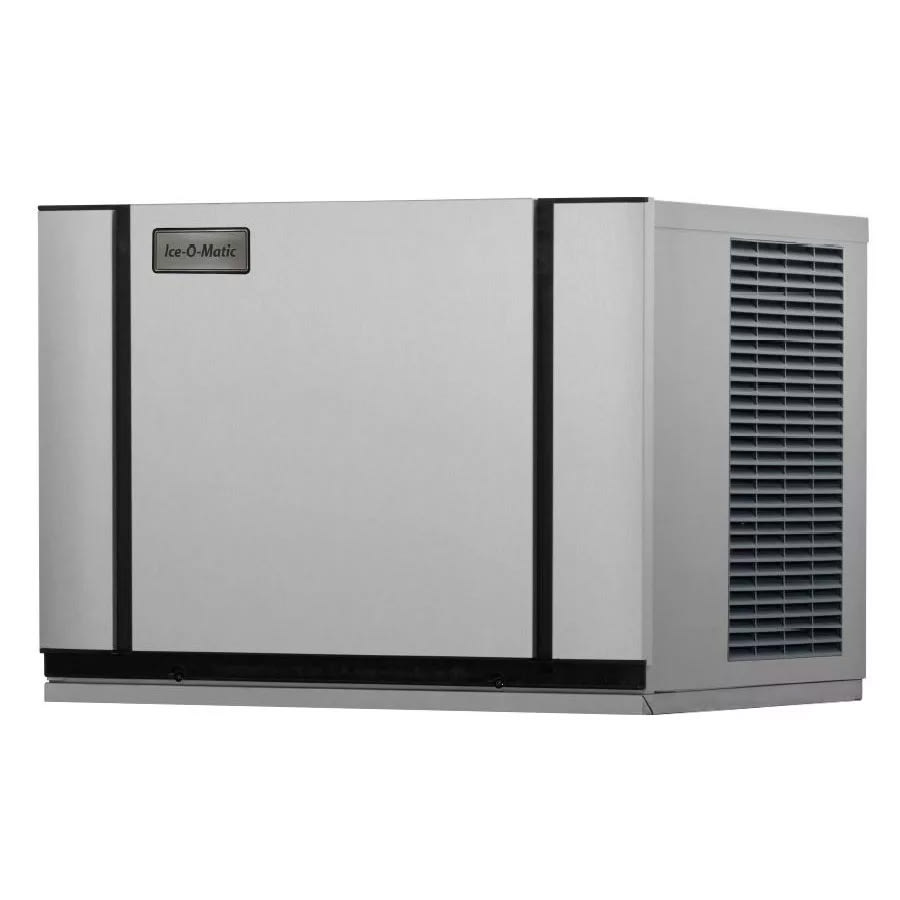

Ice Maker Details

  • Part of the Elevation Series
  • 520-lb. maximum daily ice production
  • 390-lb. AHRI-certified daily ice production
  • Half-size ice cubes
  • Cube dimensions: 3/8 in. x 7/8 in. x 7/8 in.
  • Air-cooled
  • Self-contained condenser simplifies installation
  • Dual exhaust system resists blockage and overheating
  • Plastic foodzone can be wiped down for quick cleaning
  • Dishwasher-safe pieces are BPA free and removable
  • PURE ICE antimicrobial protection restricts the spread of germs
  • Sanitizing and descaling are activated at the push of a button
  • Smart LED status light notifies users when maintenance is needed
  • LED status display for improved readability
  • Universal Smart Harness control board simplifies configuration
  • Recyclable parts reduce environmental impact
  • Ideal ambient temperature: 50-100 degrees F
  • Ideal incoming water temperature: 40-100 degrees F
  • Ideal water pressure: 20-80 PSIG
  • 6,252-BTU heat transfer capacity

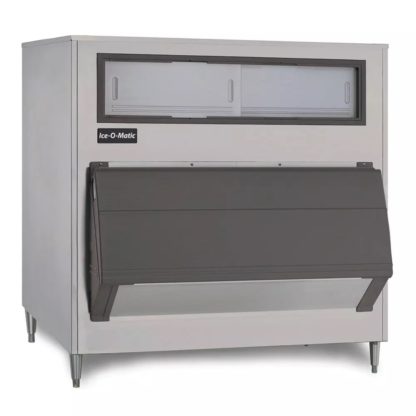

Ice Bin Details

  • 1,320-lb. capacity
  • 41.9-cu.-ft. storage space
  • Made of scratch- and dent-resistant stainless steel
  • Promotes first-in, first-out (FIFO) ice management for fresh product
  • Interior poly liner resists corrosion from exposure to moisture
  • Heavy-duty door can stay open for 1-handed control
  • Ice shield controls ice flow
  • 32-in. required door access

Dimensions & Utilities

  • Ice maker: 30.25 in. W x 24.25 in. D x 21.25 in. H
  • Bin: 48 in. W x 31 in. D x 65 in. H
  • 17.8 A, 5.87 kW
  • 115 V/60 Hz/1 ph
  • Ice maker potable water inlet: 3/8-in. FPT
  • Ice maker water outlet: 3/4-in. FPT
  • Electrical connection port: 7/8-in. dia.
  • Electrical connection junction box: 7/8-in. dia.
  • Bin drainage port: 1-in. FPT

Elevation Series Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30″ W, approximately 520 lb production/24 hours at 70°/50° (390 lb at 90°/70°), half-size cubes, PURE ICE built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE; Ice Bin: 1320 lb storage capacity, 48″W x 31″D x 65″H, stainless steel construction, first in first out ice management, corrosion resistant Poly Liner, heavy duty “stay open” door for easy one hand access, ice shield controls flow & reduces spills, includes universal adapter kit, NSF
