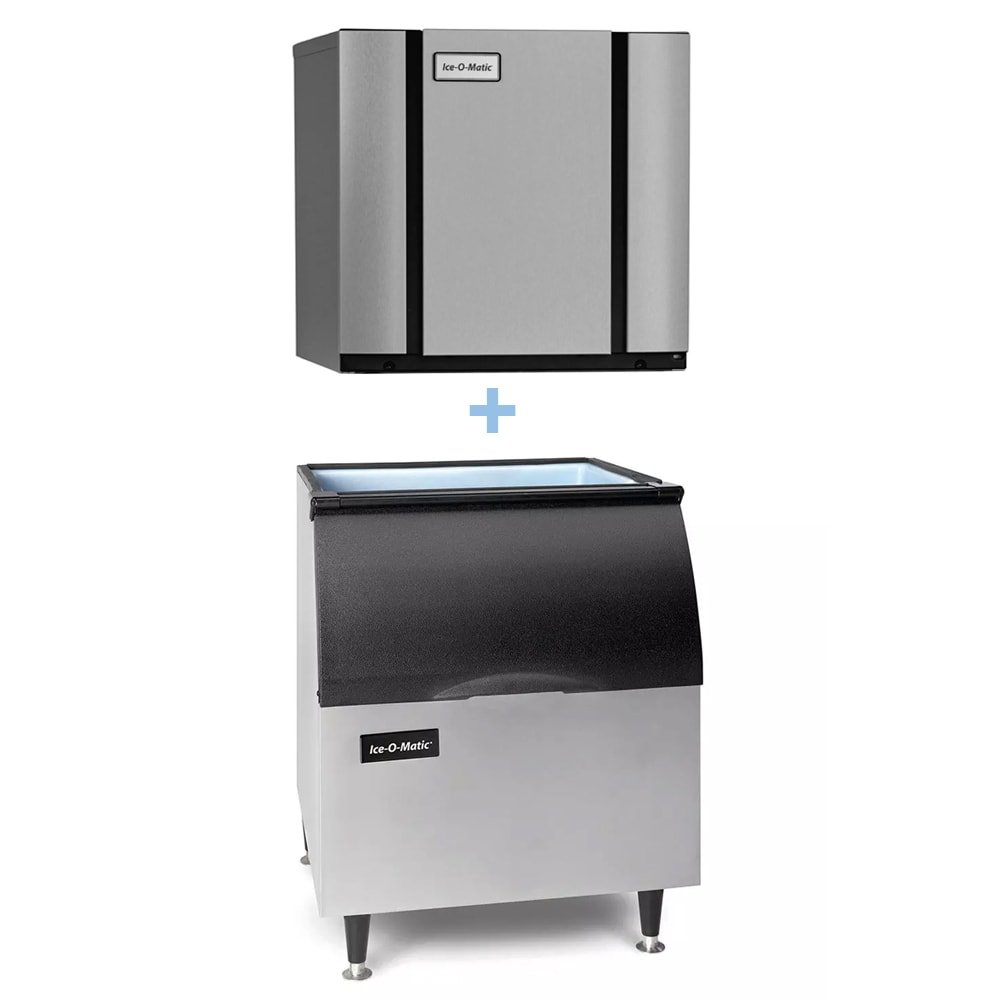

The Ice-O-Matic CIM0836FA/B40PS ice maker and bin produces full-size cubes of ice with its air-cooled condenser, which is self-contained to streamline installation and reduce the risk of cross contamination. It has PURE ICE antimicrobial protection to slow the growth of bacteria, and with the push of a button, the system performs descaling and sanitizing measures. To facilitate cleaning, the food zone has removable components that can be placed in the dishwasher. Depending on environmental conditions, this unit makes from 711 to 896 pounds of ice daily.
For dependable storage, the Ice-O-Matic CIM0836FA/B40PS full-cube ice maker’s bin is insulated with foam to prevent ice from melting quickly. It holds 344 pounds of ice, which can be accessed from the top-hinged, sloped front door. To resist corrosion, the lining is made of polyethylene, and the exterior has a stainless finish that provides durability and rust resistance. For installation on uneven surfaces, the sturdy 6-inch legs can be adjusted to prevent the unit from tipping.
Ice Maker Details
- Part of the Elevation Series
- 896-lb. daily ice production
- 711-lb. AHRI-certified daily ice production
- Makes full-size cubes of ice
- Full-size cube dimensions: 7/8 in. x 7/8 in. x 7/8 in.
- Self-contained, air-cooled condenser
- Exhausts from the top and side
- PURE ICE antimicrobial slows bacterial growth
- LED status display provides updates
- 1-touch sanitize and descaling controls
- Food zone has removable, dishwasher-safe components
- Ideal incoming water pressure: 20-80 PSIG
- Ideal incoming water temperature: 40-100 degrees F
- Ideal ambient air temperature: 50-100 degrees F
- 15,100-BTU heat transfer capacity

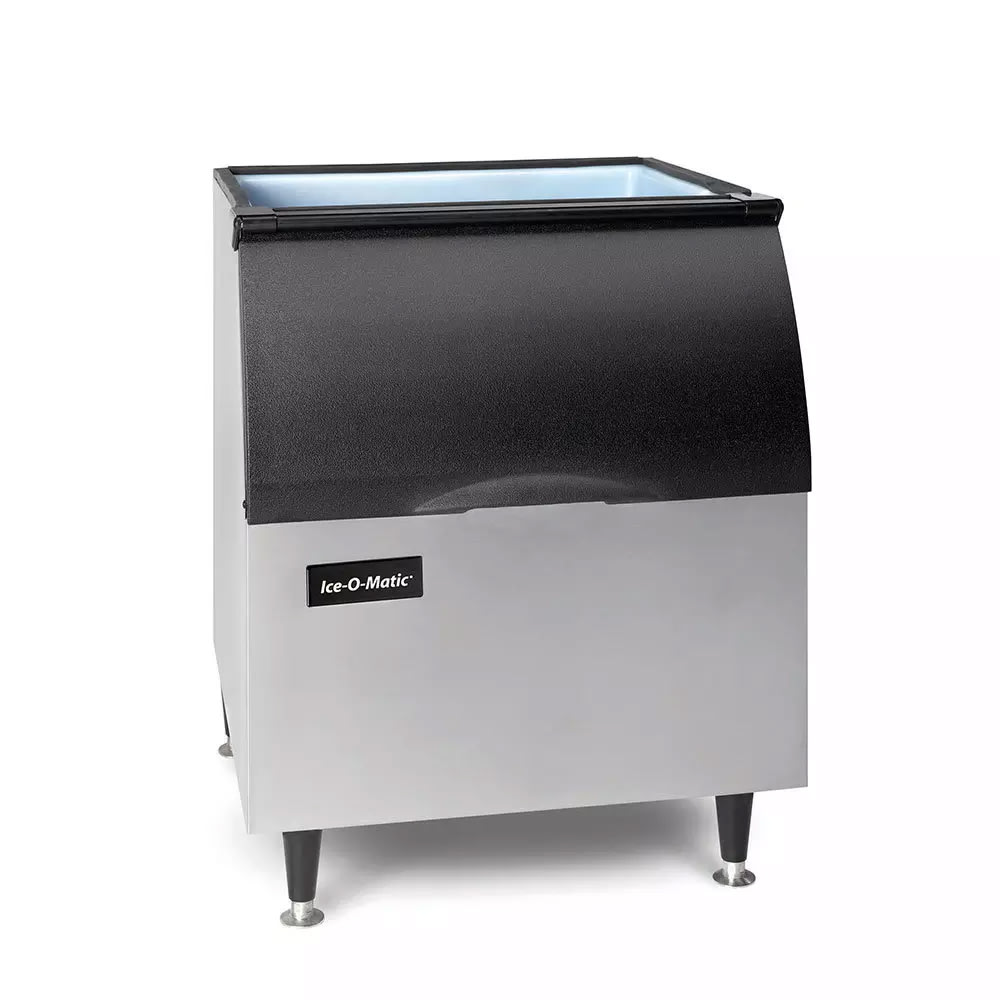

Ice Bin Details
- 344-lb. application capacity
- Slope front door is top hinged
- Polyethylene interior provides corrosion resistance
- Foam insulation prevents ice from melting
- Durable stainless finish exterior
- Adjustable 6-in. legs
Dimensions & Utilities
- Ice maker: 30.25 in. W x 24.25 in. D x 26.9 in. H
- Ice bin: 30 in. W x 31 in. D x 37.5 in. H
- 11.8 A, 5 kW
- 208-230 V/60 Hz/1 ph
Elevation Series Modular Cube Ice Maker w/ Bin, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30″ W, approximately 896 lb production/24 hours at 70°/50° (711 lb at 90°/70°), full-size cubes, PURE ICE built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 208-230v/60/1-ph, 11.8 amps, cULus, NSF, CE; Ice Bin: 344 lb storage capacity, 30″W x 31″D x 37-1/2″H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, durable stainless finish exterior, 6″ legs, NSF
