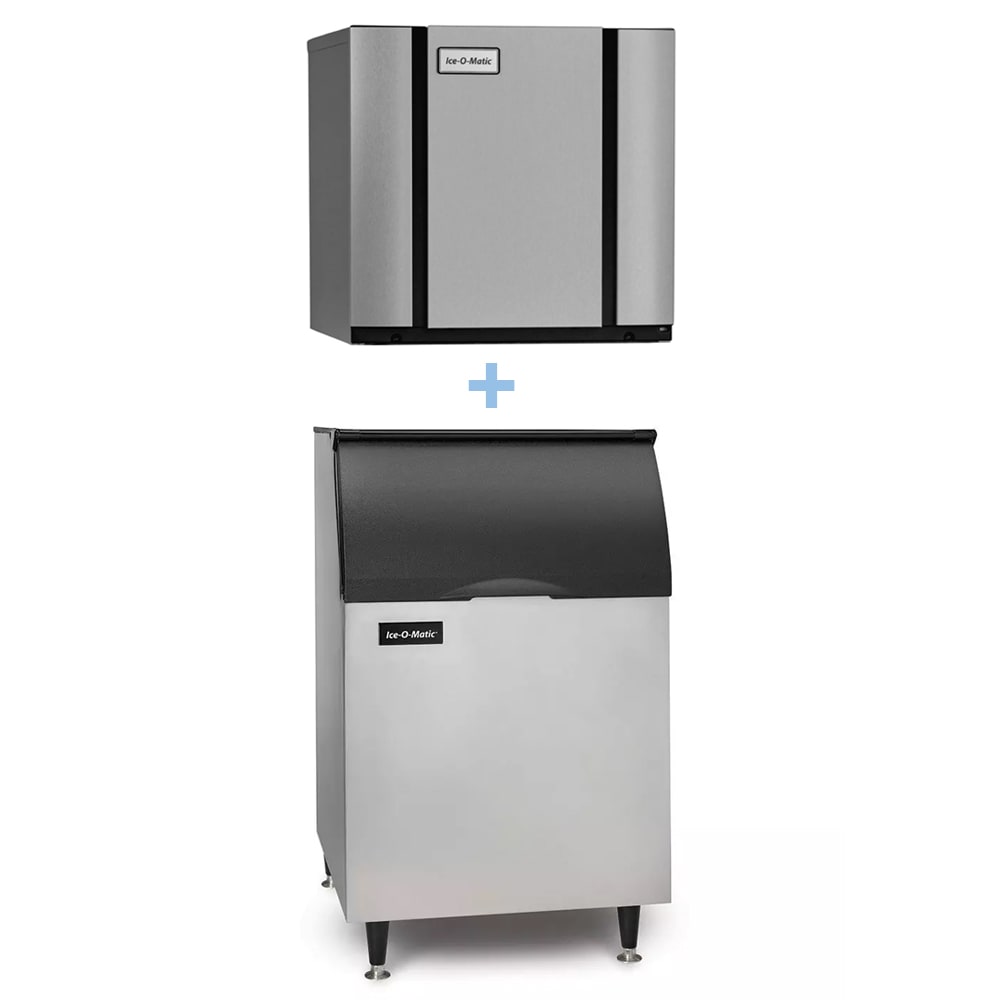

Ice-O-Matic CIM1136HA/B55PS 932 lb Half Cube Ice Maker w/ Bin – 510 lb Storage, Air Cooled, 208-230v/1ph

When conditions are optimal, the Ice-O-Matic CIM1136HA/B55PS ice machine with bin can produce as much as 932 pounds of half-size cubed ice in a day; this type of ice is ideal for chilling cocktails, soft drinks, and lemonade. Its dual-exhaust discharge enables the ice machine to be installed in a variety of configurations, and its LED display tells users about status updates. To streamline cleaning, this unit features one-touch controls for sanitizing and descaling as well as dishwasher-safe food zone components.

Operators can access the contents of the Ice-O-Matic CIM1136HA/B55PS ice maker’s accompanying bin through its sloped, top-hinged front door. Its exterior is made of aluminum to defend against corrosion, and its interior is lined with simple-to-clean polyethylene. This unit is insulated with foam to slow melting ice, and it’s supported with 6-inch legs.

Ice Maker Details

• Part of the Elevation Series
• 932-lb. maximum daily ice production
• 762-lb. AHRI daily ice production
• Makes half-size cubes
• Cube size: ³/₈ in. x ⁷/₈ in. x ⁷/₈ in.
• Plastic food zone eliminates crevices that harbor bacteria
• LED display provides status updates
• Dishwasher-safe components in food zone
• Dual-exhaust discharge releases air from side and top
• 1-touch descaling and sanitizing optimizes performance
• PURE ICE protection defends against microbial development
• Air cooled
• Self-contained condenser
• Uses R404A refrigerant
• Ideal incoming water pressure: 20-80 PSIG
• Ideal incoming water temperature: 40-100 degrees F
• Ideal ambient temperature range: 50-100 degrees F
• 18,200-BTU heat transfer capacity

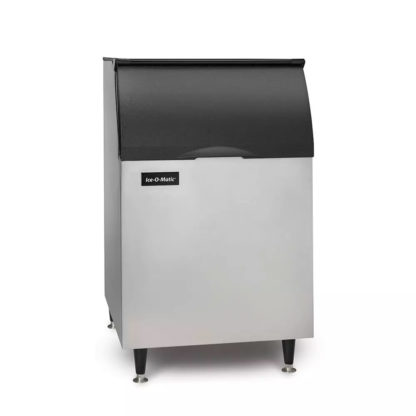

Ice Bin Details

• 510-lb. application capacity
• Exterior made of long-lasting aluminum
• Sloped, top-hinged front door
• Polyethylene interior liner can be quickly wiped clean
• Foam insulation slows ice melting
• Mounted on 6-in. legs

Dimensions & Utilities

• Ice maker: 30.25 in. W x 24.25 in. D x 26.90 in. H
• Ice bin: 30 in. W x 31 in. D x 50 in. H
• 12.2 A, 5.1 kW
• 208-230 V/60 Hz/1 ph

Elevation Series Modular Cube Ice Maker w/ Bin, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30″ W, approximately 932 lb production/24 hours at 70°/50° (762 lb at 90°/70°), half-size cubes, PURE ICE built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 208-230v/60/1-ph, 12.2 amps, cULus, NSF, CE; Ice Bin: 510 lb storage capacity, 30″W x 31″D x 50″H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, durable stainless finish exterior, 6″ legs, NSF
