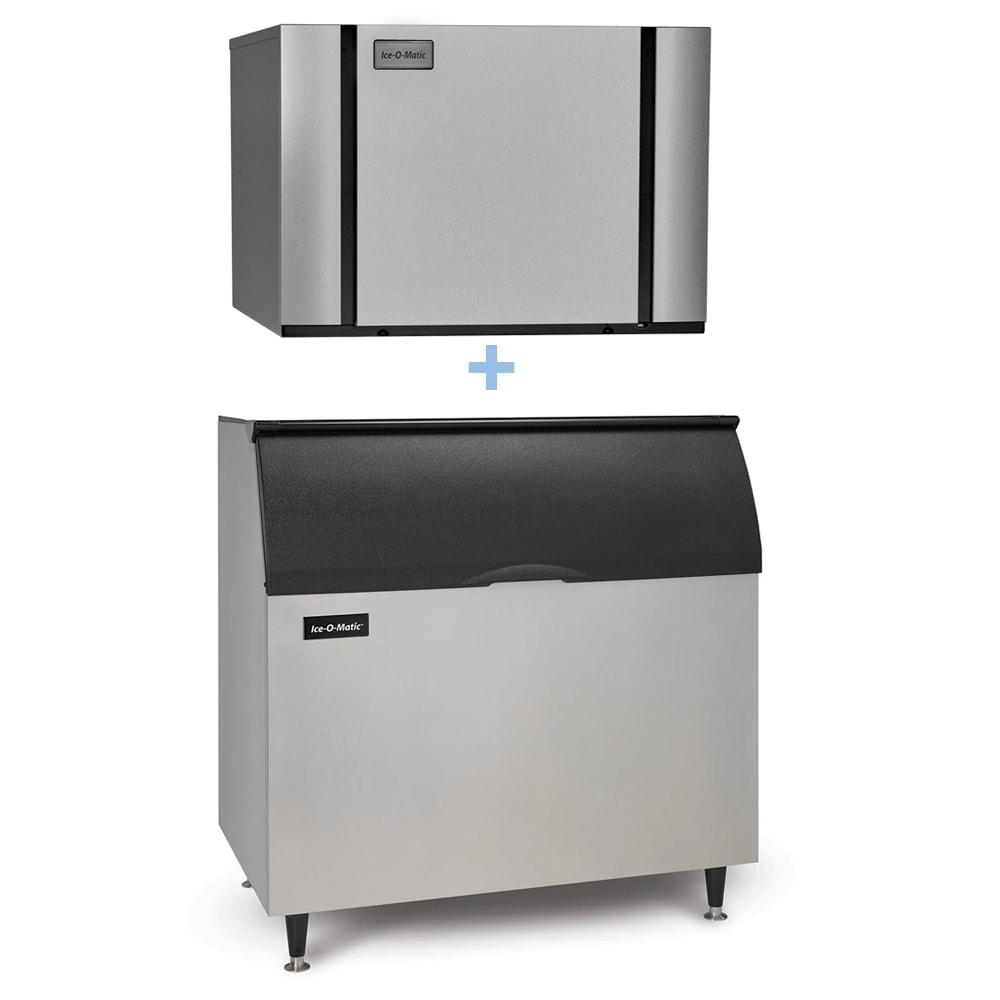

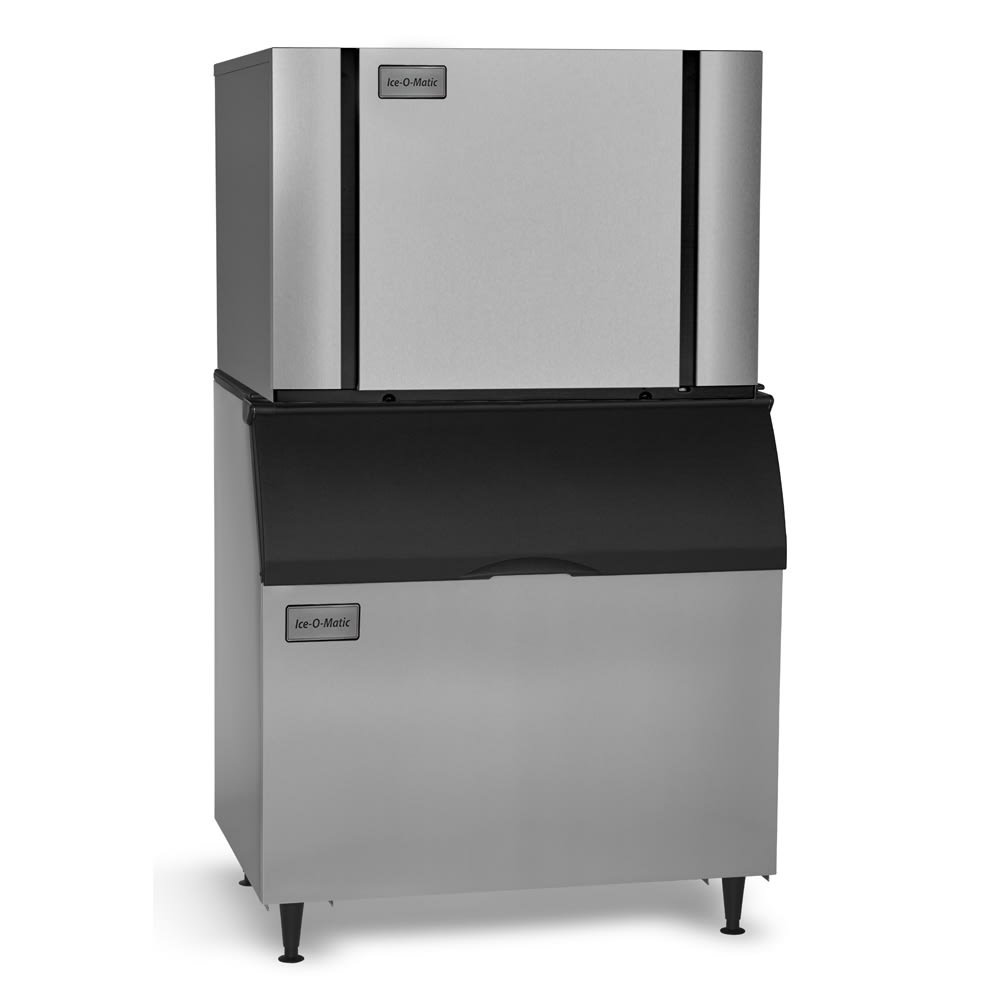

Ice-O-Matic CIM1446HA/B110PS 1560 lb Half Cube Ice Maker w/ Bin – 854 lb Storage, Air Cooled, 208-230v/1ph

$7,175.00$7,375.00

  • Part of the Elevation Series
  • 1,560-lb. maximum daily ice production
  • 1,210-lb. AHRI-certified daily ice production
  • Generates half-size cubes
  • Cube dimensions: 3/8 in. x 7/8 in. x 7/8 in.
  • Air-cooled condenser is self-contained with a dual exhaust
  • Nickel-plated evaporator provides durability
  • Harvest Assist pushes ice into the included bin
  • LED status display offers updates
  • Single-push sanitizing and descaling
  • Foodzone constructed of plastic that’s easy to clean
  • Dishwasher-safe foodzone components snap out for cleaning
  • PURE ICE antimicrobial inhibits germ growth
  • Made of heavy-duty stainless steel
  • Ideal incoming water pressure: 20-60 PSIG
  • Ideal incoming water temperature: 40-100 degrees F
  • Ideal ambient air temperature: 50-100 degrees F
  • 16,000-BTU heat transfer capacity
Clear
SKU: Ice-O-MaticCIM1446HA/B110PS Category:

Description

Ice-O-Matic CIM1446HA/B110PS Description

Using Harvest Assist, ice is guided into the Ice-O-Matic CIM1446HA/B110PS half-cube ice maker’s bin for access. The bin is lined with polyethylene to resist corrosion, and it has foam insulation that prevents ice from melting quickly while it’s waiting to be used. Holding 854 pounds of ice, the bin has a sloped front door for interior access, and the unit is mounted on adjustable 6-inch legs for installation on uneven surfaces. The self-contained, air-cooled condenser produces from 1,210 to 1,560 pounds of ice daily.

The Ice-O-Matic CIM1446HA/B110PS ice maker with bin has an LED status display that can be monitored throughout the day for system updates. Built-in PURE ICE antimicrobial inhibits the formation of bacteria, and the plastic foodzone is seamless so no debris can get caught in any crevices. To clean the foodzone, its components snap out for placement in the dishwasher, and the unit has one-touch sanitizing and descaling controls. Made of stainless steel, this ice maker can withstand high-volume use.

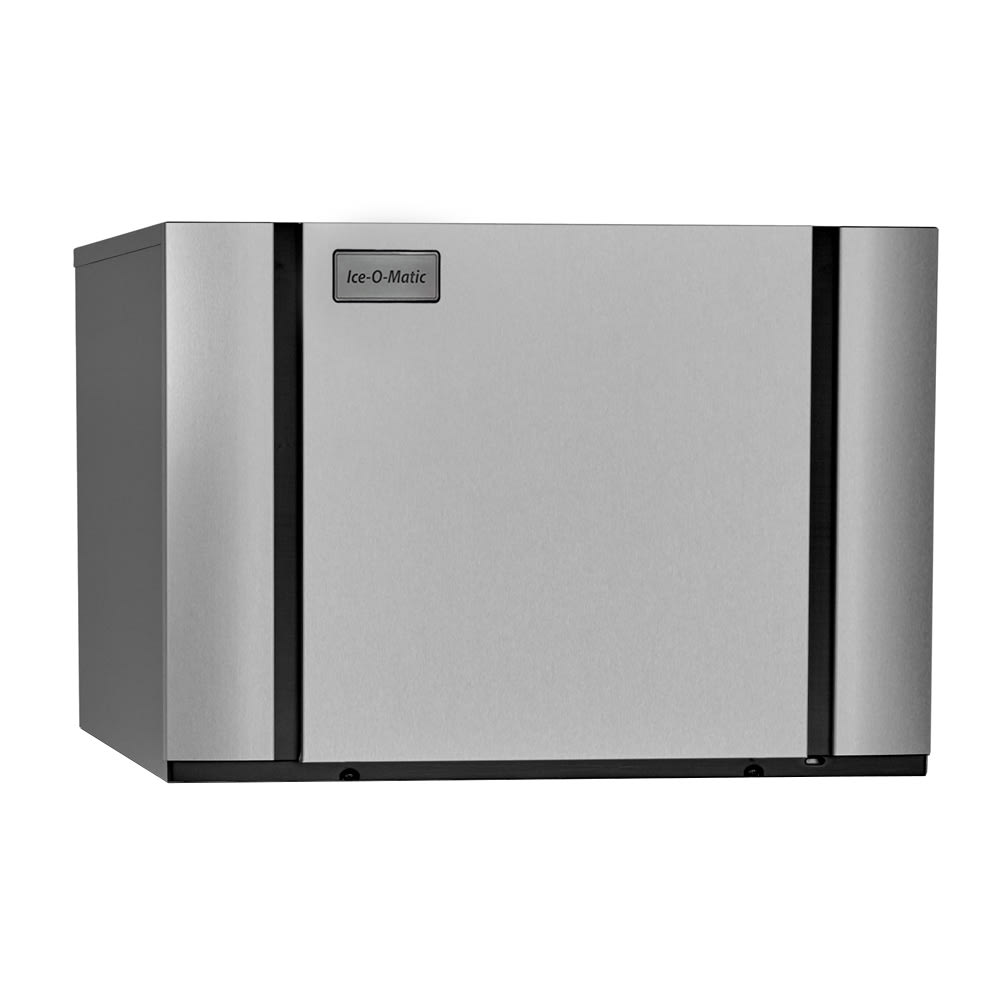

Ice Maker Details

  • Part of the Elevation Series
  • 1,560-lb. maximum daily ice production
  • 1,210-lb. AHRI-certified daily ice production
  • Generates half-size cubes
  • Cube dimensions: 3/8 in. x 7/8 in. x 7/8 in.
  • Air-cooled condenser is self-contained with a dual exhaust
  • Nickel-plated evaporator provides durability
  • Harvest Assist pushes ice into the included bin
  • LED status display offers updates
  • Single-push sanitizing and descaling
  • Foodzone constructed of plastic that’s easy to clean
  • Dishwasher-safe foodzone components snap out for cleaning
  • PURE ICE antimicrobial inhibits germ growth
  • Made of heavy-duty stainless steel
  • Ideal incoming water pressure: 20-60 PSIG
  • Ideal incoming water temperature: 40-100 degrees F
  • Ideal ambient air temperature: 50-100 degrees F
  • 16,000-BTU heat transfer capacity

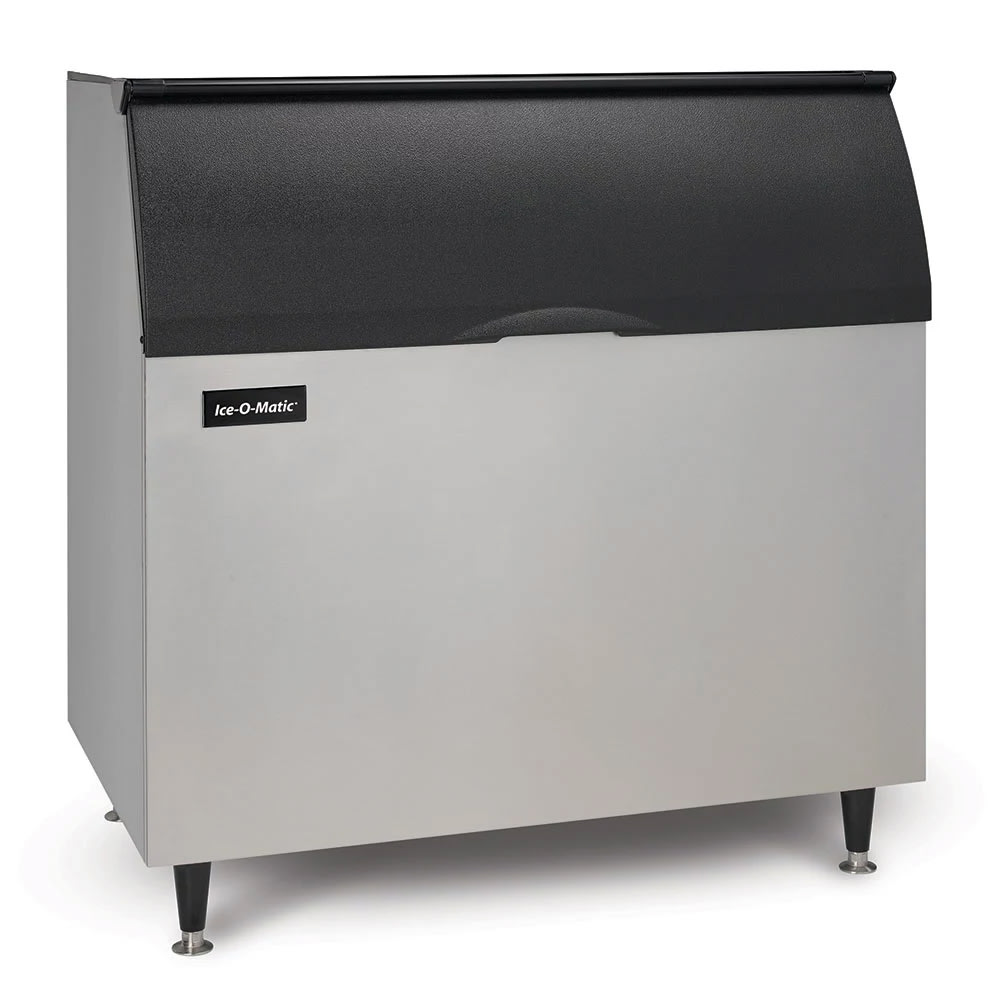

Ice Bin Details

  • 854-lb. application capacity
  • Exterior finished with stainless steel
  • Polyethylene interior with foam insulation
  • Top-hinged, sloped front door
  • Adjustable, 6-in. legs

Dimensions & Utilities

  • Ice maker: 48.25 in. W x 24.25 in. D x 26 in. H
  • Ice bin: 48 in. W x 31 in. D x 50 in. H
  • 26.1 A, 4.4 kW
  • 208-230 V/60 Hz/1 ph

Elevation Series Modular Cube Ice Maker w/ Bin, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 48″ W, approximately 1560 lb production/24 hours at 70°/50° (1210 lb at 90°/70°), half size cube, PURE ICE built in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 208-230v/60/1-ph, 26.1 amps, cULus, NSF, CE; Ice Bin: 854 lb storage capacity, 48″W x 31″D x 50″H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, durable stainless finish exterior, 6″ legs, NSF
