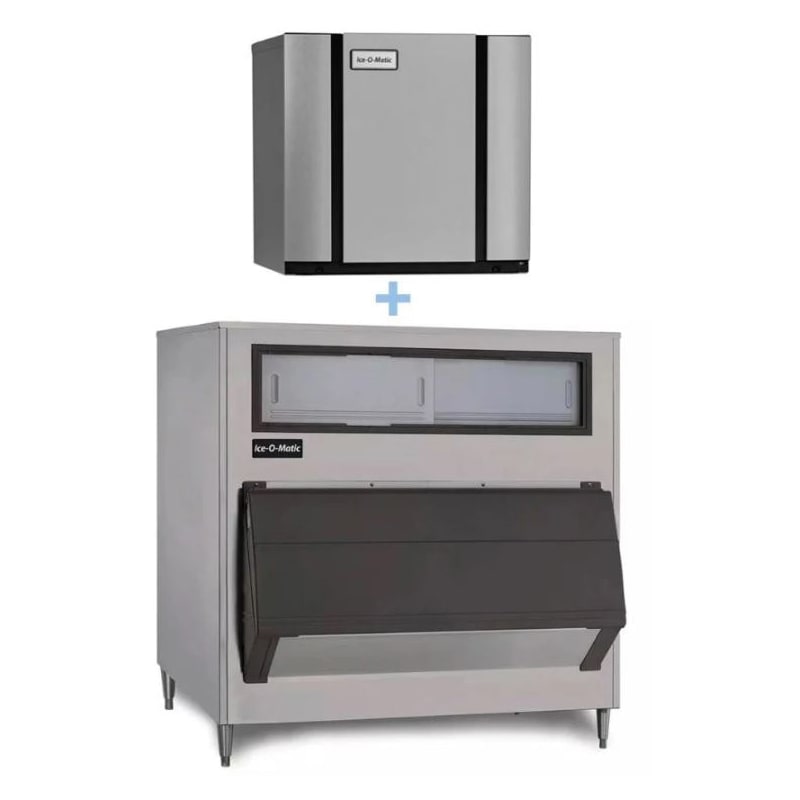

Ice-O-Matic CIM2046FW/B1000-48 1860 lb Full Cube Ice Maker w/ Bin – 1000 lb Storage, Water Cooled, 208-230v/1ph

The Ice-O-Matic CIM2046FW/B1000-48 ice maker and bin unit is great for taverns, clubs, and other establishments where gourmet drinks are served with full-cube ice. It’s a water-cooled system, which means it uses a building’s existing water supply to produce ice instead of environmental air or remote cooling options. As long as it’s operating under ideal conditions, the head can make as much as 1,860 pounds of ice in a day.

Decreasing spillage and reducing cleaning labor, the Ice-O-Matic CIM2046FW/B1000-48 ice machine’s storage bin is equipped with an ice shield that regulates the flow of ice from the head into the bin. It can hold as much as 1,000 pounds of ice to give establishments plenty of ice holding capacity, while the bin’s door has stay-open functionality in order to assist with ice retrieval.

Ice Maker

• Part of the Elevation Series
• Replaces ICE1806FW and ICE2106FW
• 1,860-lb. maximum daily ice production
• 1,690-lb. daily ice production at 90 degrees F air and 70 degrees F water
• Water-cooled system
• Produces full-cube ice
• Full-cube size: ⁷/₈ in. x ⁷/₈ in. x ⁷/₈ in.
• Compact design optimizes space usage
• Dual exhaust system decreases potential exhaust blockage
• LED status display
• PURE ICE antimicrobial defense
• 1-touch sanitization/descaling
• Warewasher-safe food zone components
• Harvest Assist
• Ideal ambient air temperature: 50-100 degrees F
• Ideal incoming water temperature: 40-100 degrees F
• Ideal incoming water pressure: 20-60 PSI
• 27,500-BTU heat transfer capacity

Product Features

Ice Bin

• 1,000-lb. bin capacity
• 31.9-cu.-ft. holding capacity
• Poly bin liner
• Ice shield manages flow to reduce spillage
• Made of resilient, rust- and corrosion-resistant stainless steel
• Stay-open door assists users during ice withdrawl
• Comes with universal adapter kit

Dimensions & Utilities

• Ice maker: 48.25 in. W x 24.25 in. D x 26.8 in. H
• Ice bin: 48 in. W x 31 in. D x 56 in. H
• 18.1 A, 3.72 kW
• 208-230 V/60 Hz/1 ph

Elevation Series Modular Cube Ice Maker w/ Ice Bin, water cooled, self-contained condenser, dual exhaust top/side discharge, 48″W, approximately 1860 lb production/24 hours at 70°/50° (1690 lb at 90°70°), full size cube, PURE ICE built in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE; Ice Bin: 1000 lb storage capacity, 48″W x 31″D x 56″H, stainless steel construction, first in first out ice management, corrosion resistant Poly Liner, heavy duty “stay open” door for easy one hand access, ice shield controls flow & reduces spills, includes universal adapter kit, NSF
