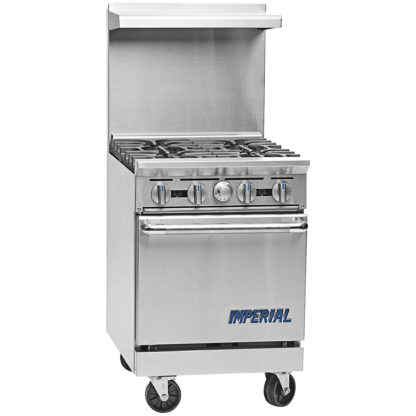

Imperial IR-4 24″ 4 Burner Gas Range w/ Standard Oven


  • 4 Cast iron PyroCentric burners
  • One standing pilot per burner for instant ignition.
  • Cast iron grates are in 12″ x 11″ front and 12″ x 13″ back for easy lift-off.
  • 1 Standard Space Saver Oven with linear burner
  • Exclusive heat deflector reflects heat into the oven
  • Stainless steel front, sides, backguard, shelf, landing ledge and kick plate
  • One year parts and labor warranty

Plant Based Pros is an Authorized Retailer of Imperial products.

Items purchased from Plant Based Pros are:

  • Brand new and in original packaging.
  • Covered by the full manufacturer warranty.
  • Qualified for manufacturer service and support.
  • Questions? Call 800-522-0517

Using commercial equipment in a residence may violate Homeowner’s Insurance and will invalidate warranty associated with the product. This product cannot ship and cannot be used for residential purposes.



Imperial’s IR-4 4-burner gas range can put out dishes fast in your restaurant or mom-and-pop diner. This model has a stainless steel front, sides, backguard, shelf, landing edge and kick plate that can be cleaned easily and resistant to scratches and dents. Welded stainless steel seams give stability, and a stainless steel landing ledge makes for additional work space. An anti-clogging shield designed in the grate protects the pilot from grease and debris.

OPEN BURNERS – PyroCentric™ 32,000 BTU (9 KW) anti-clogging burner with a 7,000 BTU/hr. (2 KW) low simmer feature. Two rings of flame for even heating.
– Cast iron PyroCentric burners are standard on all IR Series Ranges.
– Burners are anti-clogging and lift-off and separate for easy cleaning. No gaskets or screws.
– One standing pilot per burner for instant ignition.

GRATES – Front grates measure 12″ x 11″ (305 x 279 mm). Back grates are 12″ x 13″ (305 x 330 mm).
– Back grates are sized for positioning large stock pots directly over burner and feature a hot air dam.
– Pots slide easily from section to section and onto landing ledge.
– Grates are cast iron for a long service life.

Product TypeCooking Equipment
Width (in)24
Depth (in)31.5
Height (in)56.5
Gas TypeNG/LP
Range ConfigurationBurners
Burner Type(s)Open
Open Burner BTU (ea)32000
Installation TypeFreestanding
Burner ConfigurationStandard
BaseStandard Oven
Number of Ovens1 Oven


Additional information

Weight465 lbs
Dimensions39 × 26.5 × 35 in
Delivery Options

Commercial No Lift Gate, Commercial Lift Gate Required, Residential No Lift Gate, Residential Lift Gate Required

Gas Type

Liquid Propane, Natural Gas
