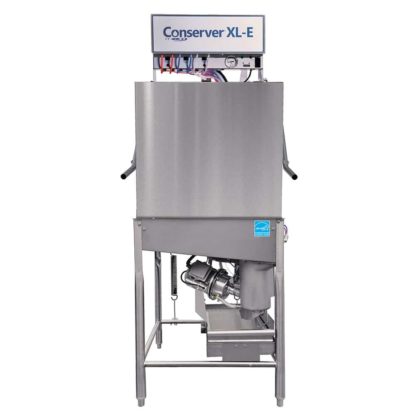

Jackson CONSERVER XL-E Low Temp Door Type Dishwasher w/ 39 Racks/hr Capacity, 115v

Using only 1.02 gallons of water per rack, the Jackson Conserver XL-E door-type dishmachine can clean 39 racks per hour. The wash cycle starts automatically, and operators can adjust the controls on the top-mounted panel, which is conveniently accessible for maintenance. To ensure clean dishes and utensils, the self-draining stainless steel pump and removable scrap screen eliminate soil and detergent carryover between wash and rinse cycles.

To streamline installation, the Conserver XL-E low-temperature dishwasher has adjustable feet, a single-point electrical connection, and a dual-point drain connection. It is also convertible from a straight-through to a corner setup and vice versa. A door safety switch prevents opening while a cycle is running, and the wash arms are interchangeable for convenience. The delimer switch runs a cycle that removes hard water deposits.

Product Details

• Can wash 39 racks per hr.
• Uses 1.02 gal. of water per rack
• Heavy-duty stainless steel construction
• Controls are top mounted for accessibility
• Automatic start
• Low-chemical indicator light signals when detergent and sanitizer need to be refilled
• Built-in waste accumulator, internal sump, and removable scrap screen help keep water clean
• Self-draining stainless steel pump eliminates soil and detergent carryover between cycles
• 3 built-in pumps for detergent, rinse agent, and sanitizer are controlled by individual switches
• Interchangeable upper and lower stainless steel arms
• Convertible from straight-through to corner setup and vice versa
• Delimer switch to conveniently remove hard water deposits
• Door safety switch prevents washer from being opened during a wash cycle
• Wash thermometer verifies correct wash temperatures
• Fill and Dump design disposes dirty water to provide fresh water for each rinse cycle
• 17¹/₄-in. vertical interior clearance accommodates large bakeware and dinnerware
• 3-in. adjustable stainless steel feet maintain stability
• Inlet, wash, and rinse operating temperature range: 120-140 degrees F

Dimensions & Utilities

• 30³/₈ in. W x 29¹/₂ in. D x 68¹/₂ in. H (78 in. H with door open)
• 11.4 A, 1 HP wash pump
• 115 V/60 Hz/1 ph

Conserver Dishwasher, Door Type, 33-1/8″W x 29-1/2″D x 68-1/2″H, low temperature chemical sanitizing, universal (straight-thru/corner) type, approximately (39) racks/hour, (3) built-in dispensing pumps, built-in scrap accumulator, removable screen, drain pump, auto-start, stainless steel construction, 3″ adjustable stainless steel bullet feet, 1 HP wash pump, cETLus, NSF, ENERGY STAR, 115v/60/1ph
