Jackson TEMPSTAR High Temp Door-Type Dishwasher w/ Built-In Booster, 208v/230v

$10,991.16

  • 58 racks per hr. in the normal cycle, 30 racks per hr. in the medium cycle, 20 racks per hr. in the heavy cycle, or 12 racks per hr. in the extra-heavy cycle
  • 57-sec. normal cycle, 117-sec. medium cycle, 117-sec. heavy cycle, 297-sec. extra-heavy cycle
  • Compatible with 20-in. x 20-in. racks
  • 18-in. trays fit in the 171/4-in. door opening
  • Auto-start and auto-fill features make it easy to start a cycle
  • Built-in, 70-degree F rise booster heater increases sanitizing water to the proper temperature
  • Sani-Sure feature makes sure that theheats rinse water toreaches the proper temperature
  • Multi-cycle timer allows enables the operator to monitor the cycle time in any cycle
  • Interchangeable wash and rinse arms can be screwed out to simplify the cleaning process
  • Stainless steel nozzles provide a superior clean
  • Self-draining, stainless steel pump eliminates water from the wash cycle
  • Large scrap basket collects crumbs to prevent the drain from clogging
  • Front dress panel protects the internal components from damage
  • Adjustable bullet feet can be used to level unit on uneven floors
Clear
SKU: JacksonTEMPSTARHigh Category:

Description

Jackson TEMPSTAR Description

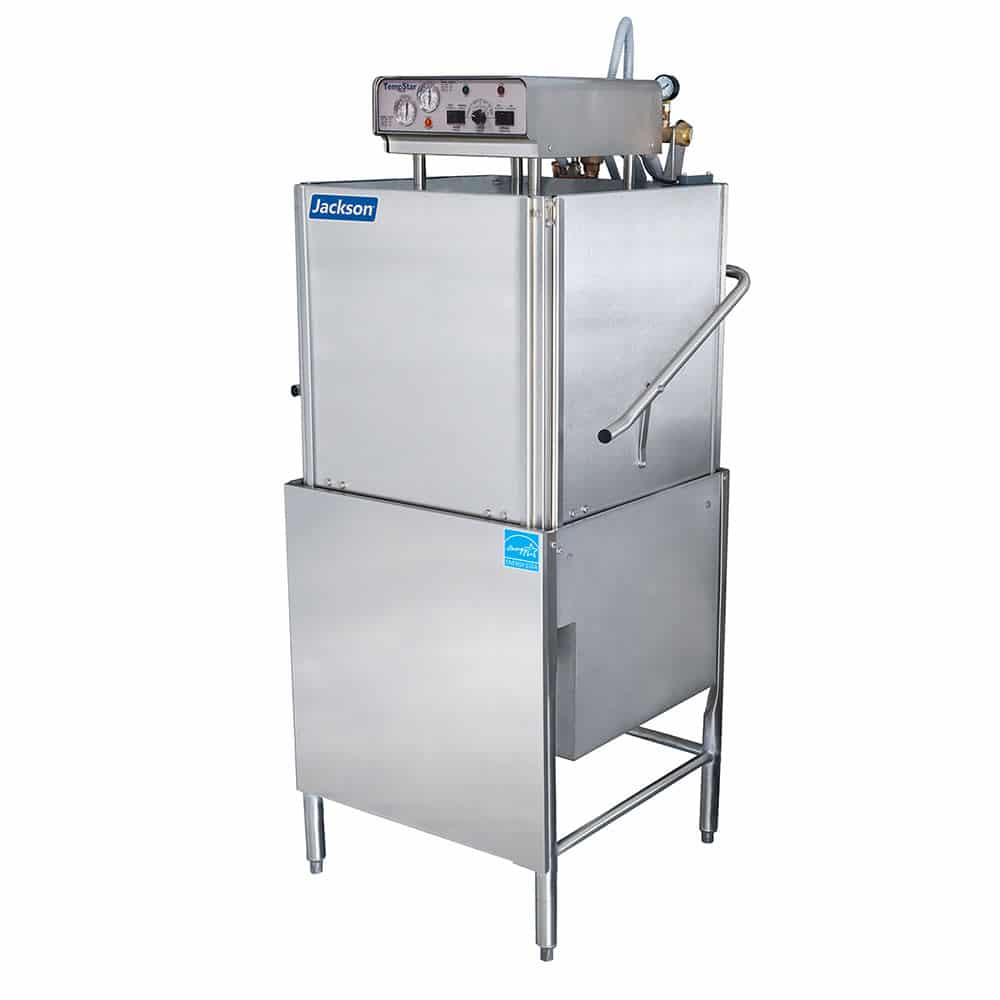

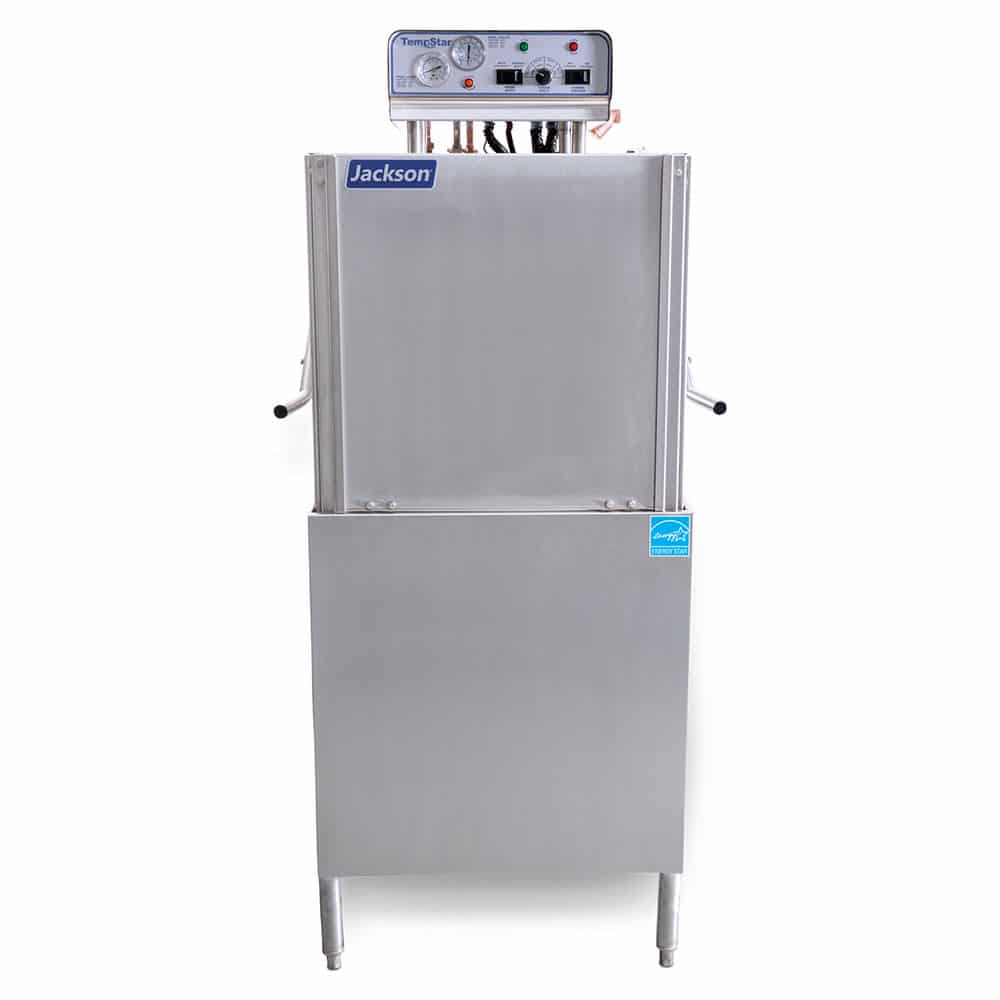

The Jackson TEMPSTAR high-temp, door-type dishwasher is compatible with standard 20-inch-by-20-inch racks, and 18-inch trays fit through the 171/4-inch door opening. It washes 58 racks per hour in the 57-second normal cycle. There are also medium, heavy, and extra-heavy cycles for , so the unit suits to suit a variety of applications. The timer that is included can be used for all of these cycles. Making it easy to begin the cycle effortlessly, the machine has auto-start and auto-fill features.

The wash and rinse arms screw out easily, so they can be simply cleaned. Theyse have stainless steel nozzles that , and they are specially designed to provide a superior clean. The self-draining, stainless steel pump eliminates water from the wash cycle in the Jackson TEMPSTAR electric, door-type dishwasher. A booster heater is built into the unit to increase the temperature to 70 degrees Fahrenheit for sanitizing.

Product Details

  • 58 racks per hr. in the normal cycle, 30 racks per hr. in the medium cycle, 20 racks per hr. in the heavy cycle, or 12 racks per hr. in the extra-heavy cycle
  • 57-sec. normal cycle, 117-sec. medium cycle, 117-sec. heavy cycle, 297-sec. extra-heavy cycle
  • Compatible with 20-in. x 20-in. racks
  • 18-in. trays fit in the 171/4-in. door opening
  • Auto-start and auto-fill features make it easy to start a cycle
  • Built-in, 70-degree F rise booster heater increases sanitizing water to the proper temperature
  • Sani-Sure feature makes sure that theheats rinse water toreaches the proper temperature
  • Multi-cycle timer allows enables the operator to monitor the cycle time in any cycle
  • Interchangeable wash and rinse arms can be screwed out to simplify the cleaning process
  • Stainless steel nozzles provide a superior clean
  • Self-draining, stainless steel pump eliminates water from the wash cycle
  • Large scrap basket collects crumbs to prevent the drain from clogging
  • Front dress panel protects the internal components from damage
  • Adjustable bullet feet can be used to level unit on uneven floors

Top-mounted Control System

  • Top-mounted controls are easy to access for quick and simple operation
  • Vent fan control shuts off the fan when the unit is idling
  • Operator can flip the deliming switch to remove hard water deposits
  • High-limit thermostat protects the unit from overheating
  • Low water protection ensures water levels are suitable for the cycle

Dimensions & Utilities

  • 251/4 in. W x 251/4 in. D x 643/8 in. H
  • 46.3 A, 1 HP

TempStar Dishwasher, door type, high temperature electric tank heat with built-in booster, universal (straight-thru/corner) type, approximately (58) racks/hour capacity (0.89 gallons per rack), stainless steel exterior, universal timer, Sani-Sure, dishtable not included, cETLus, ETL-Sanitation, ENERGY STAR, 208v/60/3ph

Documents:

Additional information

Voltage

208 V, 230 V

Phase

1 Phase, 3 Phase
