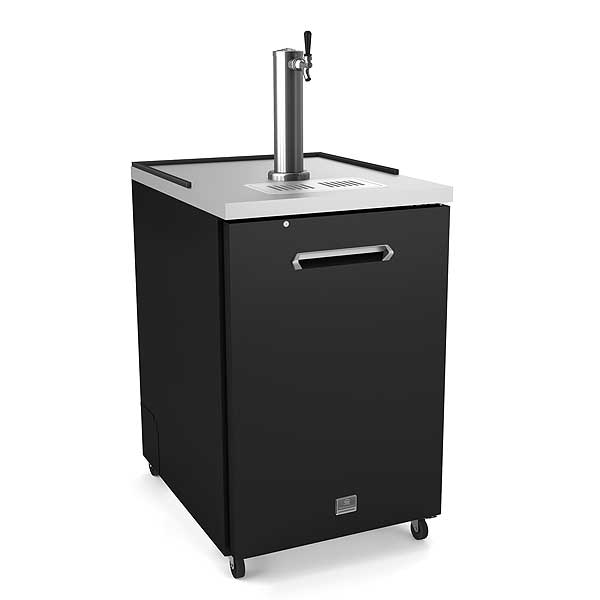

Kelvinator Commercial KCHBBD1D1T Draft Beer Cooler 24″W

$2,084.03$2,184.03

  • Hydrocarbon refrigerant gas R290 for the lowest environmental impact (GWP=3) – CFC and HCFC free.
  • Designed to accommodate a variety of beer kegs.
  • 3″ (77 mm) diameter stainless steel insulated beer column. Cold air is channeled directly into beer column to reduce foaming and maximize draft beer profits.

Plant Based Pros is an Authorized Retailer of Kelvinator products.

Items purchased from Plant Based Pros:

  • Are brand new and in original packaging.
  • Are covered by the full manufacturer warranty.
  • Qualify for manufacturer service and support.
  • Questions? Call  800-522-0517
Clear

Description

Beer dispenser with 1 door and 1 column. Exterior back and bottom panel in galvanized steel, top panel in 304 stainless steel and exterior panel in painted steel; interior back and side panels in 430 stainless steel, interior bottom panel and worktop in 304 stainless steel.

Fin & tube condenser to improve the performances in high temperature environments. Automatic Defrost Cooling System and temperature control. Vinyl heavy duty adjustable, easy to handle and clean shelves.

Electric

  •  Supply voltage: 115 V/1 ph/60 Hz
  •  Electrical power, max: 0.31 kW
  •  Current consumption: 3 Amps
  •  Plug type: USA NEMA 5-15P

Key Information

  •  Model # 738295
  •  External dimensions, Width: 24 1/16″ (612 mm)
  •  External dimensions, Depth: 29 15/16″ (813.8 mm)
  •  External dimensions, Height: 51 5/8″ (1356.8 mm)
  •  Number and type of doors: 1 Full
  •  Internal Dimensions (depth): 19 11/16″
  •  Internal Dimensions (height): 30 1/2″
  •  Internal Dimensions (width): 20 “
  •  Shipping height: 43 11/16″ (1400 mm)
  •  Shipping weight: 165 lbs (75 kg)
  •  Shipping volume: 22.42 ft³ (0.63 m³)
  •  Number and type of grids (included): 4 – Vinyl-Coated Steel
  •  Type of external material: Black Prepainted Steel
  •  Type of internal material: Stainless Steel
  •  Warranty: 3 / 5 years

Capacity

  •  Gross capacity: 8.99997 cu.feet

Refrigeration Data

  •  Compressor Horsepower: 1/5
  •  Refrigerant type: R600a
  •  Refrigerant weight: 90 g
  •  Operating temperature min.: 35.6 °F
  •  Operating temperature max.: 42.8 °F
  •  Condenser type: Fin & tube
