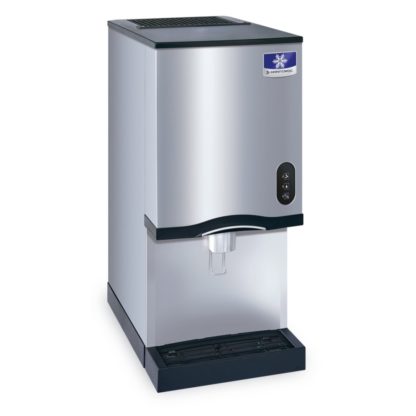

Manitowoc Ice CNF-0201A-L 315 lb Countertop Nugget Ice & Water Dispenser – 10 lb Storage, Cup Fill, 115v

The Manitowoc Ice CNF0201A-L countertop ice and water dispenser works great in a variety of settings, such as hospitals, cafeterias, offices, and lobbies. Its nugget ice is a popular choice among customers because its chewability and size ensure it is ideal for casual consumption. Effectively helping customers see what they’re pouring, the dispenser’s blue LED light illuminates it in areas with low ambient lighting. In case of spills, a large drain pan rests below the dispenser, and the DuraTech front panel resists hardwater staining and can be wiped clean.

Product Details

• Creates soft nugget ice
• 10-lb. bin capacity
• Large drain pan contains ice spillage
• Rear or underside drain connections let the unit be flush mounted on the left
• Blue LED light improves dispenser visibility in low lighting
• Air-cooled system
• DuraTech front panel
• Lever dispenser is quick and user friendly
• Produces 315 lb./24 hr. of ice at 70 degrees F air, 50 degrees F water
• Produces 222 lb./24 hr. of ice at 90 degrees F air, 70 degrees F water
• Operation switch has on, off, and clean settings
• Ideal ambient air temperature: 45-110 degrees F
• Ideal incoming water temperature: 45-90 degrees F
• Ideal incoming water pressure: 20-80 PSI
• Ideal clearances: 24 in. on top, 8 in. on sides, 5 in. on back
• R404A refrigerant
• 2,300-BTU heat transfer capacity

Dimensions & Utilities

• 16.25 in. W x 24 in. D x 35 in. H
• 10.3 A, 6.69 kW, ¹/₃ HP
• 115 V/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug

From The Manufacturer

Ice Maker & Water Dispenser, 16-1/4″W x 24″D x 35″H, countertop, nugget style, air-cooled, self-contained condenser, production capacity up to 315 lb/24 hours at 70°/50° (222 lb at 90°/70°), 10 lb bin storage capacity, lever activated dispensing, Duratech exterior, R404A, 1/3 HP, NSF, cULus

*Image may not depict product color, inclusions or accessories.

Documents:

• Spec Sheet
