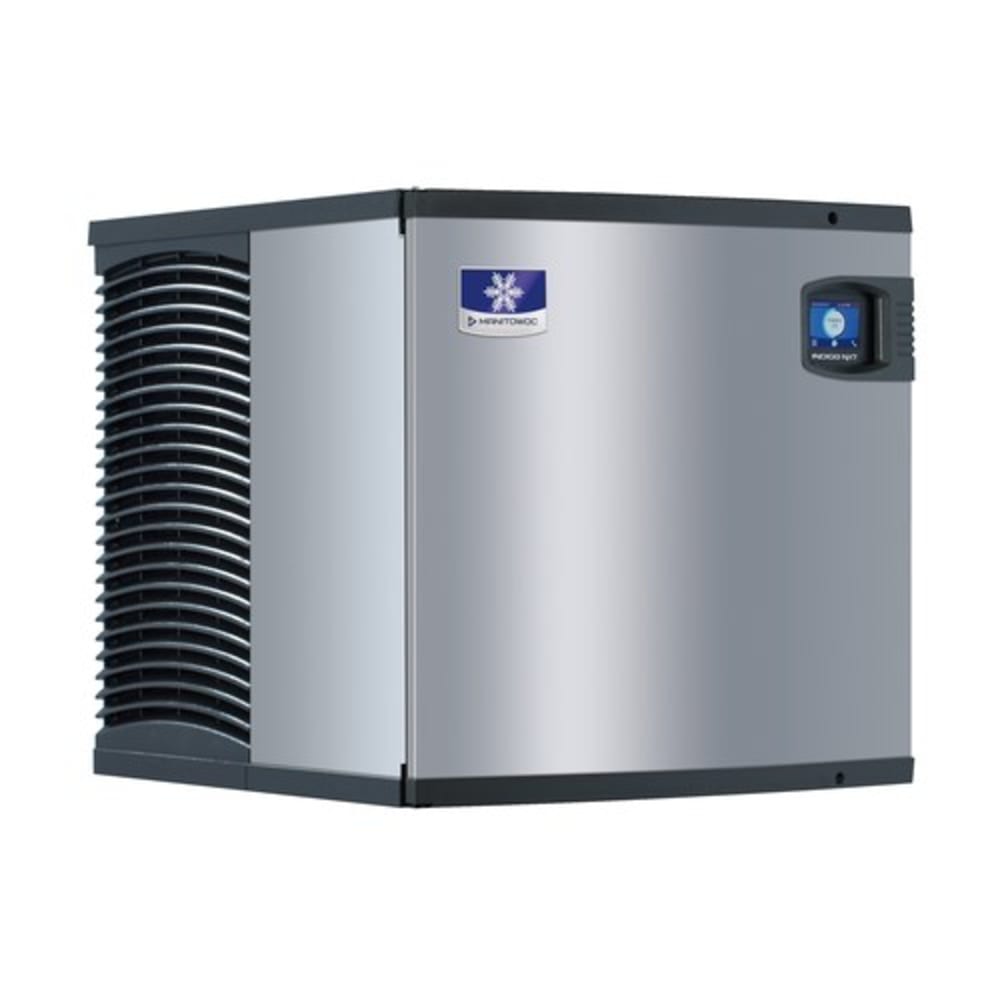

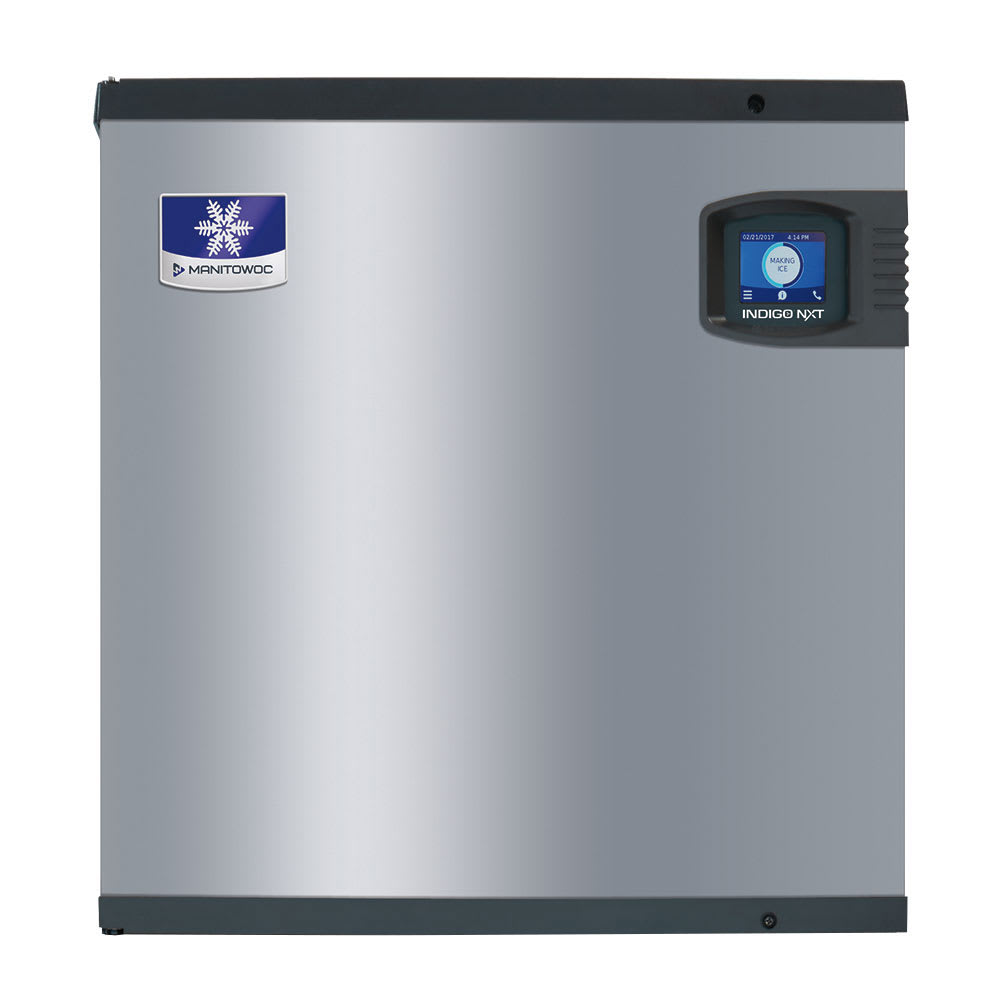

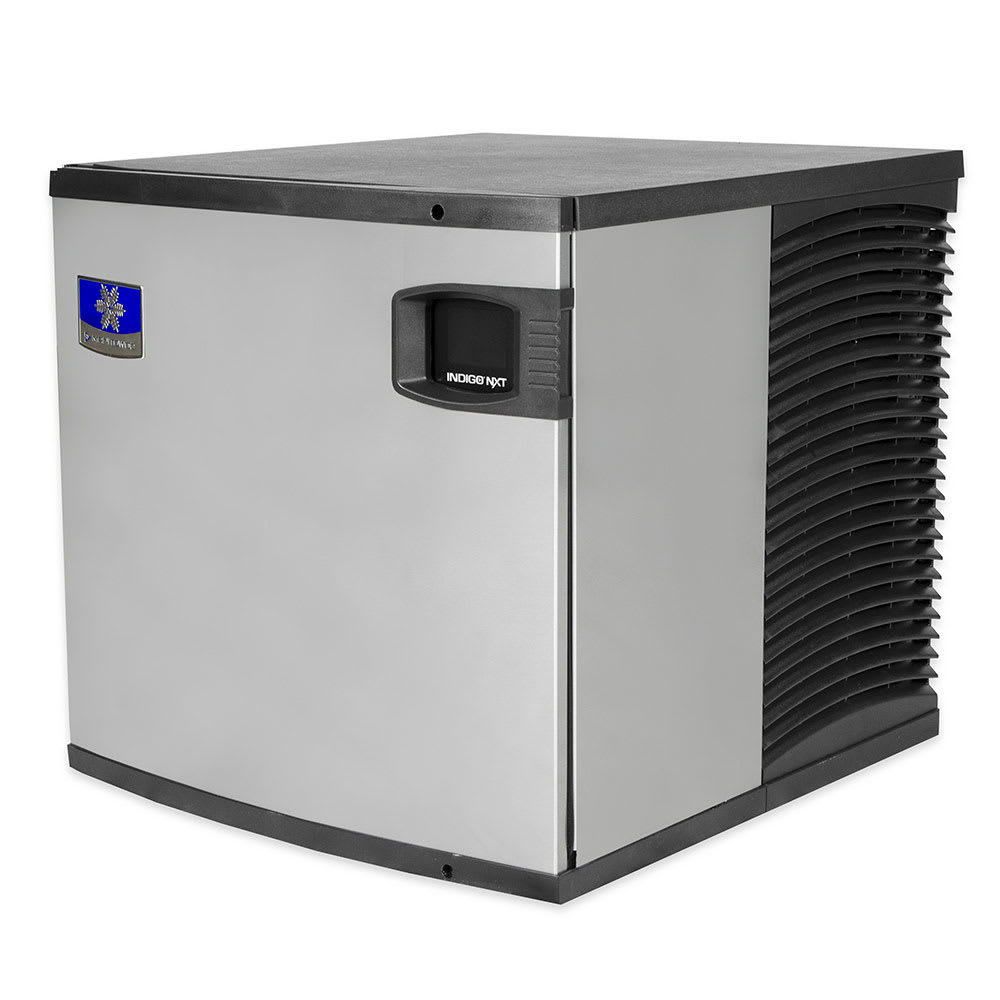

Manitowoc Ice IDT0420A 22″ Indigo NXT Full Cube Ice Machine Head – 470 lb/24 hr, Air Cooled, 115v

$3,585.27

  • 470-lb. maximum daily ice production
  • 375-lb. AHRI-certified daily ice production

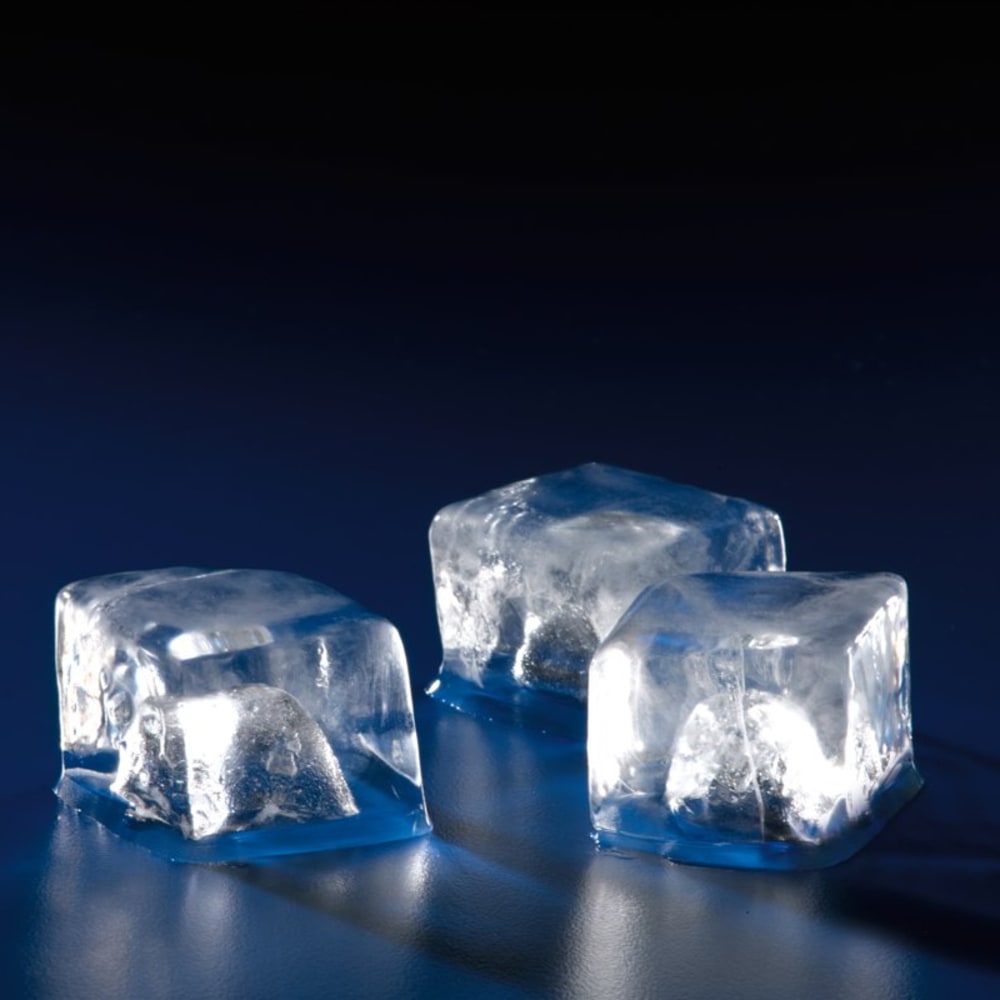

  • Makes full-size cube ice

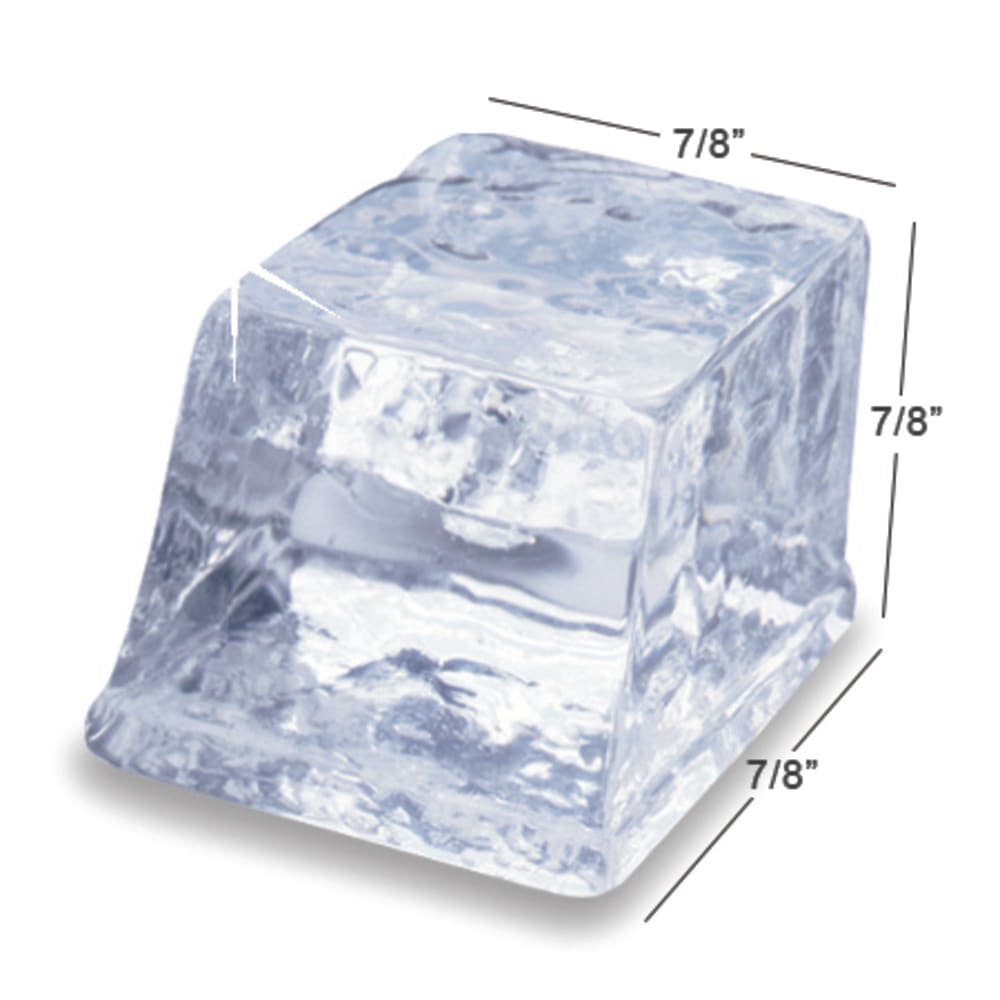

  • Full-cube ice size: 7/8 in. x 7/8 in. x 7/8 in.
  • Energy efficient for low ownership cost

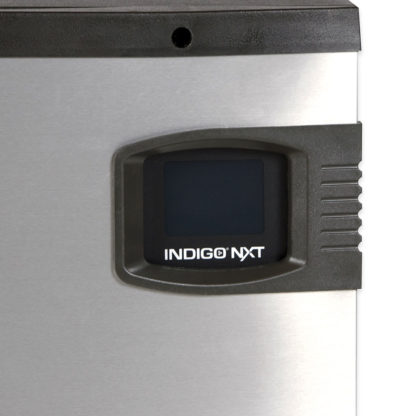

  • Operated with easyTouch touchscreen display
  • Programmable by time and ice volume
  • 24-hr. preventative maintenance and diagnosis
  • Acoustical ice sensing probe detects ice density
  • Removable water-trough, distribution tube, curtain, water probe, and water pump
  • Foodzone accessible through swinging door
  • Clear-coated, fingerprint-resistant DuraTech exterior
  • R140A refrigerant
  • Air-cooled, self-contained condenser
  • 3,800-BTU average heat transfer capacity; 6,000-BTU peak heat transfer capacity
  • Ideal ambient air temperature: 40-110 degrees F
  • Ideal incoming water temperature: 40-90 degrees F
  • Ideal incoming water pressure: 20-80 PSIG
  • Ice storage bin or dispenser is sold separately
SKU: ManitowocIceIDT0420A Category:

Description

The Manitowoc Ice IDT0420A ice maker can produce 470 pounds of ice in 24 hours. This maximum amount can only be achieved if ambient air and incoming water conditions are at an ideal level. It makes full-cube ice, which is often used for soft drinks and other fountain beverages. This unit uses air to cool the refrigerant, and when it is cold, it removes heat from the evaporator plate so water will freeze and make cubes.

This Manitowoc Ice IDT0420A full-cube ice machine head is operated through an icon-based touch screen and can be programmed to turn on and off at certain times of the day or by ice production amount. Featuring R410A refrigerant and self-diagnosis for preventative measures, this head utilizes an acoustical sensing probe to gauge how thick ice is before dispensing. With a quick-cleaning DuraTech exterior, this unit includes a removable water trough, distribution tube, curtain, water probe, and water pump.

Product Details

  • 470-lb. maximum daily ice production
  • 375-lb. AHRI-certified daily ice production
  • Makes full-size cube ice
  • Full-cube ice size: 7/8 in. x 7/8 in. x 7/8 in.
  • Energy efficient for low ownership cost
  • Operated with easyTouch touchscreen display
  • Programmable by time and ice volume
  • 24-hr. preventative maintenance and diagnosis
  • Acoustical ice sensing probe detects ice density
  • Removable water-trough, distribution tube, curtain, water probe, and water pump
  • Foodzone accessible through swinging door
  • Clear-coated, fingerprint-resistant DuraTech exterior
  • R140A refrigerant
  • Air-cooled, self-contained condenser
  • 3,800-BTU average heat transfer capacity; 6,000-BTU peak heat transfer capacity
  • Ideal ambient air temperature: 40-110 degrees F
  • Ideal incoming water temperature: 40-90 degrees F
  • Ideal incoming water pressure: 20-80 PSIG
  • Ice storage bin or dispenser is sold separately

Dimensions & Utilities

  • 22 in. W x 24.5 in. D x 21.5 in. H
  • 11.3 A, 5.6 kW
  • 115 V/60 Hz/1 ph

From The Manufacturer

Indigo NXT Series Ice Maker, cube-style, air-cooled, self-contained condenser, 22″W x 24-1/2″D x 21-1/2″H, production capacity up to 470 lb./24 hours at 70°/50° (375 lb. AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech exterior, dice size cubes, R410A refrigerant, NSF, cULus, CE, ENERGY STAR

*Image may not depict product color, inclusions or accessories.
