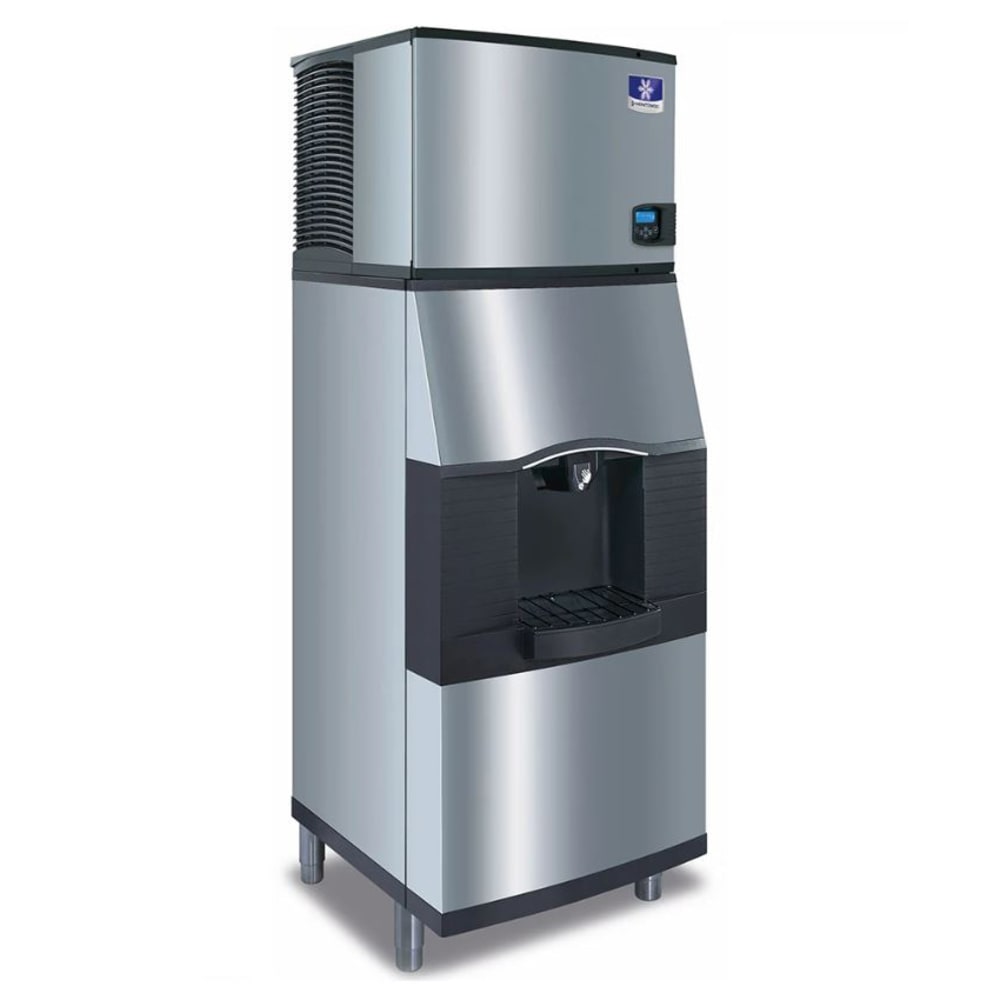

Manitowoc Ice IDT0900W/SFA292 780 lb Full Cube Ice Maker w/ Ice Dispenser – 180 lb Storage, Bucket Fill, 208-230v/1ph

Featuring easyTouch controls, the Manitowoc Ice IDT0900W-261/SFA292 ice maker and dispenser gives users control over production, as they can specify which hours the machine should run or how much ice it should make in a day. The amount it can make depends on the ambient air and water supply temperatures, so if it’s running continuously in ideal conditions, the unit produces 780 pounds of full-cube dice ice. These cubes are square and measure ⁷/₈ inch on all sides, and so they are great for cooling drinks, filling buckets, and bagged applications, they melt relatively slowly.

This Manitowoc Ice IDT0900W-261/SFA292 ice machine and dispenser provides convenient access to water and ice. Accommodating most containers, the dispensing area is large, and its levers’ rocking chute mechanism reacts quickly to pressure. Any runaway ice or water overflow is contained by the drain pan, so the floors can stay safe and dry, and to resist corrosion and smudges, the metal exterior of both the dispenser and the ice machine is coated in DuraTech&trade. When the ice maker’s internal components need to be cleaned, it alerts users with notifications on the easyTouch screen. Parts are accessible through the front, and some components-like the curtain, water trough, and distribution tube-can be removed for cleaning.

Ice Maker Details

• Part of the Indigo NXT series
• 780-lb. maximum daily ice production
• 665-lb. AHRI-certified daily ice production
• Sensor probe measures ice to ensure consistent cube size
• Dice ice size: ⁷/₈ in. x ⁷/₈ in. x ⁷/₈ in.
• easyTouch screen controls have an intuitive, icon-based interface
• Production can be programmed to run only at set times or until a daily quota is reached
• Alerts provide maintenance and cleaning recommendations
• DuraTech exterior has a swing-out front panel for access to foodzone
• Foodzone’s curtain, water trough, distribution tube, and sensing probe are removable
• AlphaSan agent reduces unwanted bacterial growth on internal components
• Self-contained condensing unit with efficient, water-based cooling
• R410A refrigerant
• 12,700 average BTU; 14,800 peak BTU
• Ice Dispenser Details
  • 180-lb. ice capacity
  • 1 water lever and 1 ice lever
  • Large dispensing area for buckets and big containers
  • Rocking chute dispense lever responds quickly when pressure is added or removed
  • Drain pan captures overflow and contains messes
  • Corrosion-resistant DuraTech coating on exterior

  Ideal Operating Conditions

  • Clearances: 5 in. at back, 8 in. at top, 8 in. at sides
  • Surrounding air temperature: 40-100 degrees F
  • Incoming water pressure: 20-80 PSI
  • Water temperature: 40-90 degrees F

  Dimensions & Utilities

  • Ice Maker
    • 30.0 in. W x 24.5 in. D x 26.5 in. H
    • 8.8 A, 4.02 kW
    • 208-230 V/60 Hz/1 ph
  • Ice Dispenser
    • 30.0 in. W x 32.0 in. D x 60.5 in. H
    • 1.6 A
    • 115 V/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug

  From The Manufacturer

  Indigo NXT Series Ice Maker w/ Ice Dispenser, cube-style, water-cooled, self-contained condenser, 30″W x 24-1/2″D x 26-1/2″H, production capacity up to 780 lb/24 hours at 70°/50° (665 lb AHRI certified at 90°/70°), DuraTech exterior, dice size cubes, R410A refrigerant, NSF, cULus; Vending Ice Dispenser with Built-In Water Valve, touchless lever, floor model, 30″W x 32″D x 82″H, AHRI certified 180-lb capacity, designed for dice or half-dice ice type, fills containers up to 11″ high, stainless steel exterior with vinyl trim, accepts 22″ or 30″ dice or half-dice machines, cULus, CE, ADA compliant

  *Image may not depict product color, inclusions or accessories.
