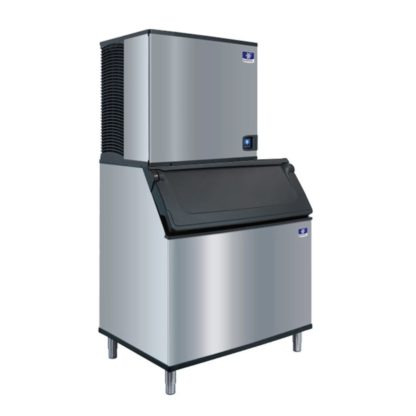

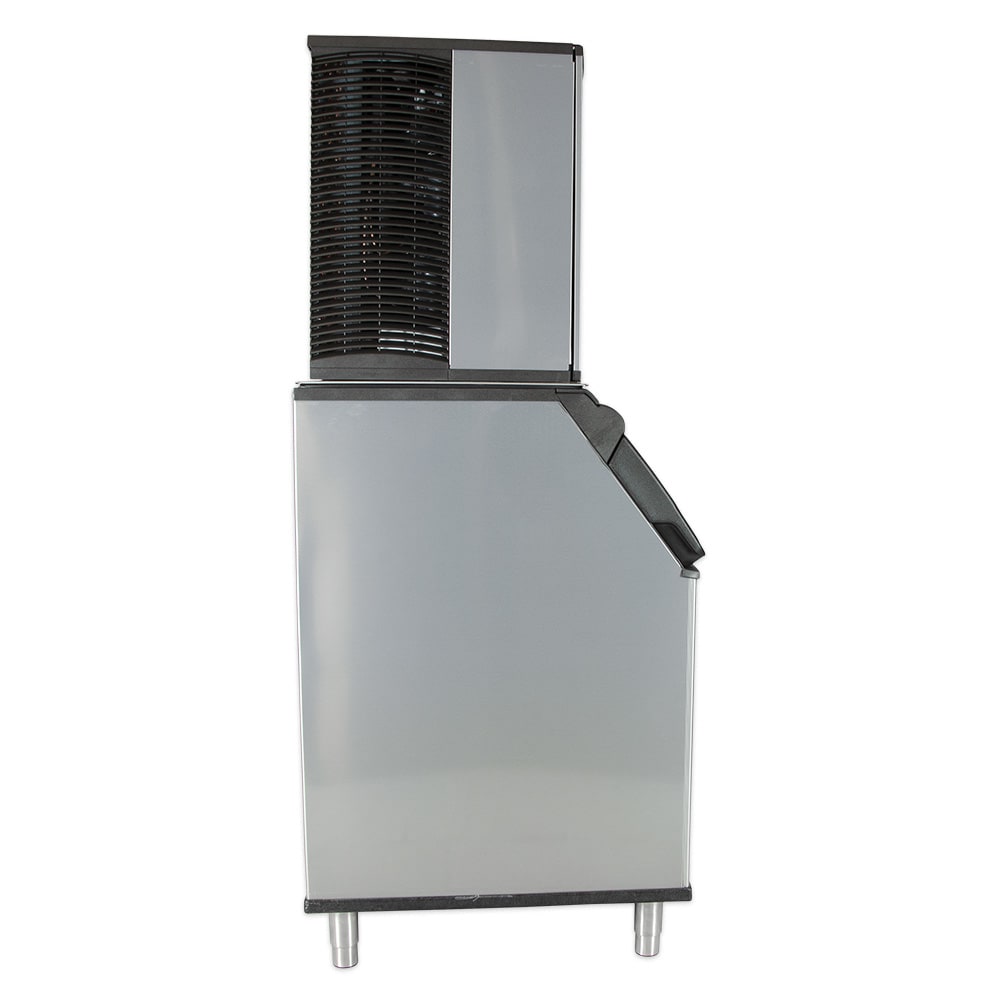

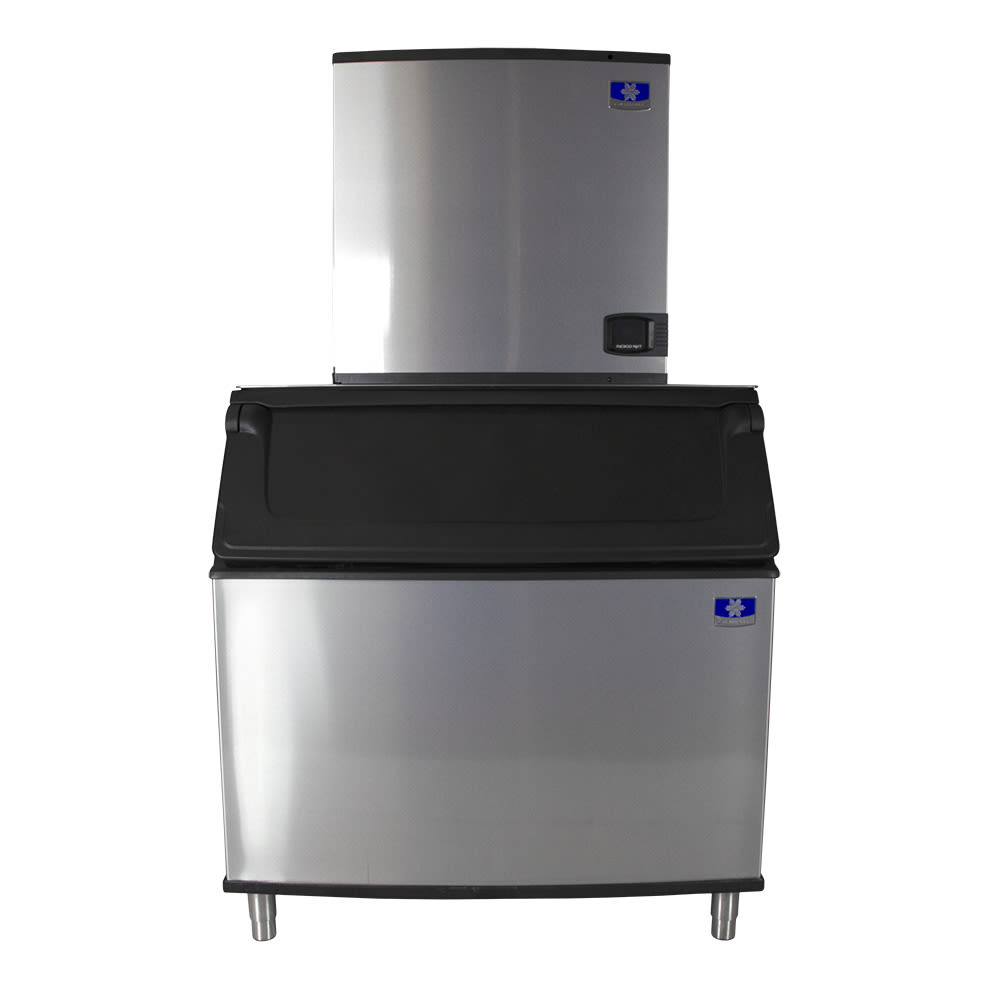

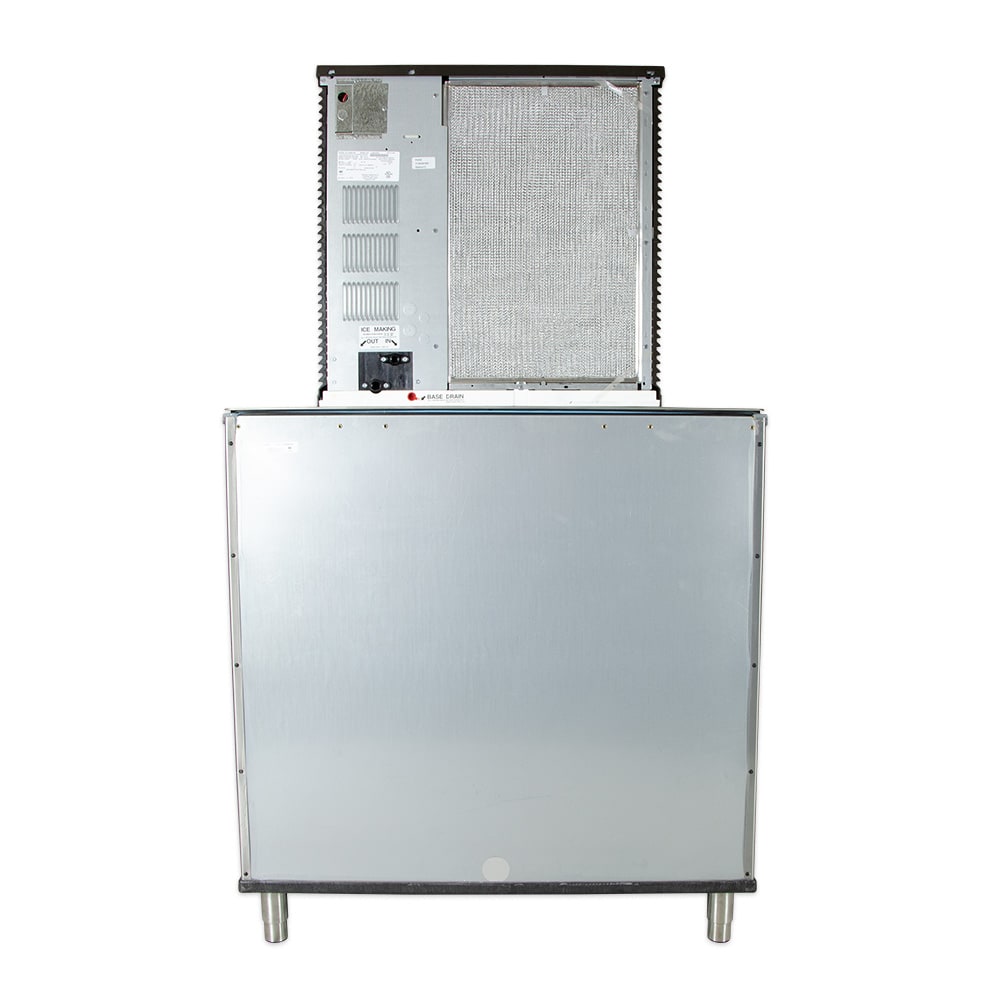

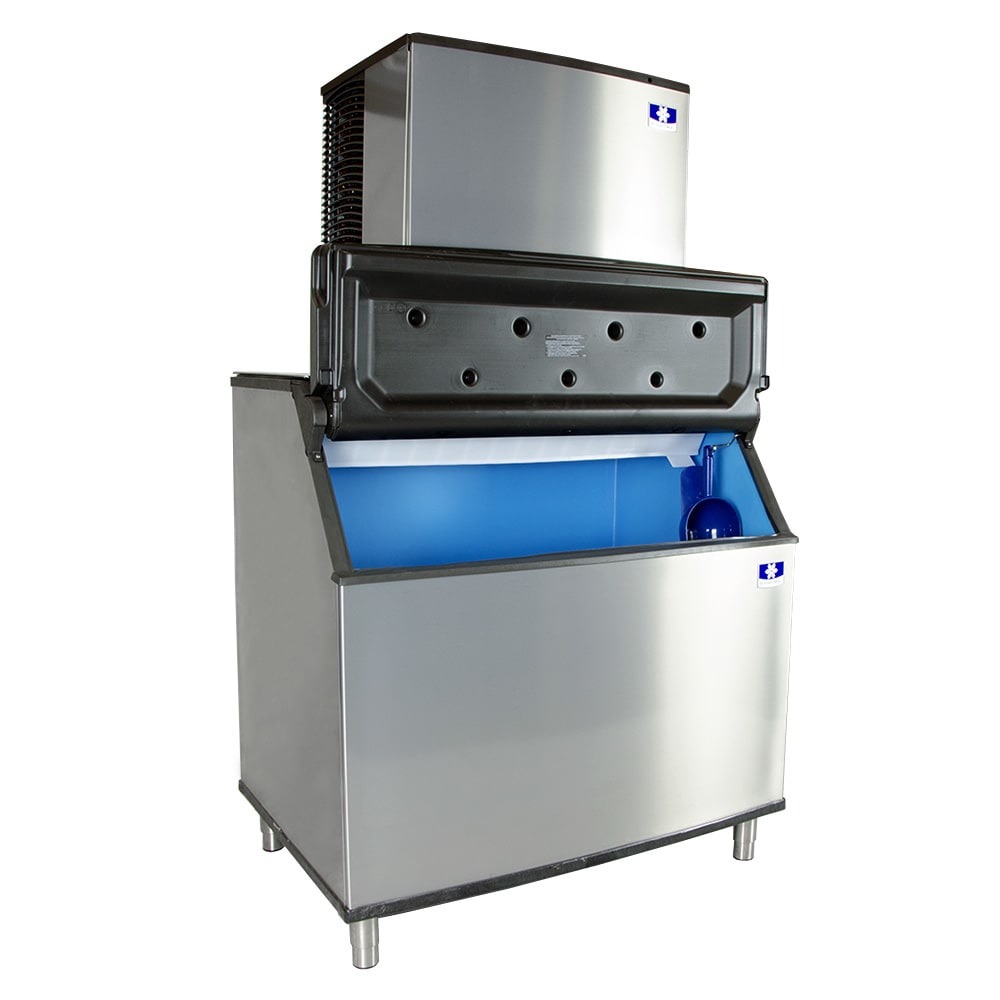

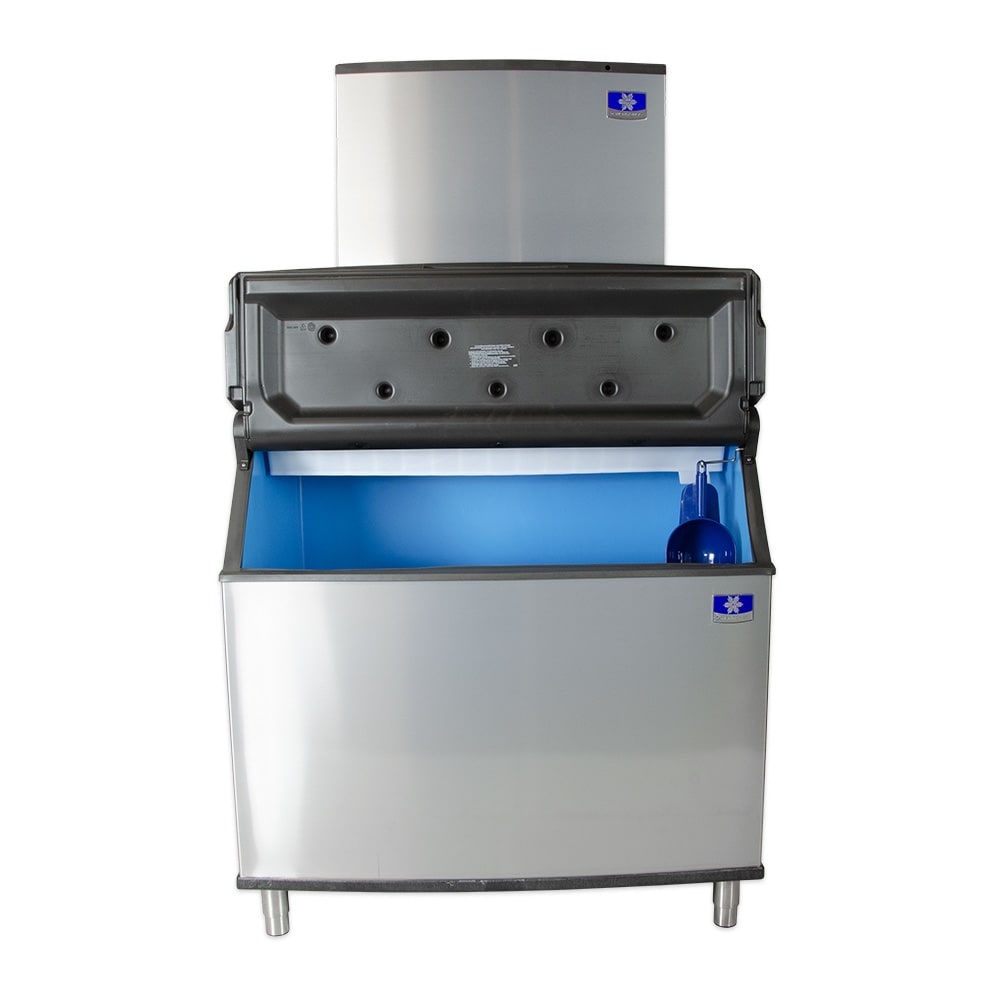

Manitowoc Ice IDT1200A/D970/K00470 1196 lb Indigo NXTFull Cube Ice Maker w/ Bin – 882 lb Storage, Air Cooled, 208-230v/1ph

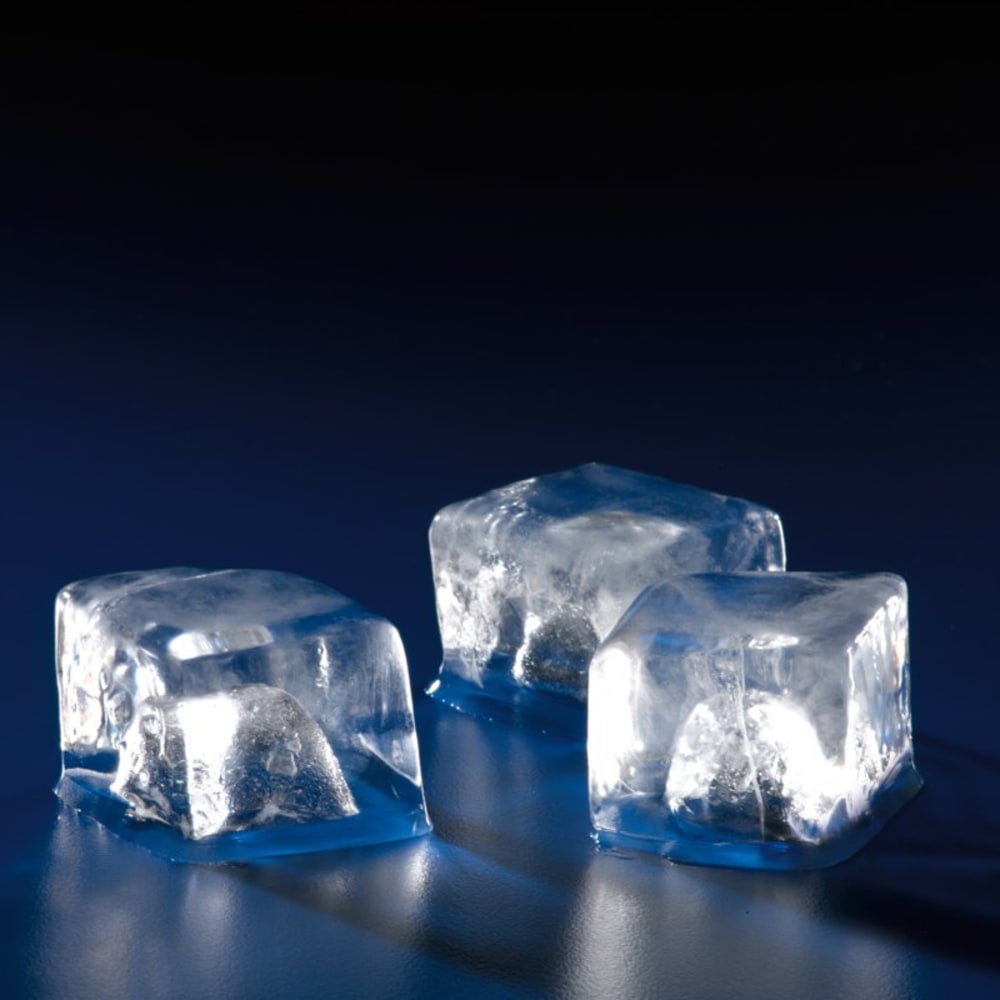

In a day, the Manitowoc Ice IDT1200A/D970/K00470 ice maker, bin, and adaptor can produce 1,196 pounds of dice ice and save 882 pounds for later. Ice forms as water freezes onto the evaporator grid, creating ⁷/₈-inch by ⁷/₈-inch by ⁷/₈-inch cubes. Before they are ejected into the bin, a sensor probe checks their size to ensure consistency. The bin lid is insulated to keep cubes frozen, and to prevent contamination, a holder keeps the scoop out of the ice.

This Manitowoc Ice IDT1200A/D970/K00470 ice machine, adaptor, and bin is programmable using the easyTouch controls on the front, and both the amount it produces each day and the hours it runs can be adjusted as needed. The system continuously runs diagnostics, and if cleaning is needed, it will alert the operator. Its food zone components can be accessed through the hinged front panel. Several of the components are protected against bacteria, while others are removable, enabling operators to clean around them without straining.

Ice Maker Details

• 1,196-lb. maximum daily ice production
• 950-lb. AHRI-certified daily ice production
• Makes full-size cubes

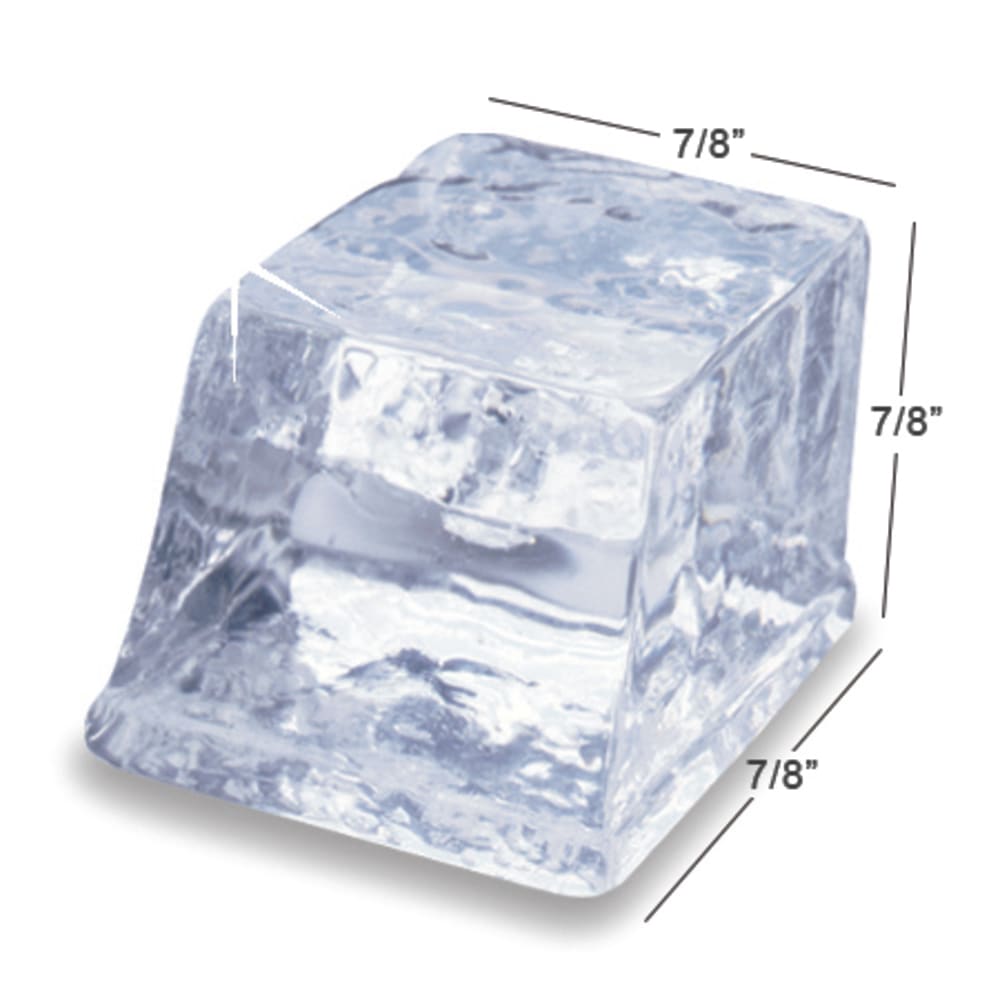

• Cube size: ⁷/₈ in. x ⁷/₈ in. x ⁷/₈ in.
• Acoustical sensing probe ensures the correct size of ice
• User-friendly control panel features icon-based navigation
• Ice production can be adjusted according to time or volume
• Removable parts in the foodzone facilitate cleaning
• Bacteria growth is limited between cleanings by the AlphaSan antimicrobial agent
• System continuously runs diagnostics and provides preventive maintenance information
• DuraTech exterior coating for corrosion resistance
• Bin adaptor secures the head to the bin
• R410A refrigerant
• Air-cooled condensing unit
• 16,200 average BTU; 19,100 peak BTU

Ice Bin Details

• 882-lb. storage capacity
• 29.7-cu.-ft. AHRI-certified storage capacity
• Ice melting is slowed by foam insulation
• Side grips built into door for convenient access
• Latch-open door facilitates scooping ice
• 5.3-lb.-capacity scoop
• Thumb and knuckle guard on scoop protects ice from germs on hands
• DuraTech exterior coating masks fingerprints and stains
• Artic Blue polyurethane liner for sanitary storage

Ideal Operating Conditions

• Incoming water pressure: 20-80 PSI
• Water temperature: 40-90 degrees F
• Ambient air temperature: 40-110 degrees F
• Clearances: 5 in. on back, 12 in. on top and sides

Dimensions & Utilities

• Ice maker: 30 in. W x 24.5 in. D x 29.5 in. H
• Bin: 48 in. W x 34 in. D x 50 in. H
• 14.2 A, 4.8 kW
• 208-230 V/60 Hz/1 ph

From The Manufacturer

IDT-1200A Ice Maker: Indigo NXT Series Ice Maker, cube-style, air-cooled, self-contained condenser, 30″W x 24-1/2″D x 29-1/2″H, production capacity up to 1196 lb/24 hours 70°/50° (950 lb AHRI certified at 90°/70°), DuraTech exterior, regular dice size cubes, NSF, cULus, CE, 208-230v/60/1ph; D-970 Ice Bin: Ice Bin, 48″W x 34″D, 50″H, with side-hinged front-opening door, side grips, AHRI certified 882 lb ice storage capacity (29.7 cu. ft.), for top-mounted ice maker, Duratech exterior, NSF; K-00470 Ice Bin Top: Bin Adapter, for 30″ Indigo, Indigo NXT, RFF, RNF, ice machine on a 48″ B or D-970 bin

*Image may not depict product color, inclusions or accessories.
