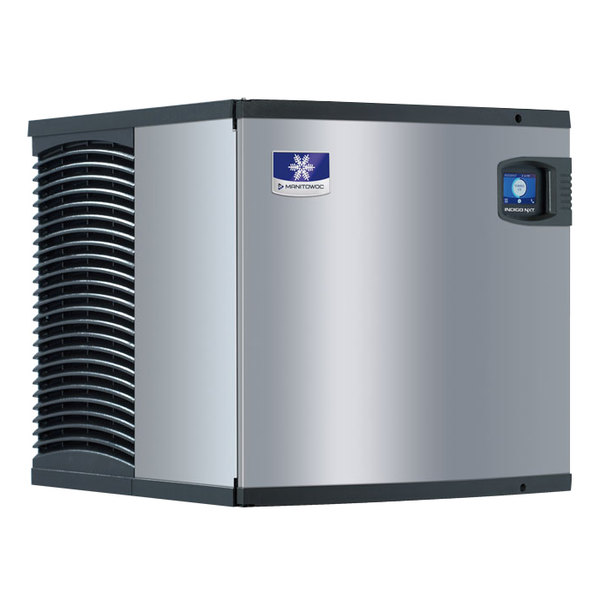

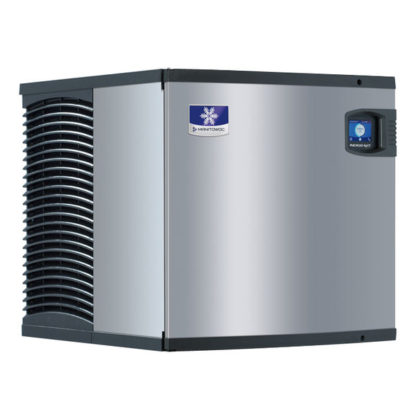

Manitowoc Ice IYT0420W 22″ Indigo NXT™ Half Cube Ice Machine Head – 490 lb/24 hr, Water Cooled, 115v

$3,764.00

  • Part of the Indigo NXT series
  • Maximum daily production: 490 lbs. per 24 hours
  • AHRI-certified production: 425 lbs. per 24 hours
  • Water-cooled condensing unit
  • Ice dimensions: 0.38 in. x 1.13 in. x 0.88 in.
  • Programmable ice production based on volume and time of day
  • Acoustical sensing probe monitors ice thickness
  • easyTouch display
  • 24-hour preventive maintenance and daily feedback
  • Accessible foodzone through swing-out front door
  • Water trough, curtain, distribution tube, water probe, and water pump are removable
  • AlphaSan® antimicrobial agent reduces bacteria growth in some of the components
  • 1-touch cleaning cycle with displayed instruction
  • Automatic reminder and accessory detection
  • Time and date display
  • 13 language options and continuous operating status
  • DuraTech coating on the stainless steel exterior
  • Uses R410A refrigerant
  • Ice bin is sold separately
  • Ideal incoming air temperature: 40-110 degrees F
  • Ideal incoming water temperature: 40-90 degrees F
  • Ideal incoming water pressure: 20-80 PSI
  • 3,800-BTU heat transfer capacity
SKU: PBPManitowocIceIYT0420W Category:

Description

Producing between 425 and 490 pounds of half-dice ice in a 24-hour period, the Manitowoc IYT0420W Indigo NXT™ ice machine head can be programmed to deliver ice at certain times or in specific volumes. Before ice drops into a separately sold bin, it’s measured by the sensing probe to ensure each sheet is uniform. The unit performs preventive maintenance automatically and provides diagnostic feedback. Cleaning the ice maker is simple because the components in the foodzone are accessible through the front door. Some of the components are removable, and some are made with an antimicrobial agent that reduces bacterial growth. This unit has DuraTech® coating on its stainless steel exterior to fend off corrosion, fingerprints, and dirt.

Users can monitor the Manitowoc IYT0429W ice maker head with the easyTouch® display, which provides icons on its touchscreen that users can manage, such as general operations, temperature, and production. As a water-cooled unit, it requires R410A refrigerant for best results. Overall, it has a 22-inch-wide by 24.5-inch-deep by 21.5-inch-high structure to fit on top of a D-320 or D-420 ice storage bin.

Product Details

  • Part of the Indigo NXT series
  • Maximum daily production: 490 lbs. per 24 hours
  • AHRI-certified production: 425 lbs. per 24 hours
  • Water-cooled condensing unit
  • Ice dimensions: 0.38 in. x 1.13 in. x 0.88 in.
  • Programmable ice production based on volume and time of day
  • Acoustical sensing probe monitors ice thickness
  • easyTouch display
  • 24-hour preventive maintenance and daily feedback
  • Accessible foodzone through swing-out front door
  • Water trough, curtain, distribution tube, water probe, and water pump are removable
  • AlphaSan® antimicrobial agent reduces bacteria growth in some of the components
  • 1-touch cleaning cycle with displayed instruction
  • Automatic reminder and accessory detection
  • Time and date display
  • 13 language options and continuous operating status
  • DuraTech coating on the stainless steel exterior
  • Uses R410A refrigerant
  • Ice bin is sold separately
  • Ideal incoming air temperature: 40-110 degrees F
  • Ideal incoming water temperature: 40-90 degrees F
  • Ideal incoming water pressure: 20-80 PSI
  • 3,800-BTU heat transfer capacity

Dimensions & Utilities

  • 22 in. W x 24.5 in. D x 21.5 in. H
  • 10.6 A, 4.24 kW
  • 115 V/60 Hz/1 ph

From The Manufacturer

Indigo NXT™ Series Ice Maker, cube-style, water-cooled, self-contained condenser, 22″W x 24-1/2″D x 21-1/2″H, production capacity up to 490 lb/24 hours at 70°/50° (425 lb AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, half-dice size cubes, R410A refrigerant, NSF, cULus, CE
