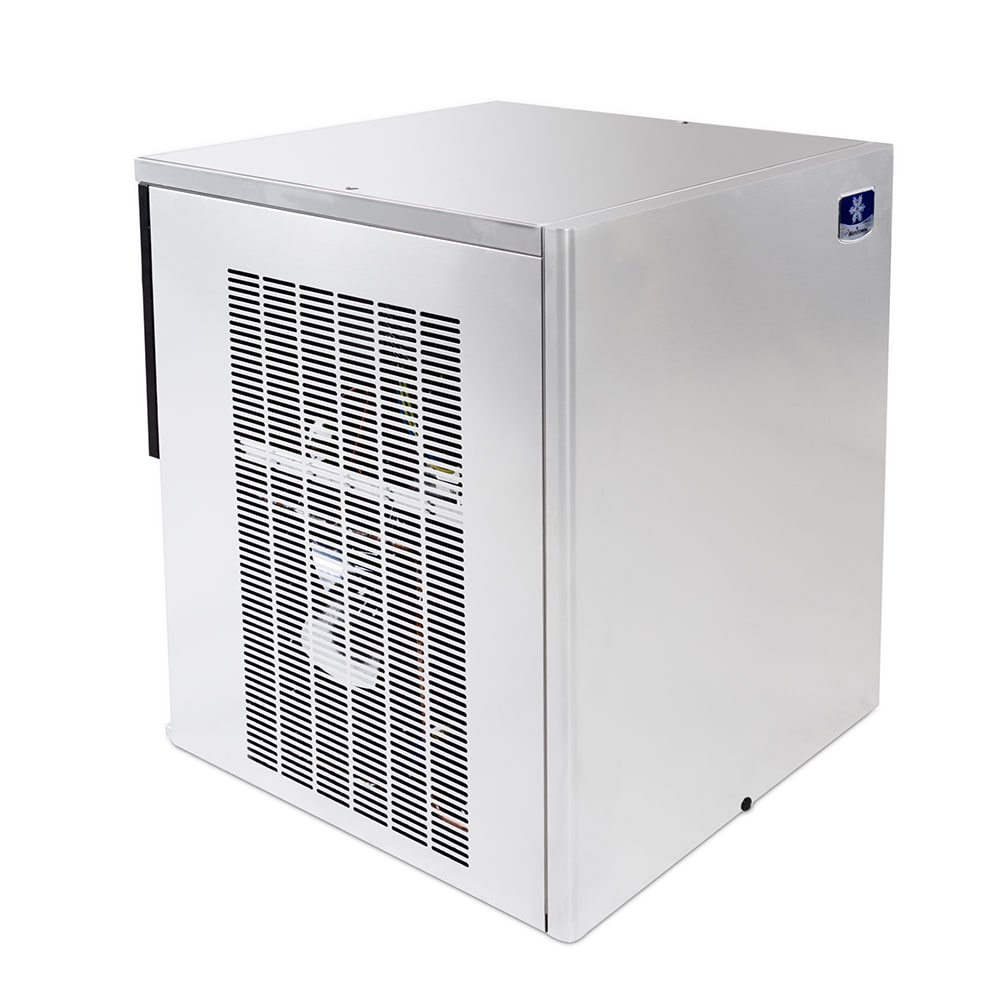

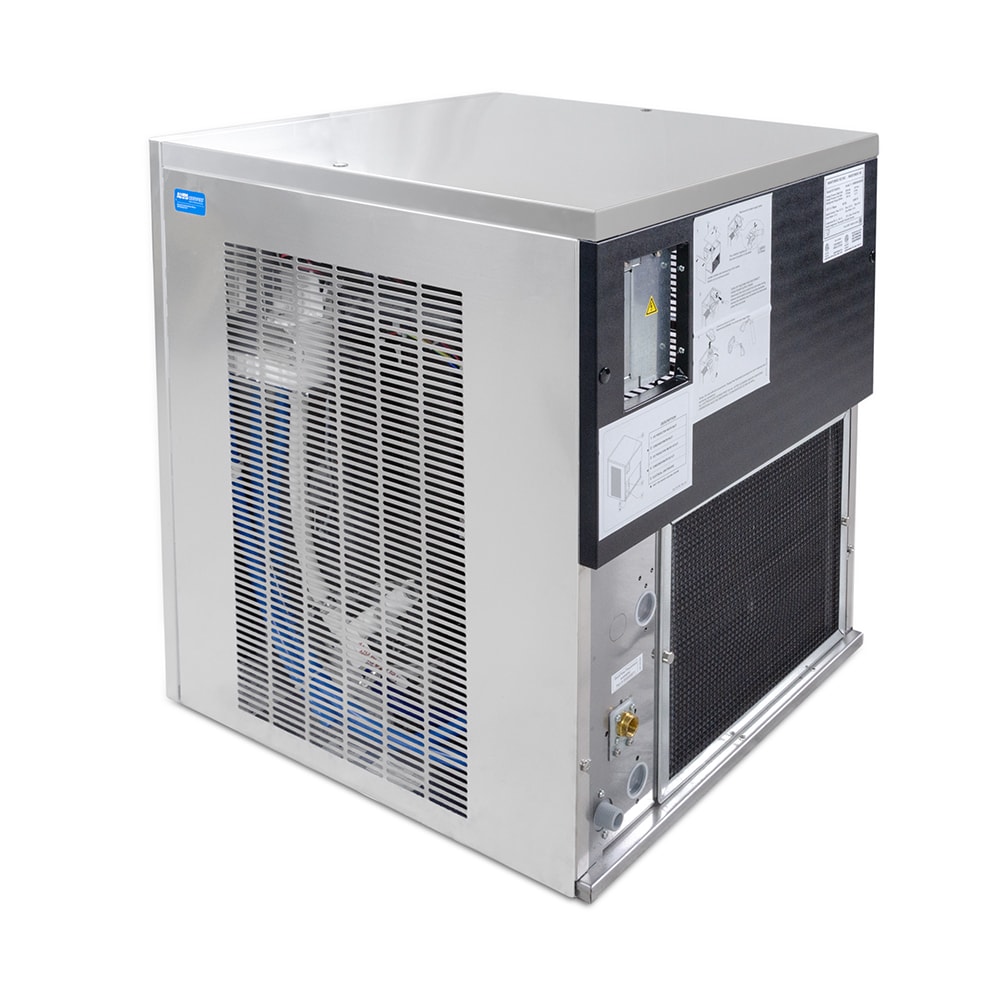

Manitowoc Ice RNF1100A 30″ Nugget Ice Machine Head – 1078 lb/24 hr, Air Cooled, 208/230v/1ph

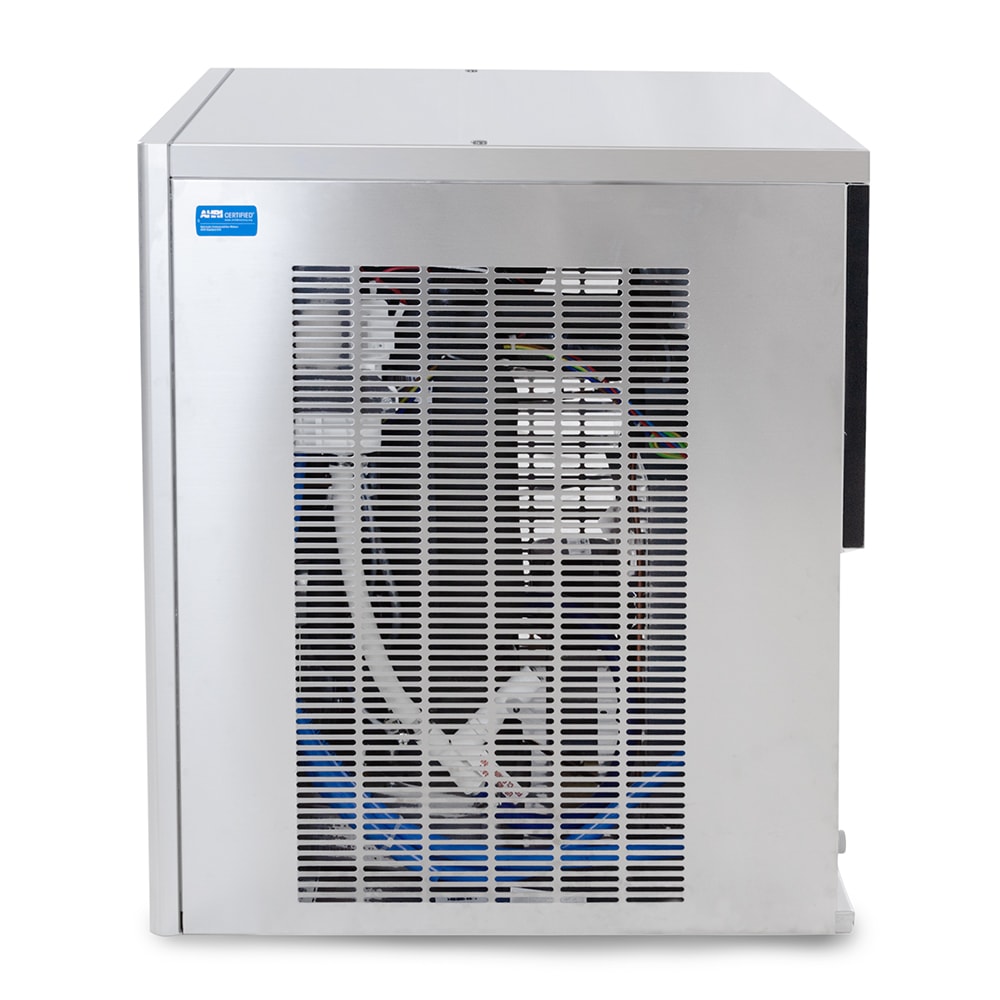

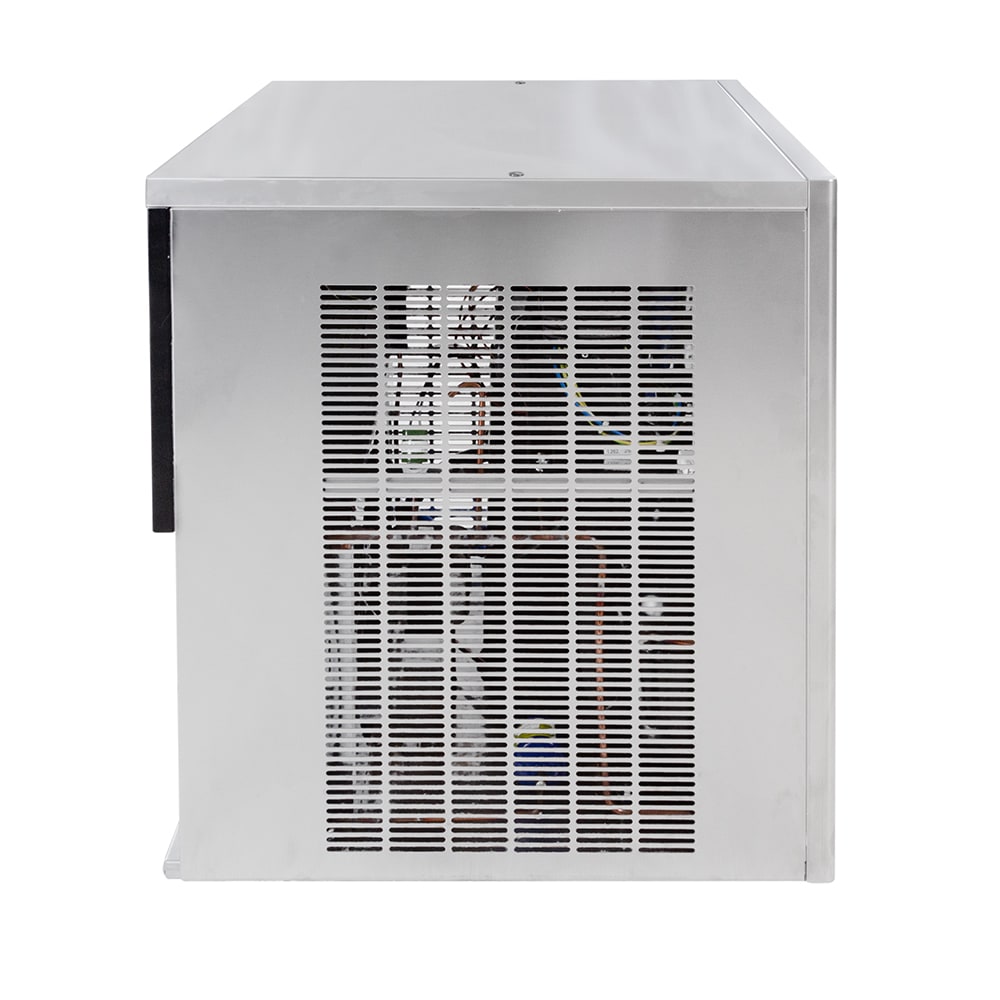

The Manitowoc RNF1100A ice machine head produces nugget ice, which is ideal for use in beverages because its compact design reduces available space for costly drinks. It can be attached to virtually any 30-inch-wide Multiplex beverage dispenser to set up a drink station, but dispensers and bins are sold separately. Running on eco-friendly R404A refrigerant, this unit has an air-cooled system that simplifies installation and maintenance. Air comes in through the rear and out the side vents.

In ideal conditions, the Manitowoc RNF1100A ice maker produces as much as 1,078 pounds of ice. If the operating temperatures are too high, it makes closer to 825 pounds of ice per day. The exterior is made of strong stainless steel to hold up against dents and scratches, and its high-load bearings require virtually no maintenance. To streamline installation, this unit is operated with a self-contained condenser.

Product Details

• 1,078-lb. maximum daily ice production
• 825-lb. AHRI-certified daily ice production
• Makes nugget ice
• Air cooled
• Self-contained condenser cools with R404A refrigerant

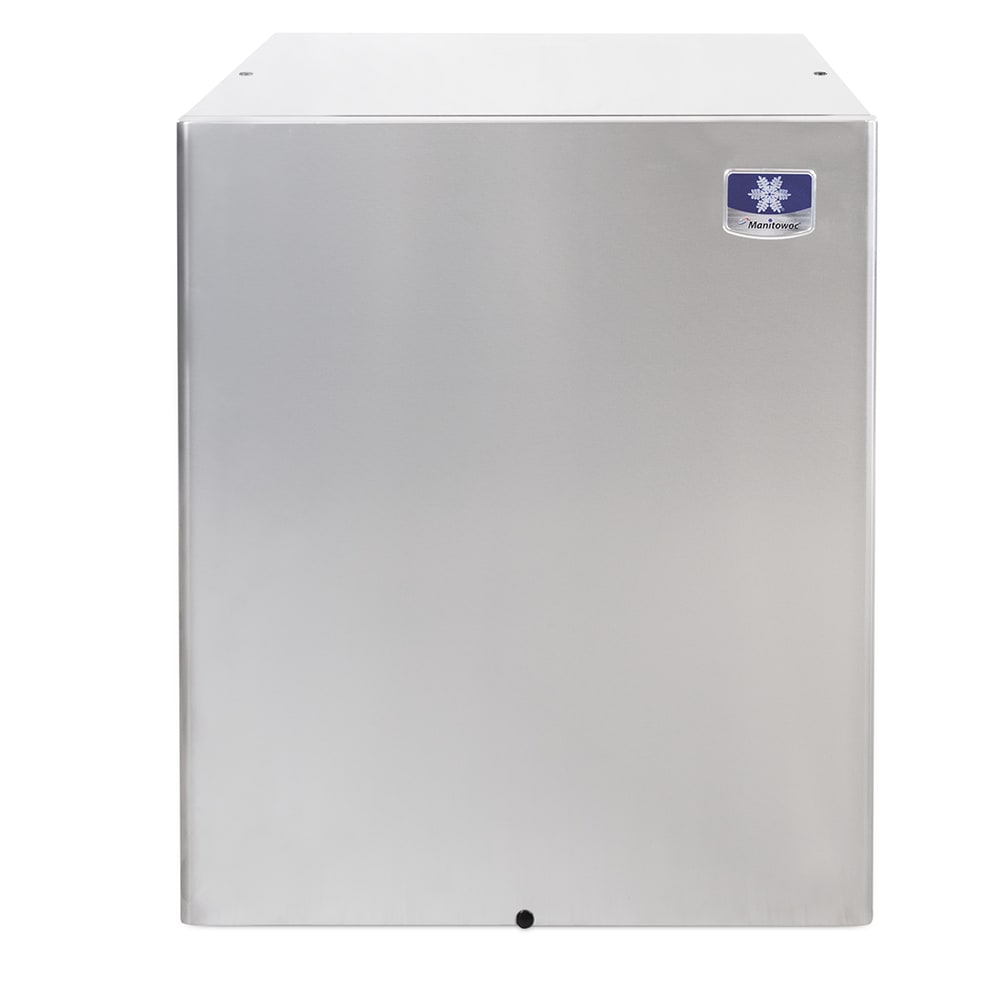

• Corrosion-resistant stainless steel finish
• High-load stainless steel bearings
• Durable evaporator for high-volume use

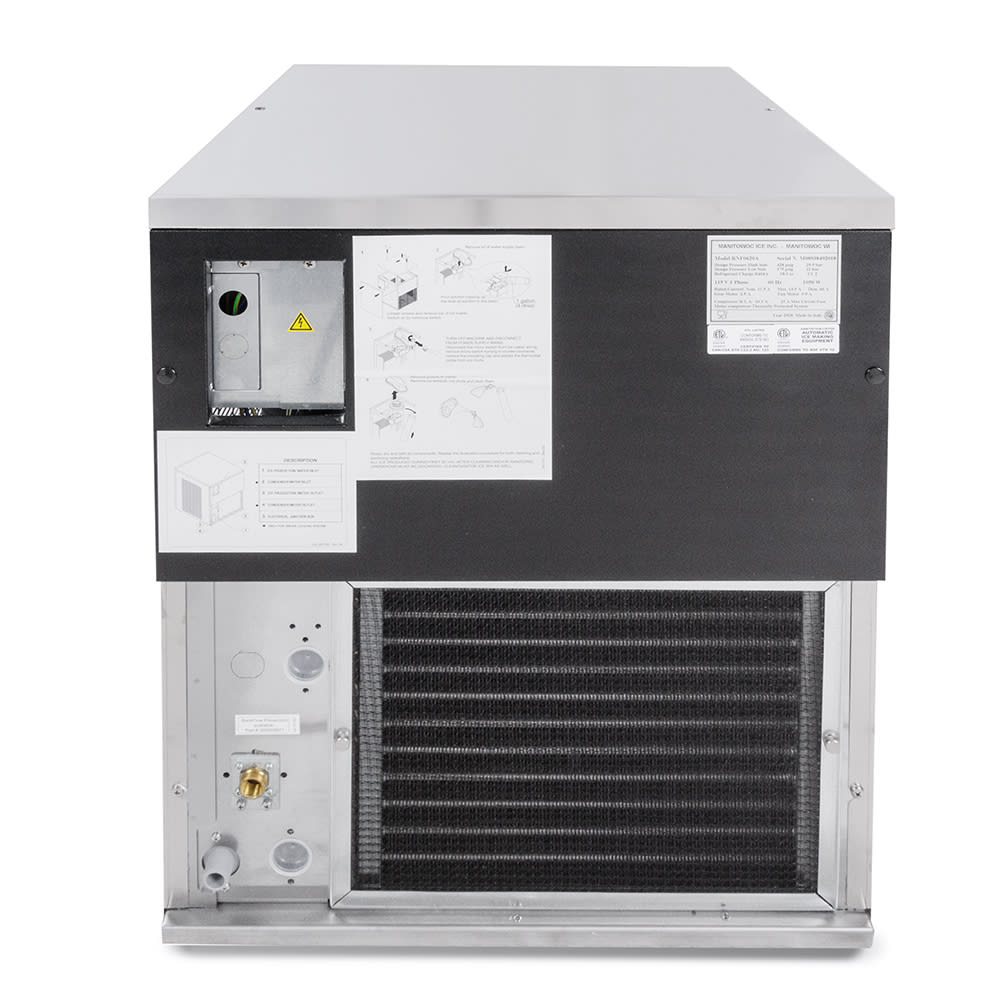

• Rear air intake
• Bin sold separately
• Ideal incoming air temperature: 50-100 degrees F
• Ideal incoming water temperature: 45-90 degrees F
• Ideal incoming water pressure: 20-70 PSI
• 7,500-BTU heat transfer capacity

Dimensions & Utilities

• 30 in. W x 23.62 in. D x 27.4 in. H
• 14.2 A, 5.41 kW, 1.5 HP
• 208-230 V/60 Hz/1 ph

From The Manufacturer

Ice Maker, nugget style, air-cooled, self-contained condenser, 30″W x 23-5/8″D x 27-3/8″H, production capacity up to 1078 lb/24 hours at 70°/50° (825 lb AHRI certified at 90°/70°), bite size nugget, high-load stainless steel bearings, stainless steel exterior, R404A, 1-1/2 HP, NSF, cULus

*Image may not depict product color, inclusions or accessories.
