Description
Manitowoc Ice UDP0240A Description

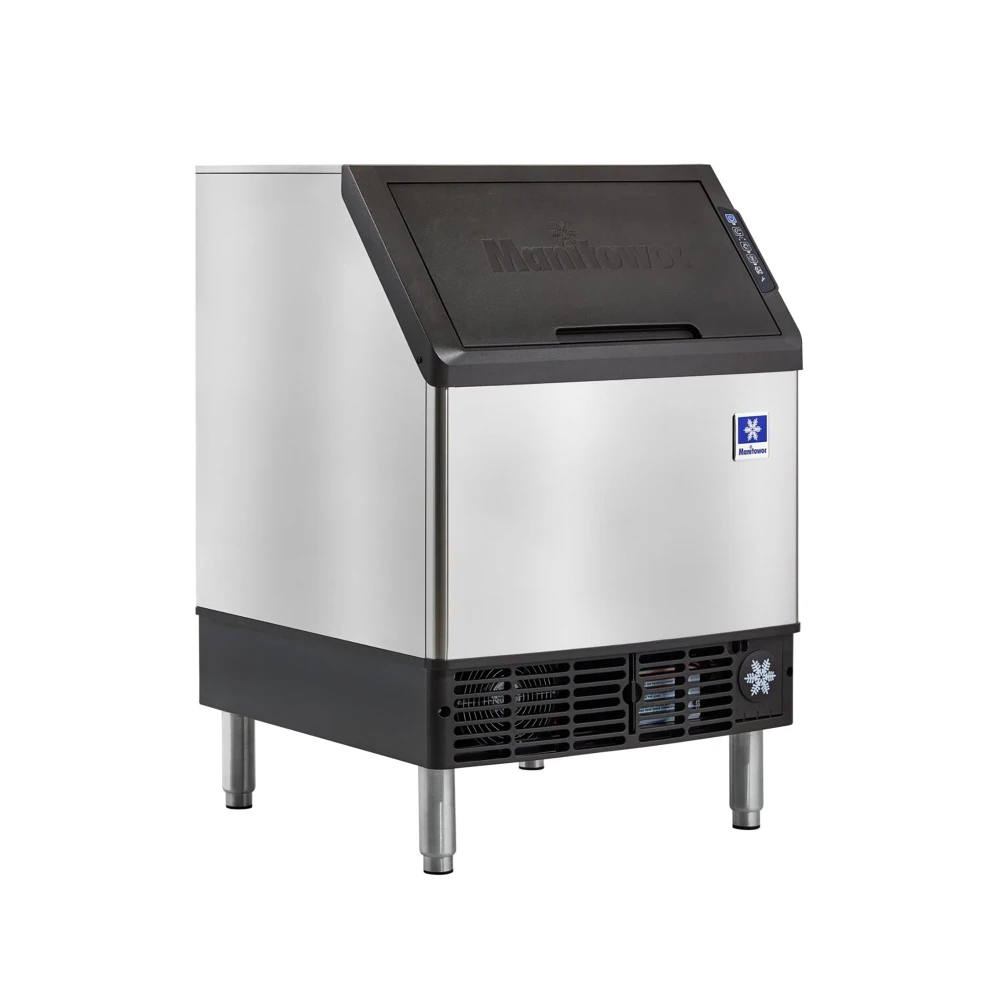

Built with a front-venting layout and compact body, the Manitowoc Ice UDP0240A NEO® full cube undercounter ice machine fits below standard countertops while producing up to 240 pounds of dice-style ice every 24 hours. This 26-inch-wide model stores 90 pounds of ice in its insulated bin and includes a forward-sliding design to provide access to internal components. This unit features a lift-up front door and an onboard 5-micron water filtration system to enhance ice clarity and support long-term performance.
The Manitowoc Ice UDP0240A NEO full cube undercounter ice machine uses a self-contained, air-cooled refrigeration system powered by a 1⁄2-horsepower compressor. Its front-breathing design supports installation alongside or beneath other equipment. A touchpad control panel includes indicator lights for filter replacement, full bin, cleaning, and service needs. The unit connects to a gravity drain.
Product Details
- From the NEO series
- Undercounter configuration
- Produces full cube (dice-style) ice
- Up to 240 lbs. ice production per 24 hours
- 197 lbs. AHRI-certified production at 90 degrees/70 degrees F
- Touchpad control panel with on/off button
- Delay mode
- Clean cycle button
- Full bin indicator light
- Filter change indicator
- Integrated 5-micron water filtration system
- Gravity drain connection
- Includes 6-in. adjustable legs
Ice Bin
- 90-lb. storage capacity
- Insulated interior
- Removable bin
- Forward-sliding access
- Lift-up front bin door
Refrigeration System
- Air-cooled condenser
- Self-contained
- R290 hydrocarbon refrigerant
- Ambient operating range: 50-100 degrees F
- Water temperature range: 45-90 degrees F
Dimensions & Utilities
- 26 in. W x 28 1⁄2 in. D x 38 1⁄2 in. H
- 7 A, 1⁄2 HP
- 115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
