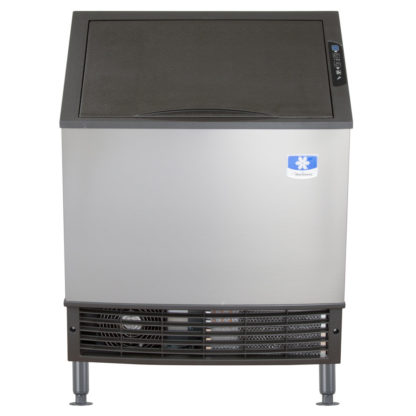

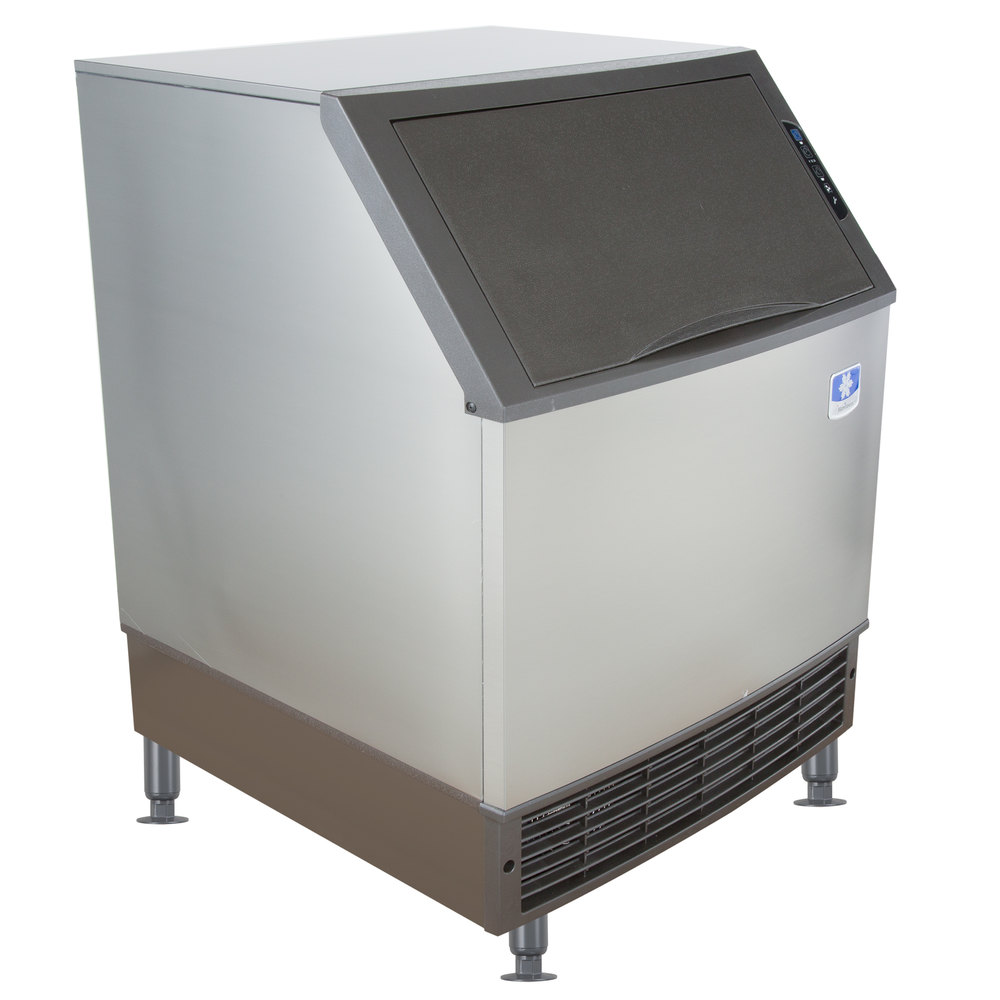

Manitowoc UDF0140A-161B Air Cooled Undercounter Full Cube Ice Maker


  • Produces up to 135 lb. of ice per day and stores up to 90 lb.
  • Produces 7/8″ x 7/8″ x 7/8″ dice cubes
  • Pop-out air filter and removable bin for quick cleaning and maintenance
  • Simple, intuitive control and indicator panel
  • Easy-access door slides up and out of the way
  • 6″ legs
  • 115V

Plant Based Pros is an Authorized Retailer of Manitowoc products.

Items purchased from Plant Based Pros:

  • Are brand new and in original packaging.
  • Are covered by the full manufacturer warranty.
  • Qualify for manufacturer service and support.
  • Questions? Call  800-522-0517

Out of stock


This Manitowoc UDF0140A-16B NEO 26″ air cooled undercounter dice cube ice machine combines optimum ice production and user-friendly controls in a space-saving undercounter package.

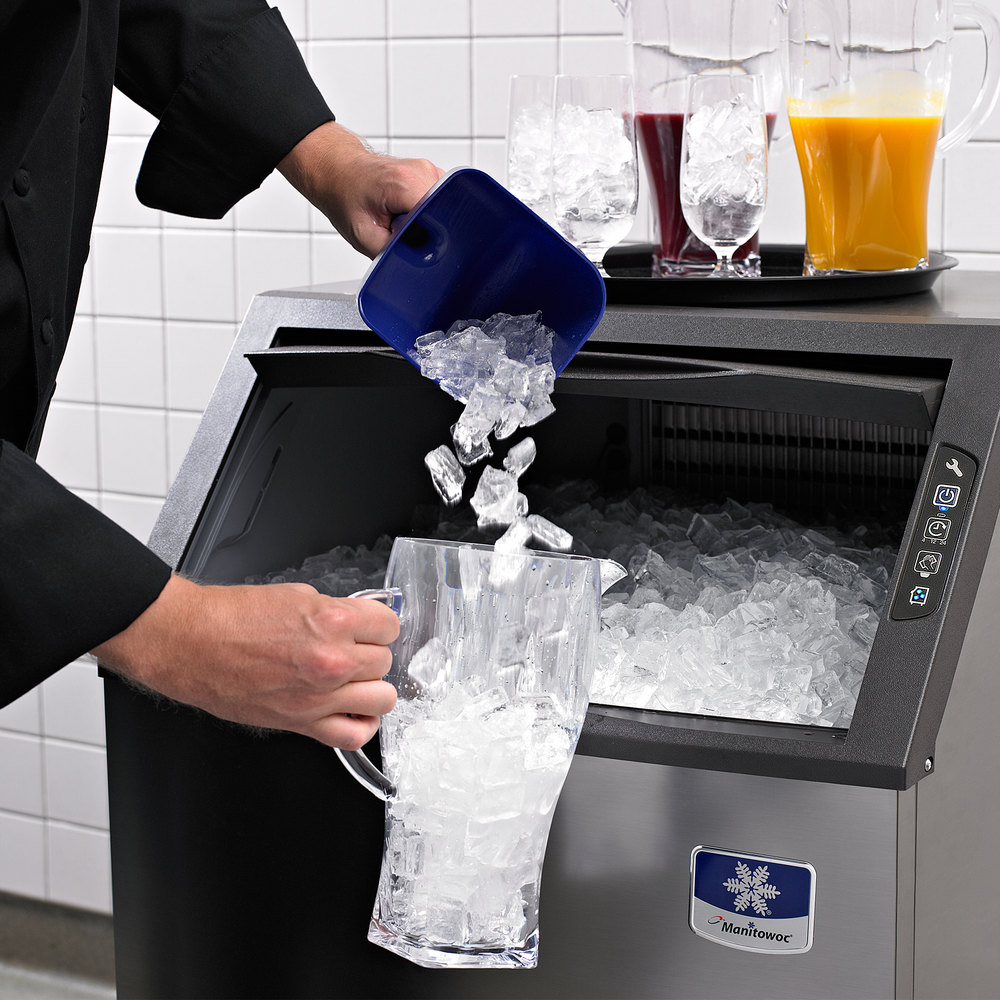

Make and store ice in one compact machine with this Manitowoc undercounter ice machine. This air cooled ice machine combines impressive ice production, user-friendly controls, and simple maintenance in a space-saving undercounter package. With a wide range of features, from an LED push pad control panel, to an ergonomic scoop with a comfort grip handle/ holder that can be mounted on either side of the machine, this ice cube machine is perfect for any commercial kitchen, banquet hall, or hotel.

90 lb. Bin Capacity

Ideal for making ice in small volume applications or as a supplement to a larger ice machine, this unit boasts an ample, 90 lb. capacity bin with an angled door that slides up and out of the way for easy access. It can produce up to 135 lb. of dice cube ice per day.

Intuitive Controls

A push pad control and indicator panel boasts universally recognizable display icons that show you when the power’s on, the bin’s full, service is needed, and when there’s a clean cycle in progress. There’s even a “delay” button that halts ice production for 4, 12, or 24 hours, making it perfect for operations that are only open for portions of a day!

Ergonomic Design

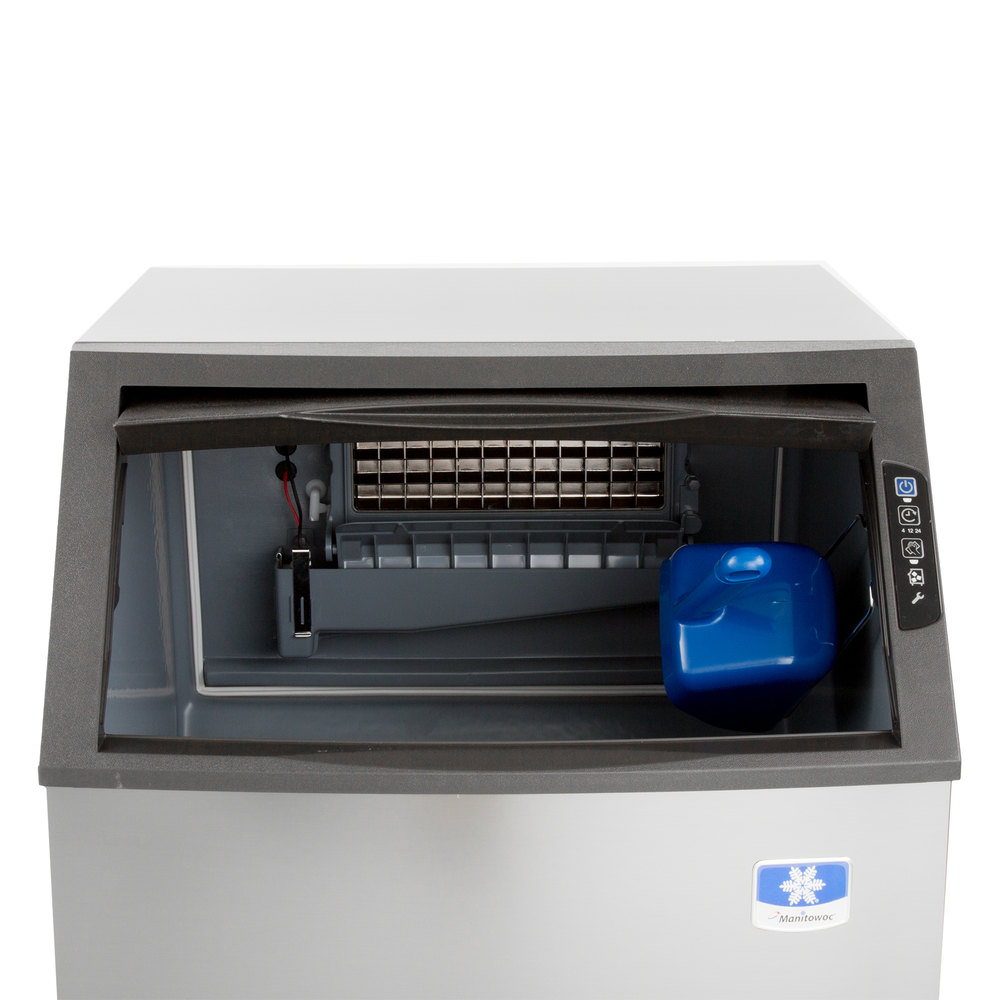

The control panel buttons are brightly illuminated by LED lights and placed on the slanted bin front so that you can easily press and view them without having to bend over. The machine’s air filter is designed for simple, tool-free removal for quick access during routine cleaning and maintenance, while the bin can be easily removed for full access to the machine’s interior components during more thorough cleaning and maintenance.


ManufacturerManitowoc Ice
Model No.UDF0140A-161
24 Hr. Production (Lbs)135 lbs
Dimensions (W x D x H) (in.)26″ x 28.5″ x 38.5″
Ice TypeFull Cube
Specialty OptionsDigital Controls
Bin Capacity90 lbs
Warranty3-yr. Parts & Labor, Add’l 2 yrs. Evaporator;
Add’l 2 yrs. Parts Compressor
Compressor TypeAir Cooled
Electrical (Voltage/Hertz/Phase)115/60/1
Shipping Weight (lbs.)153.00


Additional information

Lift Gate

No Lift Gate, Lift Gate Required
