Manitowoc Ice UYF-0310A-161B Details

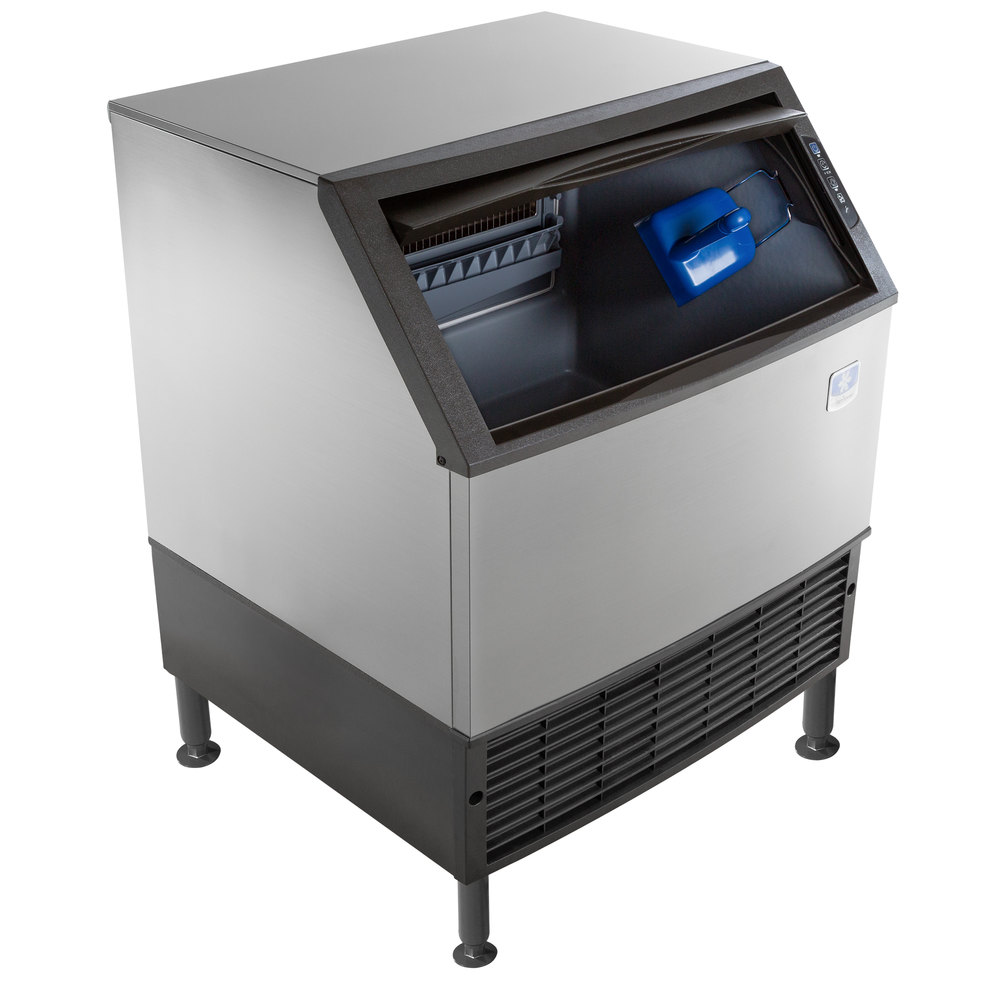

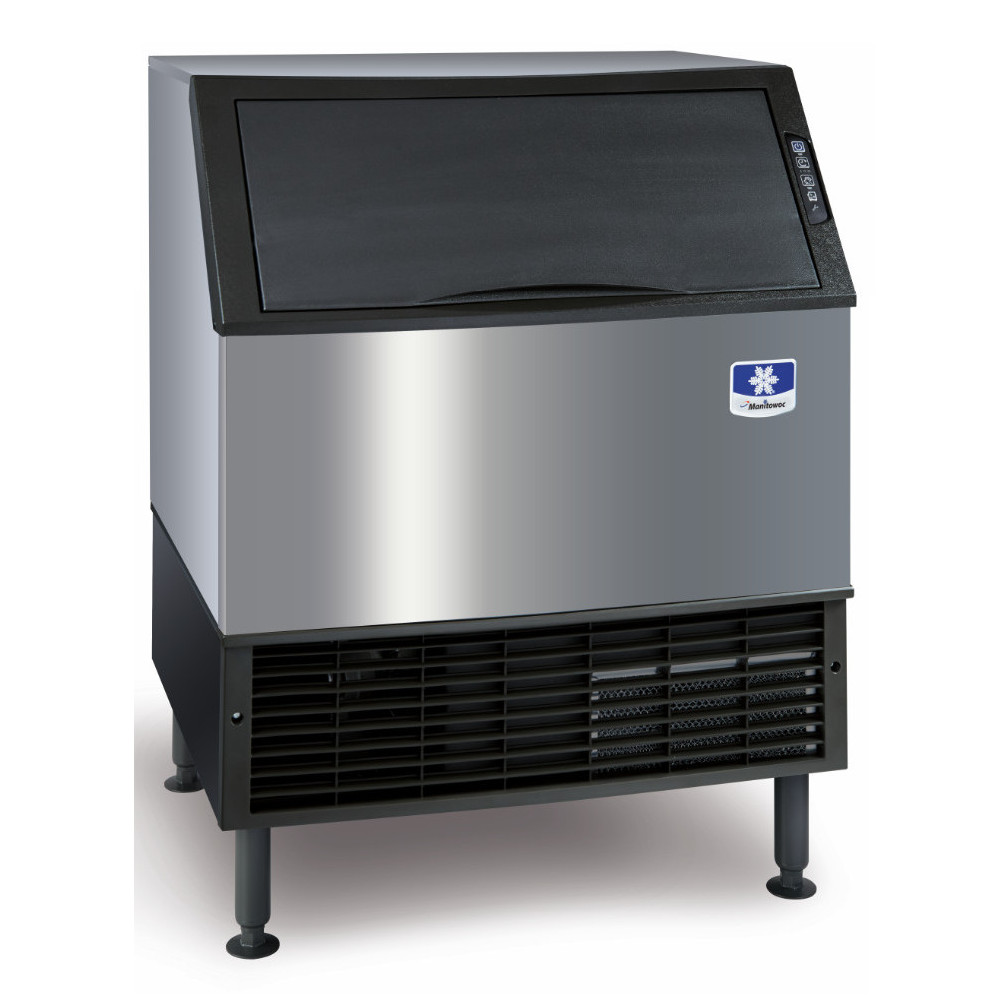

This Manitowoc UYF-0310A-161B NEO air cooled undercounter ice machine combines optimum ice production and user-friendly controls in a space-saving undercounter package! Ideal for making ice in medium volume applications or as a supplement to a larger ice machine, this unit boasts an ample, 119 lb. capacity bin with an angled door that slides up and out of the way for easy access. It can produce up to 295 lb. of full size dice cube ice per day. Intuitive controls and service indicators allow versatile yet hassle-free operation, making it easier to train your staff on the machine. For quick cleaning and maintenance, this unit features several parts that are removable without tools, including its pop-out air filter and ice bin that is attached with hand screws. Plus, its 6″ legs make it easy to clean underneath the machine.

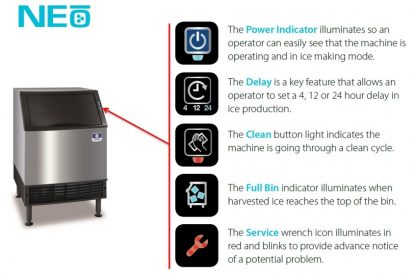

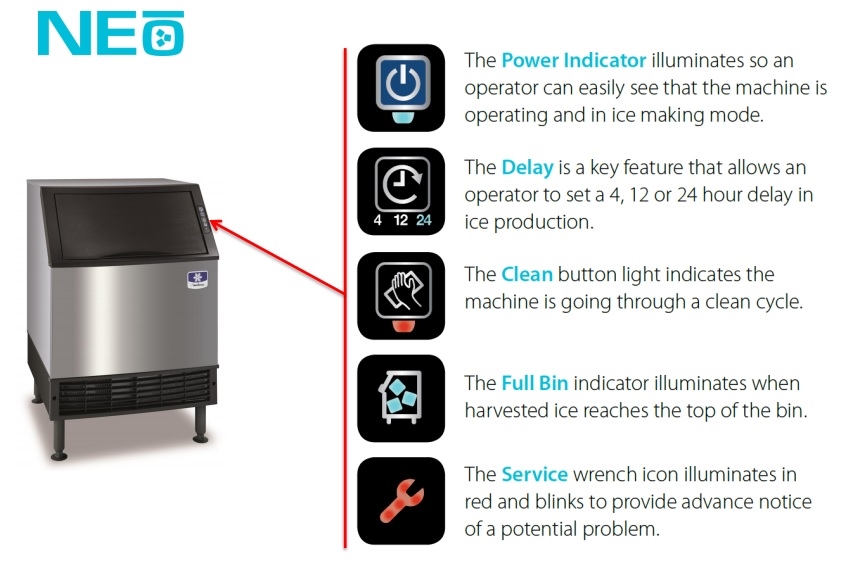

The Manitowoc NEO UYF-0310A is an undercounter ice machine that has truly revolutionized the ice machine world. It is designed to be better than previous undercounter ice machines, using 25% less water and 10% less energy than previous undercounter ice machines. The NEO combines some of the technology found in Manitowoc’s Indigo ice machines with the compact convenience of Manitowoc undercounter ice machines. The NEO is equipped with a Delay Feature so users can delay ice making for 4, 12, or 24 hours to keep the ice machine dormant while your business is not in operation. The Service Wrench Indicator illuminates in red when your ice machine faces issues, giving you an advance notice when your machine may require service. Even the scoop has been modified to make scooping ice easier and more productive. The UYF-0310A makes up to 290 pounds of dice cubes in a 24 hour period, and the self-contained bin can store up to 119 pounds of ice. The UYF-0310A measures 30 inches wide and stands 38.5 inches tall on 6 inch attached legs.

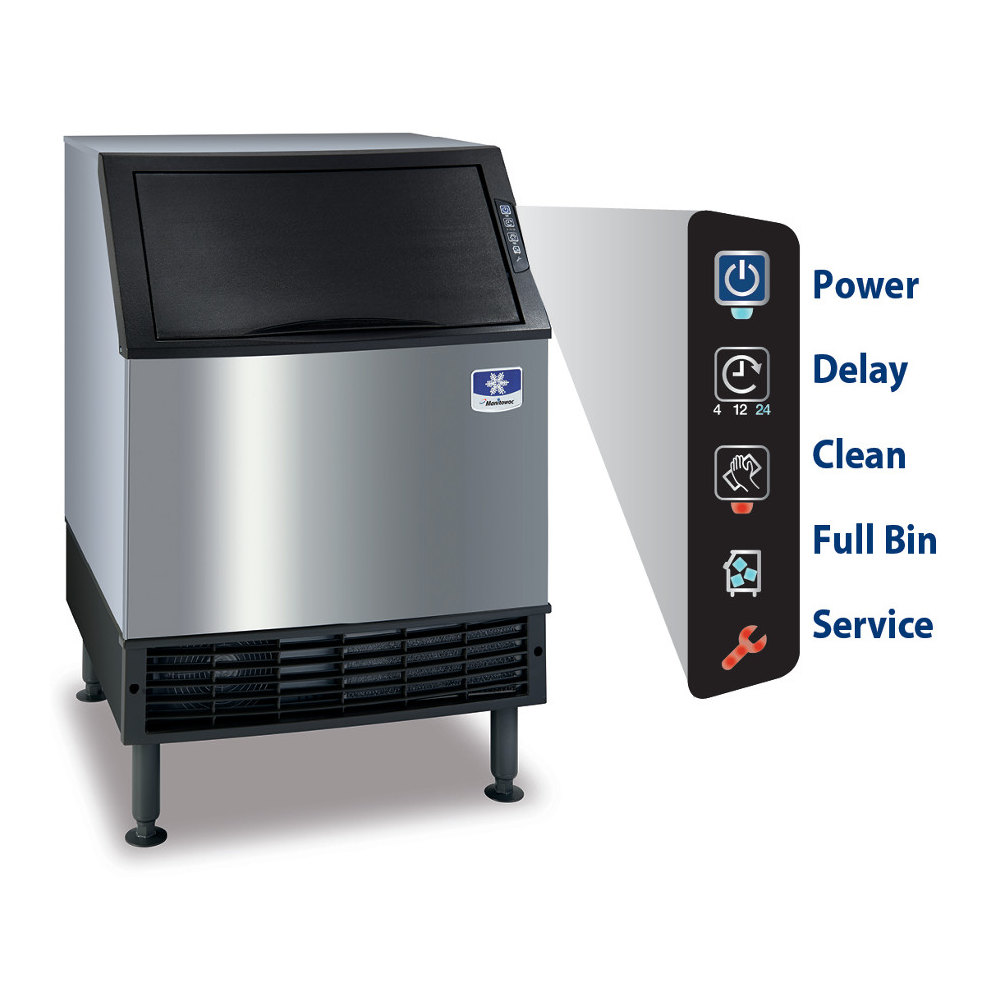

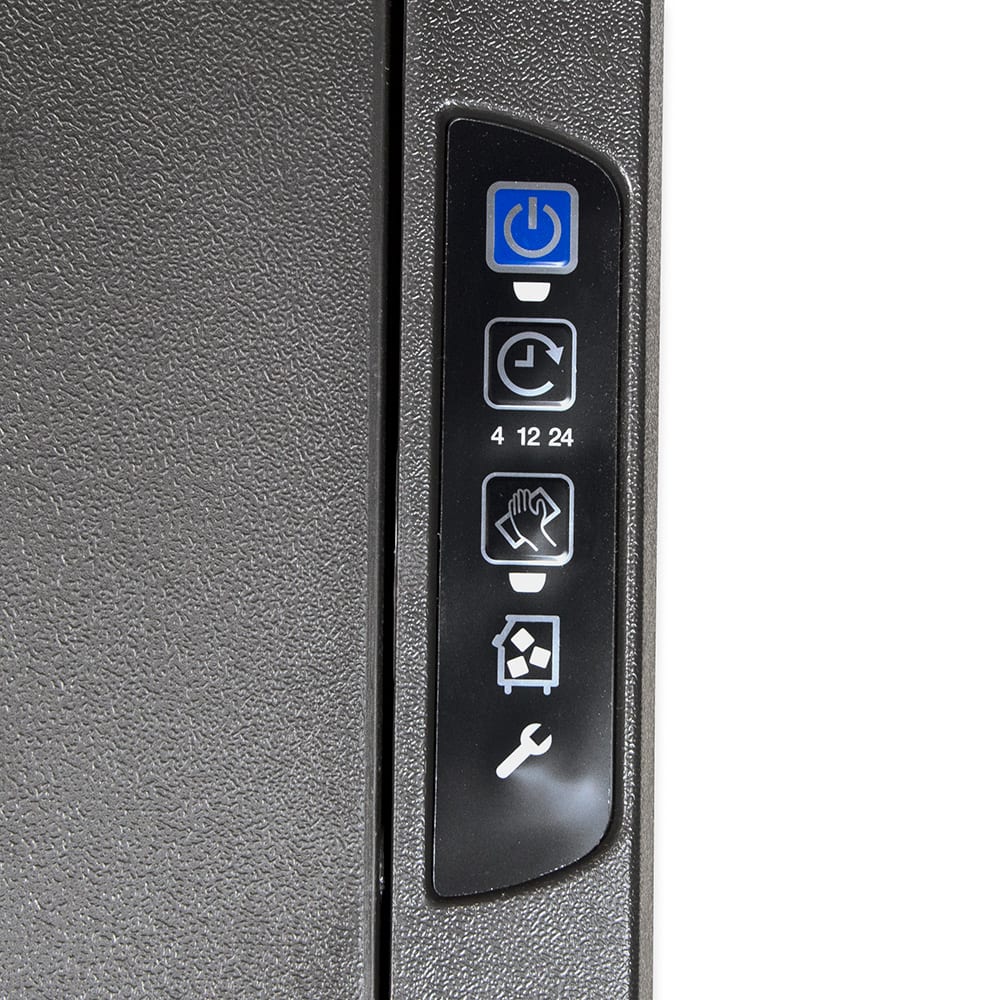

A front air intake and exhaust design allows this unit to be placed next to other pieces of equipment and in tight spaces. Simple controls such as, “Power”, “Delay”, and “Clean” allow for you to customize when the machine is running and when it is stopped. This ensures that you are not wasting water and energy but having the machine running during slow periods and times when you are closed. Indicators inform you when your bin is full or when it is in need of servicing. This unit requires a 115V electrical connection for operation.
This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.
This item complies with the standards imposed by the Conformance European (CE), a division of the Intertek group.
Energy Star Qualified
This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.
ETL US & Canada
This item meets the electrical product safety standards imposed by the ETL, a division of the Intertek Group, for use in the United States and Canada.
ARI / AHRI
This certification is awarded by the Air-Conditioning, Heating, and Refrigeration Institute to denote products of exceptional performance.
This unit comes with a NEMA 5-15P plug.
|24 Hr. Production (lb)||290|
|Also Known As||UY-0310A|
|Ice Type||Half Cube|
|Bin Capacity (lb)||100|
|Warranty||3-yr. Parts & Labor, Add’l 2 yrs. Evaporator; Add’l 2 yrs. Parts Compressor|
|Compressor Type||Air Cooled|
|Production Range (lb/day)||200 – 299 lbs|
|Bin Capacity Range (lb)||100 – 199|
|Width (in) Range||25 – 29|
|Product||Undercounter Ice Maker|
|Product Type||Ice Makers & Bins|
|Special Features||Digital Controls|
