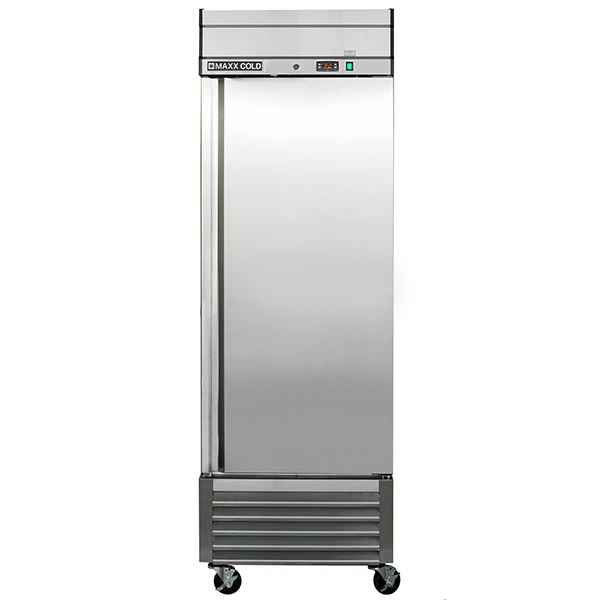

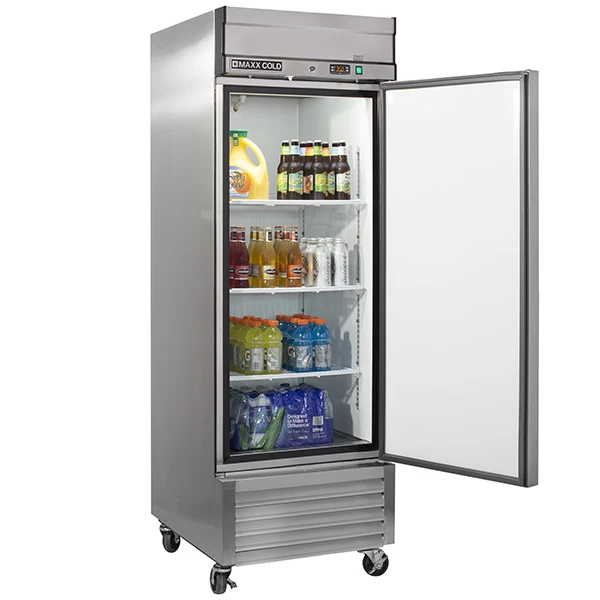

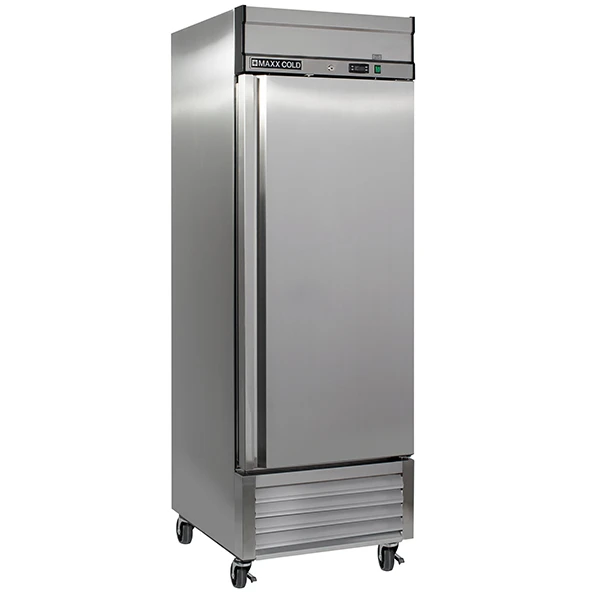

Maxx Cold MXSR-23FDHC Reach-In Refrigerator, Single Door, Bottom Mount


  • Stainless steel exterior and painted aluminum interior
  • CFC-free polyurethane foam insulation
  • 3 heavy-duty, adjustable, PE coated wire shelves per section hold full size sheet pans
  • Self-closing doors with locks
  • 4” diameter swivel casters with (2) front brakes
  • Utilizes environmentally friendly R-134A refrigerant
  • Bottom mount compressor
  • Automatic defrost system
  • Digitally controlled temperature system maintains optimum temperature and LED display is easily viewed from exterior
  • Storage capacity of 19.3 Cubic Ft. (547 L)
  • Holding temperature 34°F to 40°F (2⁰C to 5⁰C)
  • Available in 110V/60Hz

Plant Based Pros is an Authorized Retailer of Maxx Cold products.
Items purchased from Plant Based Pros are:

  • Brand new and in original packaging.
  • Covered by the full manufacturer warranty.
  • Qualified for manufacturer service and support.
  • Questions? Call 800-522-0517


Maxx Cold reach-in refrigerators are constructed from stainless
steel, engineered with digital controls and polyurethane insulation
for optimal tempterature control and easy maintenance. Available
in 1 and 2 door configurations, each model features recessed
handles, door locks and PE coated wire shelving with storage
space for full size sheet pans.

• Stainless steel exterior and powder coated aluminum interior
• Heavy-duty self-closing doors with full-length handles
• Extra thick environmentally safe, CFC-free polyurethane foam
• Interior lighting and cooling air fans are controlled by an
automatic on-off door switch
• Door locks and password protected solid state digital
temperature controls for security
• Programmable automatic defrost system keeps the unit at
peak operating condition and prevents evaporator icing
• Forced-air system delivers effective air circulation and rapid
temperature recovery
• 2.75” diameter swivel casters (2 with brakes) come standard
• Height allows the unit to pass through an 80” high doorway
• Integral condensate evaporator eliminates need for a floor
drain connection
• Self contained heavy-duty forced air refrigeration system for
even temperature regulation
• Heavy-duty cam rise self-closing hinges open to almost 180°
• Three (3) heavy-duty corrosion-resistant poly-coated shelves
per door, with adjustable mounting clips
• Bottom mount utility compartment delivers easy service

Holding temperature…………………. 33°F to 41°F (1°C to 5°C)

Model Dimensions (W x D x H)
  • 27” (686mm) W x 33.3” (846mm) D x 83.5” (2121mm) H
Model Weight
  • 280 lbs (127 kg)
