Meadows 8″ stone burr mills are available in three configurations, all available on this page:

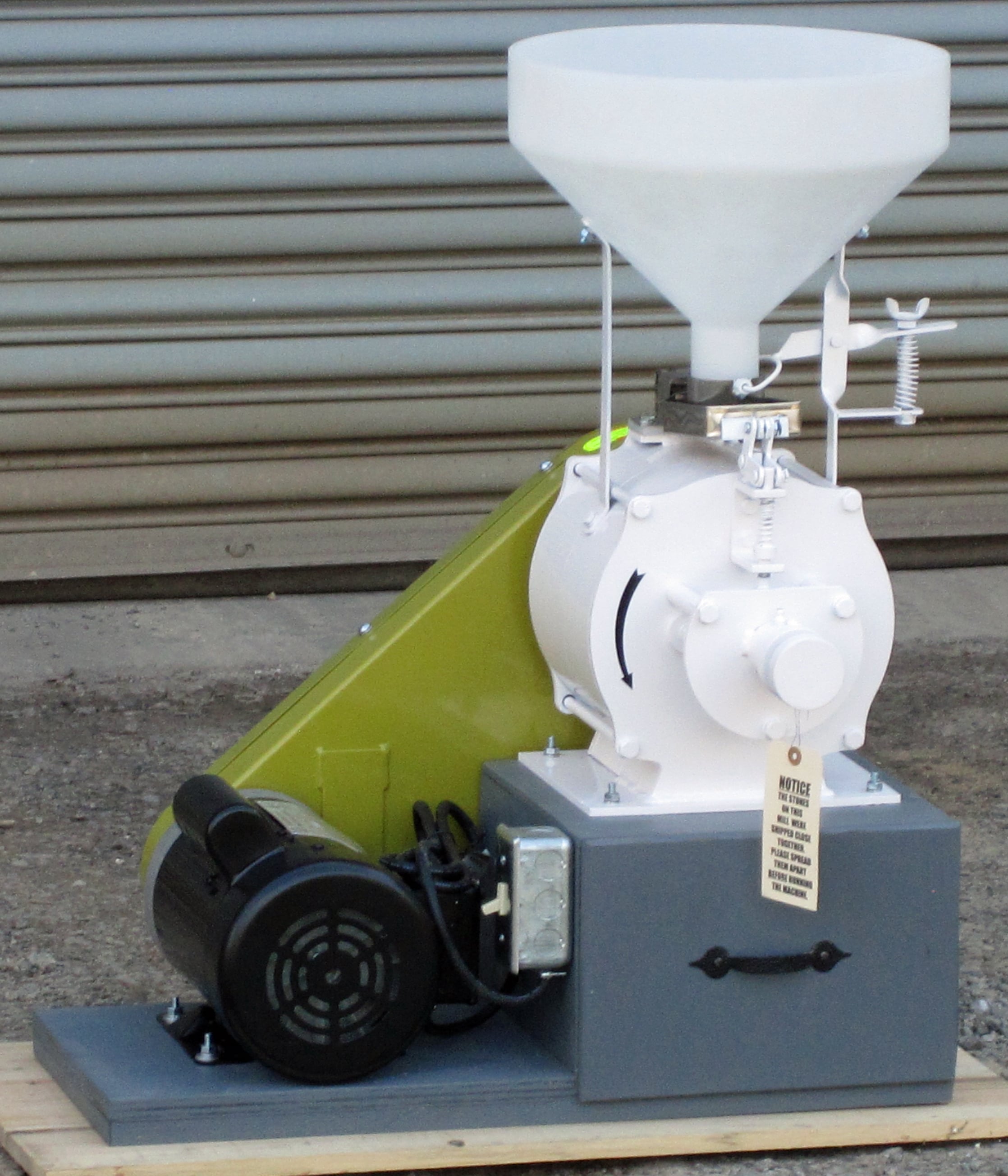

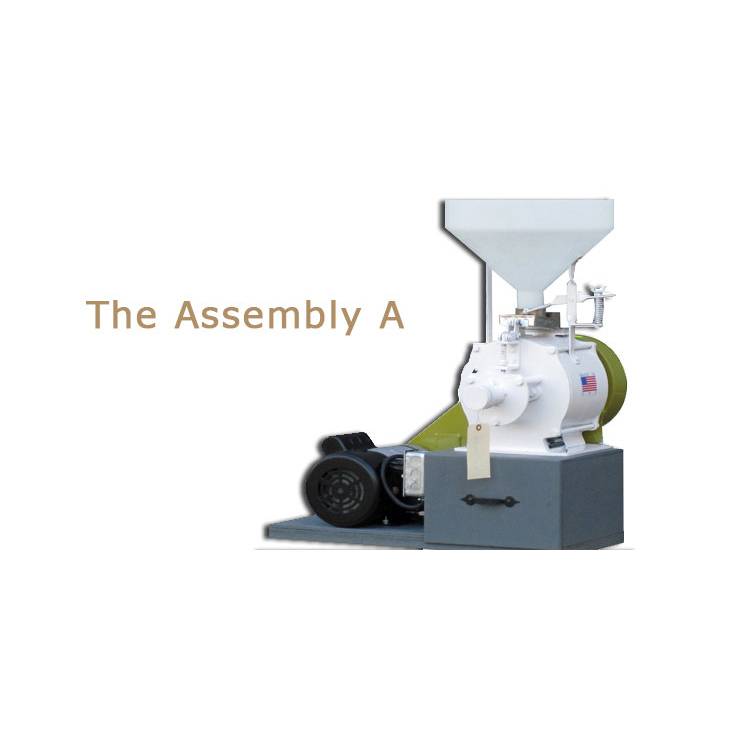

- Assembly A is mounted on a compact wood base. Assembly A features bottom discharge. Grain drops into a wood drawer with 6 qt. capacity.

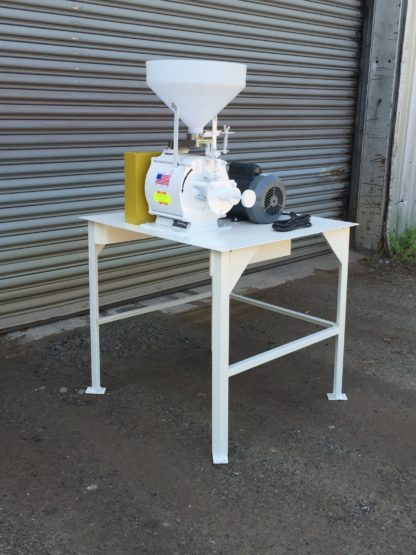

- Assembly C is mounted on a steel table
- Assembly MH is sold without mouting base, motor or pulleys.
The Meadows 8″ stone burr mill will grind any free-flowing grain into fine whole grain flour, or adjust to crack grain for cereal or Southern style grits, as well as producing any texture between. Meadows mills are simple to operate and built for extremely long life. The stones of the 8″ mill turn at 875 RPM for a cool grind that preserves full nutrition and best taste in the flour. These are commercial mills and have been in use for decades in the U.S. and worldwide. This style of mill is also known as a grist mill.

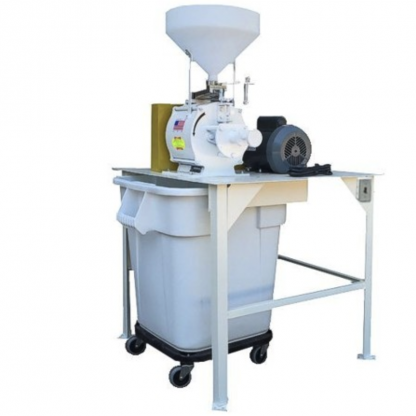

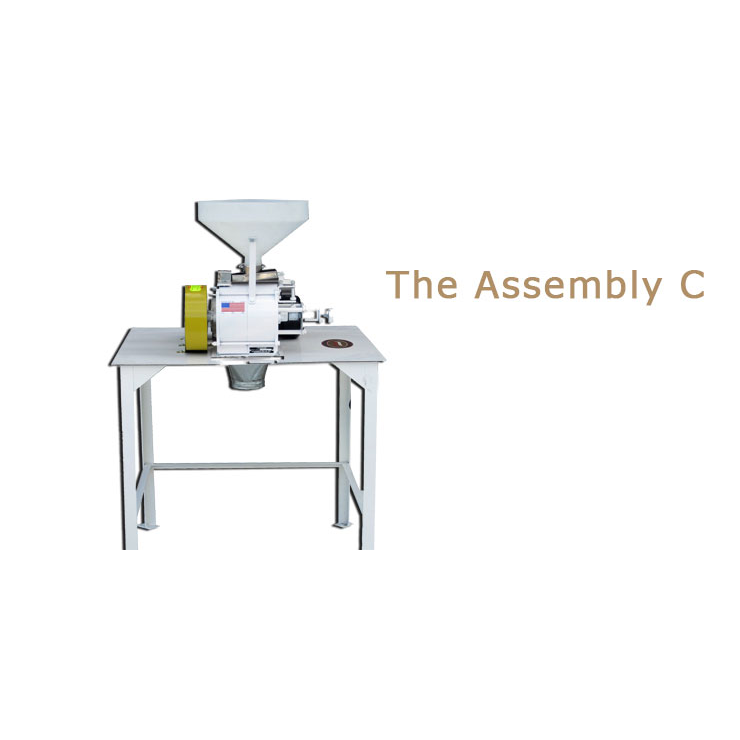

Assembly C is the most popular configuration of Meadows 8″ mill and features a 6″ x 5″ discharge outlet opening that is surrounded by a wraparound steel frame sized to fit a 28 gallon Brute container. This feature allows the operator to slide the Brute container on a dolly in and out and helps protect flour from airborne contamination after the milling process.

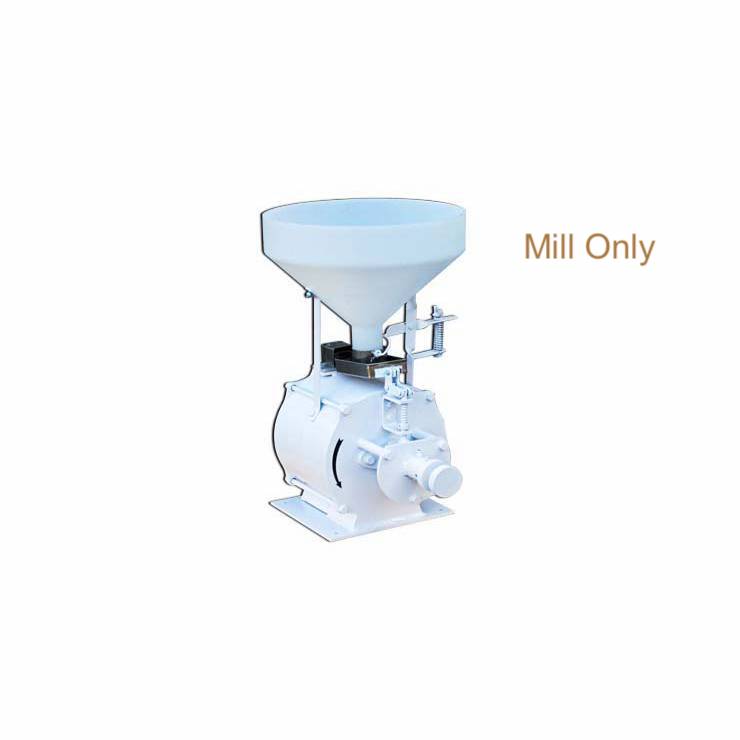

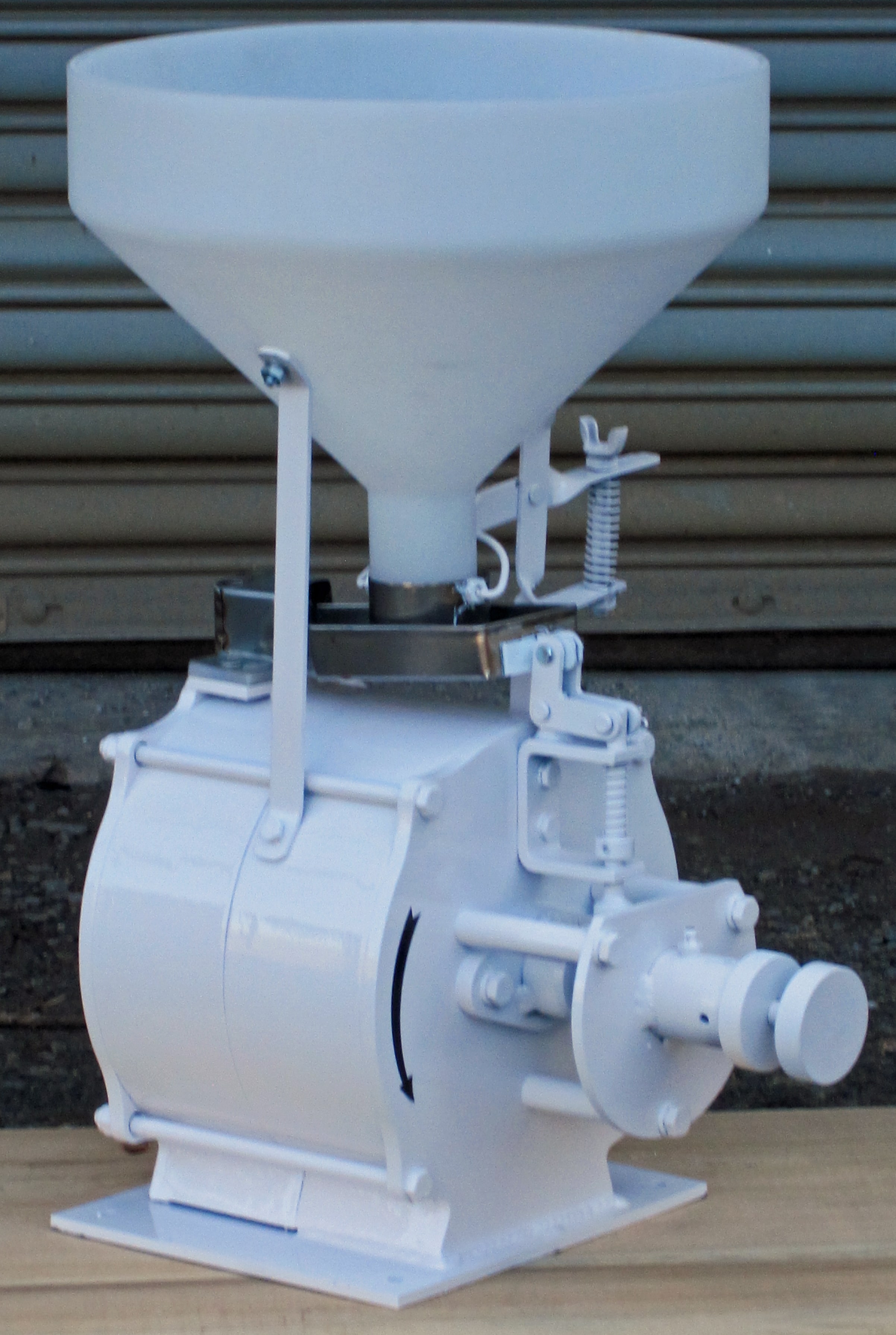

Assembly MH mill has bottom discharge. This configuration includes only the mill and hopper. No motor or pulleys or stand are included. The Assembly MH allows you to provide your own power source. Motor must be driven at 875 RPM. Input shaft is 3/4″ diameter.
All 8″ Meadows mills have a grinding speed of 50 lbs/hour wheat, 60 lbs/hour corn (faster for coarser grinds). The 7 quart hopper can be fed from your self-supported overhead bin if you wish. Meadows mills are made in USA with native North Carolina granite stones. Most users get lifetime use from the original stones.
“The Meadows 8” mill is faster and easier to operate than stone burr mills I’ve used before. It’s been completely reliable, it’s easy to adjust and runs smooth as a dream. We’re grinding corn and wheat and cleanup is easy. It’s well made and I recommend it without hesitation.”
– Gregory B., TX
Assemblies A and C are available with two motor options: The 1HP model has a 75% duty cycle and comes pre wired with On/Off switch, power cord and Nema 5-20p plug end ready to plug into your 120V outlet. A 75% duty cycle means that out of each hour, the mill will grind for 45 minutes, then requires a 15 minute cool-down. The 2HP -220V model has a 100% duty cycle so it can operate continuously. The 2HP model is sold with an On/Off switch, power cord and Nema 6-20p plug and a Nema 6-20r receptacle. The receptacle, if needed, will require a qualified electrician.
MEADOWS STONE BURR GRAIN MILLS
|Mill Model||Capacity in Lbs/Hour|
|8 inch, Assembly C (1 HP/2HP)||100 – 200||50 – 100|
|8 inch, Assembly A (1 HP/2HP)||100 – 200||50 – 100|
|8 inch, Assembly MH (1 HP/2HP)||100 – 200||50 – 100|
|12 inch Standard (5HP/3-phase)||220 – 440||110 – 220|
|12 inch Standard (5HP/1-phase)||220 – 440||110 – 220|
|20 inch Standard (10HP/3-phase)||600 – 800||300 – 600|
|30 inch Standard (25HP/3-phase)||1100 – 2000||550 – 1000|
|30 inch Standard (30HP/3-phase)||1150 – 2100||575 – 1050|
|30 inch Standard (40HP/3-phase)||1250 – 2250||625 – 1125|
Pricing is FOB. Please call (800-522-0517) or e-mail (firstname.lastname@example.org) with your Zip Code for a shipping quote. Crating for shipment is $100 in addition to shipping cost.
For overseas use we can configure your Meadows 8″ stone burr mill with a motor to meet any electrical requirement. (Cost may vary, please call or email for a quote.) Stone Burr Mills shipped outside the U.S. are shipped unwired and require switch and wiring provided by local qualified electrician.
