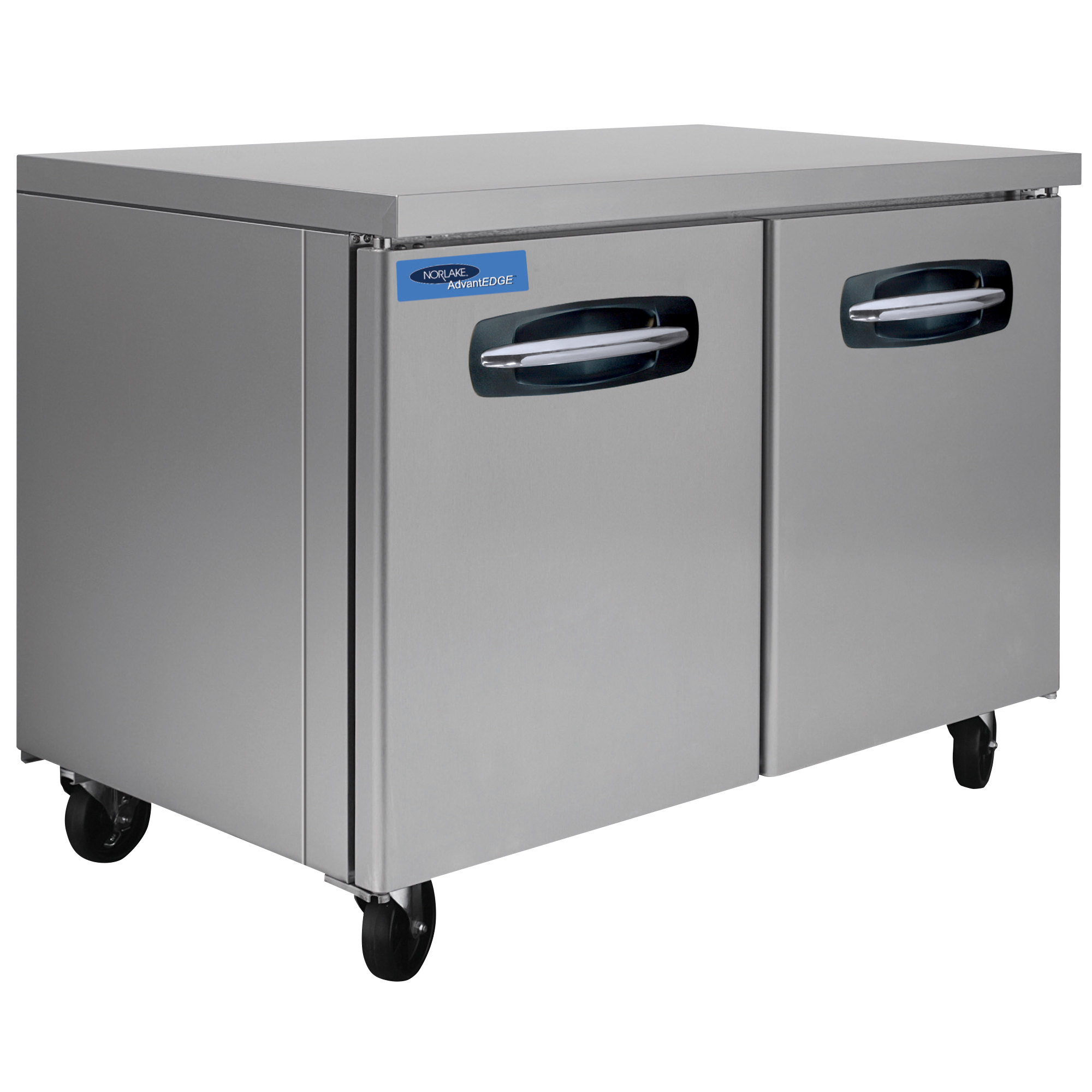

NLUF48A AdvantEDGE Two Door Undercounter / Worktable Freezer


  • Standard condenser filter screen, removable without tools, for easy condenser coil cleaning resulting in peak efficiency and extended equipment life
  • Front-breathing design allows for zero-clearance installation on sides, back and top
  • Air cooled condensing unit
  • Automatic condensate vaporizer
  • Automatic defrost
  • Capillary tube system
  • Casters
  • Curved handle with recessed pocket
  • Magnetic gaskets
  • Self-closing doors
  • Stainless steel interior and exterior
  • Temperature range: -5ºF to 0ºF
  • Vinyl coated shelves
  • UL, C-UL, ETL Sanitation listed, ADA compliant ***
  • Warranties: 3 year parts and labor, 5 year compressor


Ensure that your operation has ample frozen storage space by using this Nor-Lake NLUF48A AvantEDGE 48″ undercounter freezer. Sturdy and compact, the unit is designed for installation beneath a counter, allowing you to efficiently utilize your facility’s available space. Whether under the serving area or back-of-house prep table, the freezer houses 2 durable, vinyl-coated shelves for storing and organizing a variety of ingredients, from fries to fish to french cut green beans! The stainless steel interior and exterior ensure equipment longevity, so wherever the freezer is used, you can be sure that it’s rugged enough to withstand frequent, heavy use.

For easy interior access, the two solid doors feature handles that are mounted into recesses for a low profile. The doors are even self-closing to prevent energy loss from being left open after use. Plus, magnetic gaskets create a tight seal every time the doors close.

The freezer’s 1/2 hp refrigeration system uses R290 refrigerant to maintain foodsafe temperatures between -5 and 0 degrees Fahrenheit. Foamed-in-place insulation helps to both add structural integrity and maintain proper interior temperatures. Because the unit is front-breathing, the air is drawn in and pushed out at the front, eliminating the need for side, back, or top clearance during installation.

This particular unit is outfitted with casters, making it mobile for routine cleaning and service. It requires a 115V electrical connection for operation.

Overall Dimensions:
Width: 48″
Depth: 30″
Height: 36″
Capacity: 13.4 cu. ft.

Interior Dimensions:
Width: 44″
Depth: 23″
Height: 26 1/8″

Width48 Inches
Depth30 Inches
Height36 Inches
Interior Width44 Inches
Interior Depth23 Inches
Interior Height26 1/8 Inches
Amps6.1 Amps
Hertz60 Hertz
Access TypeDoors
Capacity13.4 cu. ft.
Compressor LocationRear Mounted
Compressor StyleFront Breathing
Door StyleSwing
Door TypeSolid
Hinge LocationLeft/Right
Horsepower1/2 HP
Made in AmericaYes
Number of Doors2
Number of Shelves2
Refrigerant TypeR-290
StyleCounter Height
Temperature Range-5 – 0 Degrees F
